日立零件查询（CG45）MISCELLANEOUS PARTS; INJECTION PUMP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
380 次

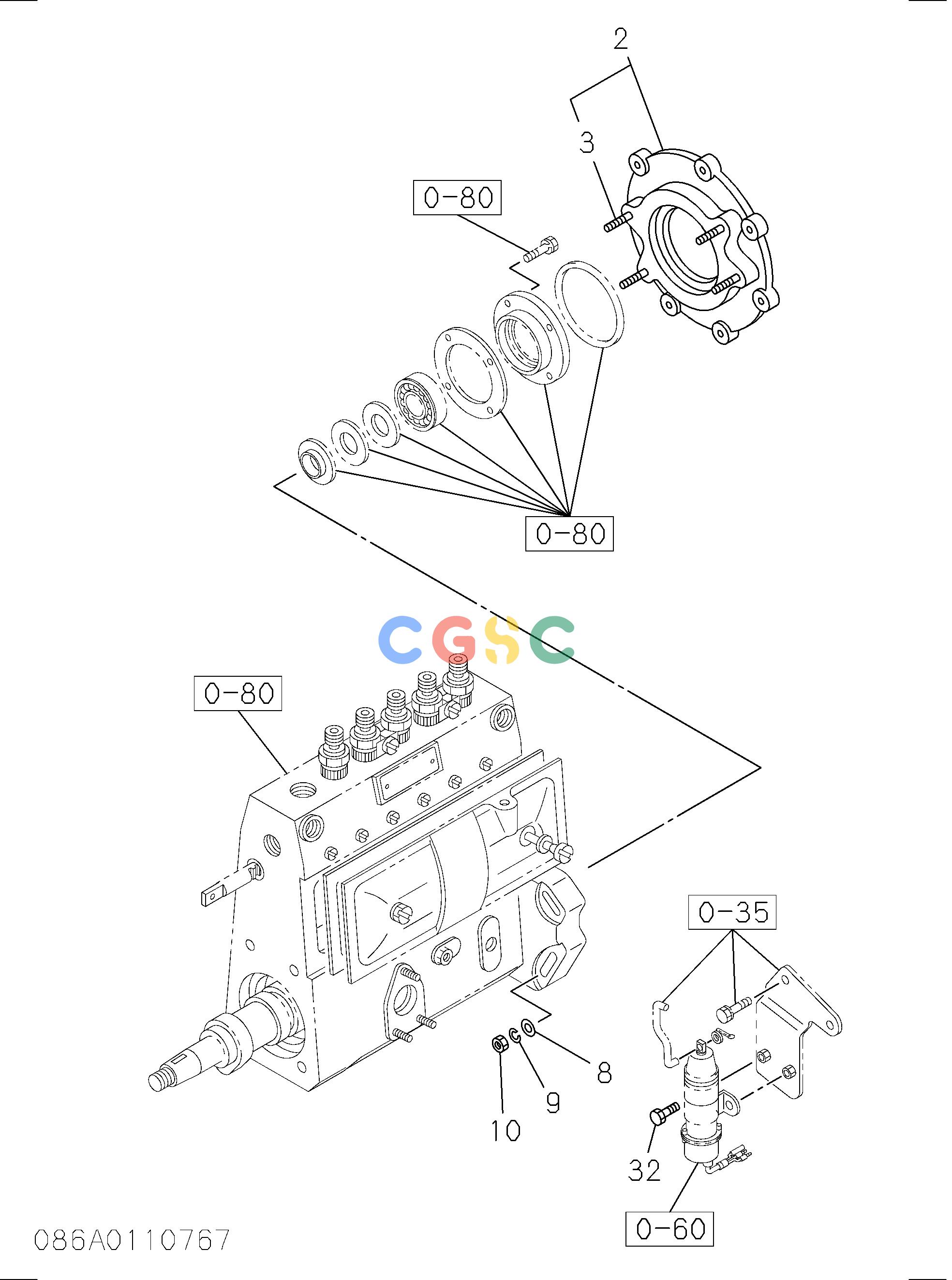

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 9197516010 | [1] | BRACKET; HSG & TIMER,INJ PUMP | |
| 2. | 1197510490 | [1] | BRACKET; HSG & TIMER,INJ PUMP | |
| 3. | 9041010300 | [4] | STUD; HSG BRKT,INJ PUMP | M10X30 L=45 |
| 3. | 9041010300 | [4] | STUD; HSG BRKT,INJ PUMP | |
| 8. | 9091645100 | [4] | WASHER; PL,HSG BRKT,INJ PUMP | |
| 8. | 9091645100 | [4] | WASHER; PL,HSG BRKT,INJ PUMP | |
| 9. | 9091506100 | [4] | WASHER; LK,HSG BRKT,INJ PUMP | |
| 9. | 9091506100 | [4] | WASHER; LK,HSG BRKT,INJ PUMP | |
| 10. | 5156390020 | [4] | NUT; HSG BRKT,INJ PUMP | |
| 10. | 5156390020 | [4] | NUT; HSG BRKT,INJ PUMP | |
