神钢零件查询(F4HFE613B B006) - ENGINE 5801731918 - 47519640 (2/14-) (10.414.AD) - FAN, PULLEY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
682 次

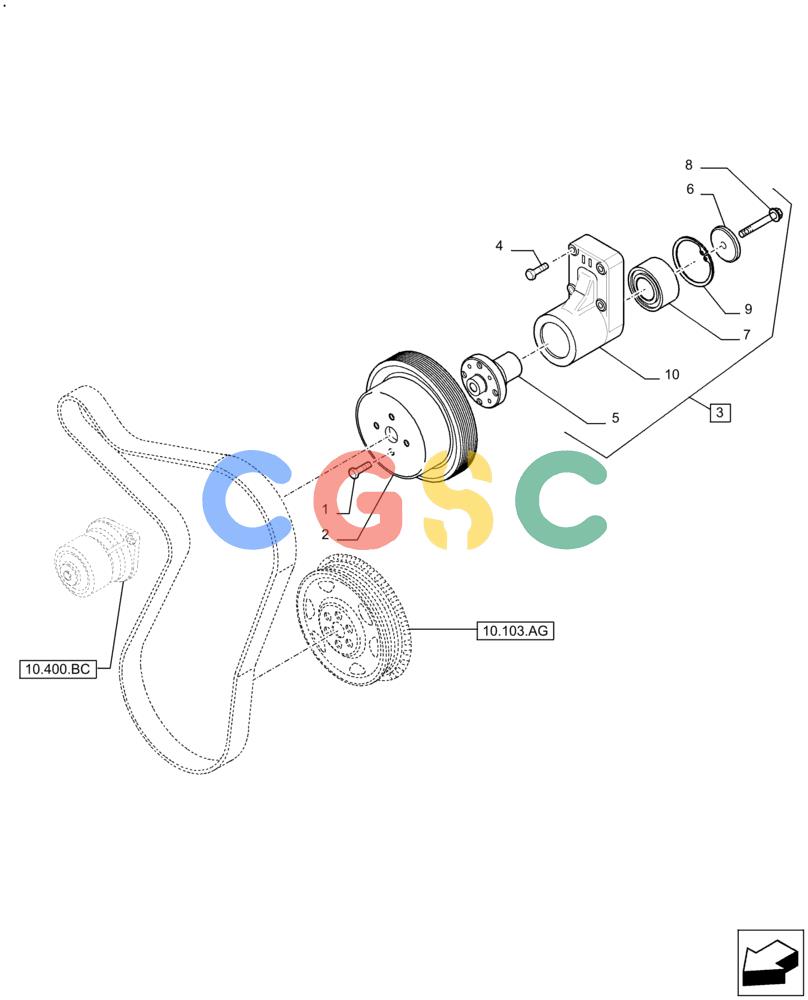

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899032 | [4] | SCREW,Hex Flg, M10 x 1.5 x 25 | TOR |
| 2. | 2853233 | [1] | PULLEY,178mm OD | TOR Superseded by part number: 500389850 |
| 4. | 4899053 | [4] | SCREW,Hex Flg, M8 x 45 | TOR |
| 5. | 4892426 | [1] | HUB | TOR |
| 6. | 4890732 | [1] | RETAINER,11.50mm ID x 52mm OD x 7mm | TOR |
| 7. | 2859567 | [1] | BALL BEARING | TOR Superseded by part number: 4892732 |
| 8. | 2852172 | [1] | BOLT,Flng, M10 x 1.5 x 70mm | TOR Superseded by part number: 16676834 |
| 9. | 2852171 | [1] | SNAP RING | TOR Superseded by part number: 32324 |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONSupport, Incl in 3 |
