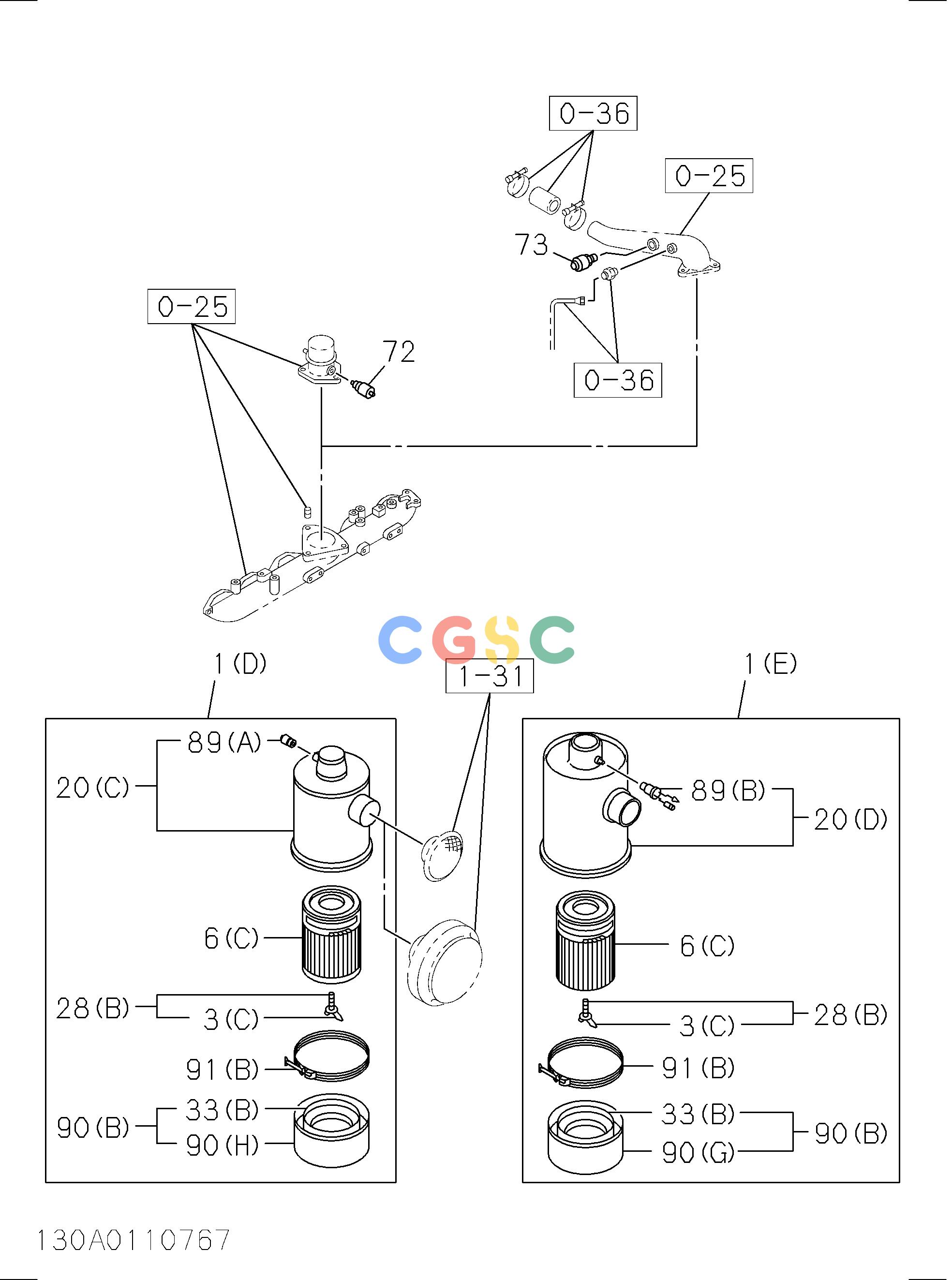

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1(D). | 9142108091 | [1] | CLEANER ASM; AIR | |
| 3(C). | 9142191770 | [1] | WASHER; SEAL,WING NUT | |
| 6(C). | 9142151351 | [1] | FILTER; ACL | |
| 20(C). | 9142113981 | [1] | CASE ASM; ACL | |
| 28(B). | 9142170730 | [1] | BOLT; WING,ACL | |
| 33(B). | 9142191450 | [1] | BAFFLE; ACL | |
| 54(A). | 5142340590 | [2] | BRACKET; ACL | |
| 89(A). | 9142193010 | [1] | INDICATOR; ACL | |
| 90(B). | 9142121140 | [1] | CUP; ACL | |
| 90(G). | 9142120970 | [1] | CUP; ACL | |
| 91(B). | 9142170610 | [1] | CLAMP |
