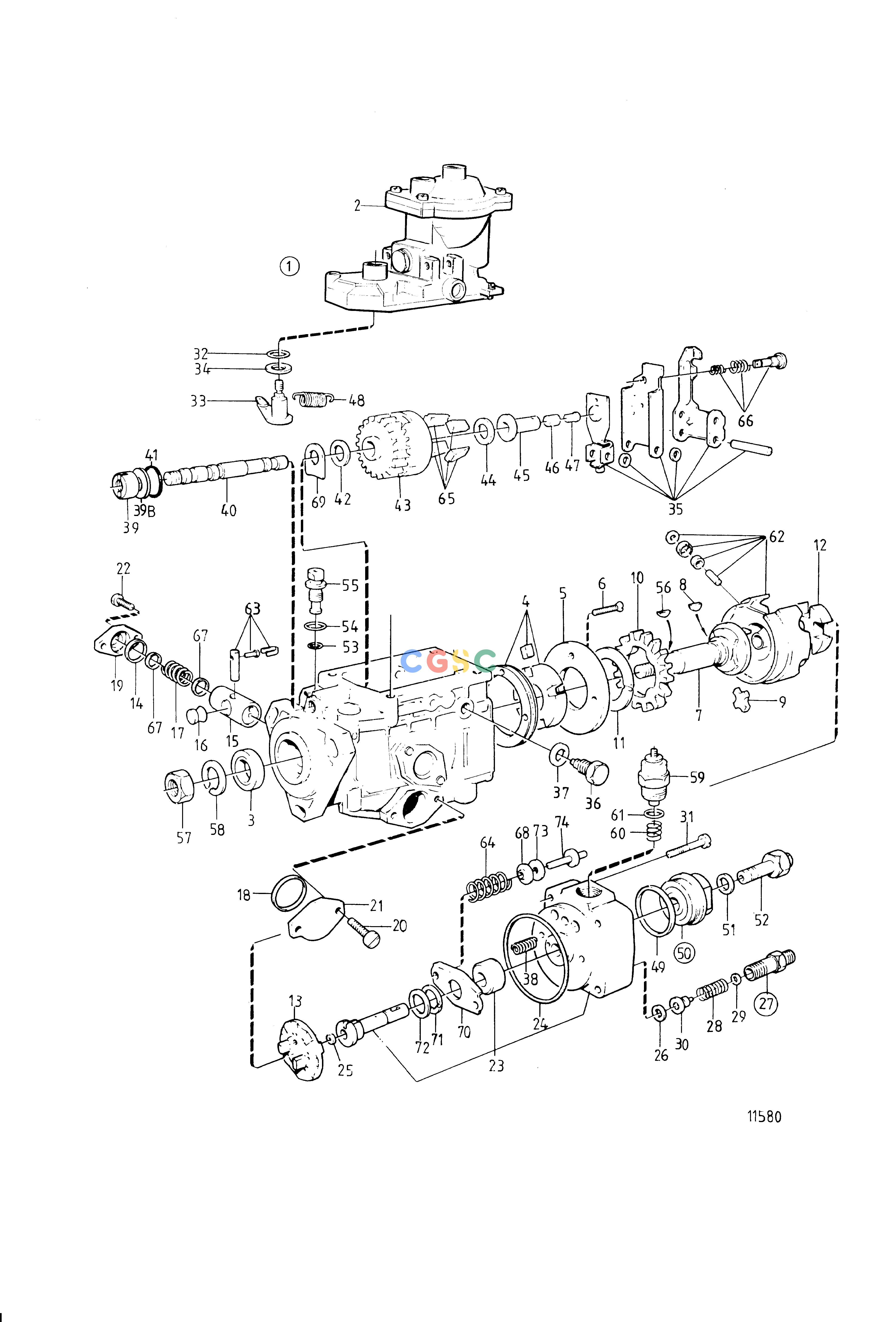

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BFuel SystemFuel Injection Pump: 861102EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
326 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861102
|
[1] |
Injection pump
|
|
| 2. |
|
|
|
|
| 3. |
845744
|
[1] |
Sealing ring
|
|
| 4. |
244917
|
[1] |
Rotor
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
844293
|
[1] |
Key
|
|
| 9. |
844150
|
[2] |
Absorber
|
|
| 10. |
844147
|
[1] |
Gear
|
|
| 11. |
844146
|
[1] |
Washer
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
838445
|
[1] |
O-ring
|
|
| 15. |
859271
|
[1] |
Control piston
|
|
| 16. |
858907
|
[1] |
Roller
|
|
| 17. |
|
|
|
|
| 18. |
838445
|
[1] |
O-ring
|
|
| 19. |
|
|
|
|
| 20. |
244923
|
[2] |
Screw
|
|
| 21. |
|
|
|
|
| 22. |
244923
|
[2] |
Screw
|
|
| 23. |
|
|
|
|
| 24. |
243555
|
[1] |
Sealing ring
|
|
| 25. |
845726
|
[1] |
Shim
|
TH=2,00mm
|
| 25. |
844155
|
[1] |
Adjusting washer
|
TH=2,12mm
|
| 25. |
844156
|
[1] |
Adjusting washer
|
TH=2,20mm
|
| 25. |
845730
|
[1] |
Shim
|
TH=2,40mm
|
| 25. |
243545
|
[1] |
Adjusting washer
|
TH=2,50mm
|
| 26. |
845738
|
[6] |
Washer
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
|
|
|
|
| 30. |
861203
|
[6] |
Retainer
|
|
| |
244931
|
[4] |
Hex. socket screw
|
|
| 32. |
243567
|
[1] |
Sealing ring
|
|
| 33. |
|
|
|
|
| 34. |
|
|
|
|
| 35. |
|
|
|
|
| 36. |
|
|
|
|
| 37. |
|
|
|
|
| 38. |
859462
|
[2] |
Spring
|
|
| 39. |
|
|
|
|
| 40. |
|
|
|
|
| 41. |
|
|
|
|
| 42. |
|
|
|
|
| 43. |
844213
|
[1] |
Control wheel
|
|
| 44. |
|
|
|
|
| 45. |
|
|
|
|
| 46. |
|
|
|
|
| 47. |
|
|
|
|
| 48. |
244965
|
[1] |
Spring
|
|
| 49. |
838402
|
[1] |
O-ring
|
|
| 50. |
861491
|
[1] |
Screw
|
|
| 51. |
|
|
|
|
| 52. |
|
|
|
|
| 53. |
861520
|
[1] |
O-ring
|
|
| 54. |
243520
|
[1] |
Sealing ring
|
|
| 55. |
844179
|
[1] |
Valve
|
|
| 56. |
|
|
|
|
| 57. |
955804
|
[1] |
Hexagon nut
|
|
| 58. |
955925
|
[1] |
Spring washer
|
|
| 59. |
876614
|
[1] |
Stop solenoid
|
|
| 60. |
861208
|
[1] |
Spring
|
|
| 61. |
|
|
|
|
| 62. |
|
|
|
|
| 63. |
244974
|
[1] |
Kit
|
|
| 64. |
|
|
|
|
| 65. |
844212
|
[1] |
Set of weights
|
|
| 66. |
|
|
|
|
| 67. |
244425
|
[1] |
Adjusting washer
|
|
| 68. |
|
|
|
|
| 69. |
844215
|
[1] |
Washer
|
|
| 70. |
|
|
|
|
| 71. |
|
|
|
|
| 72. |
|
|
|
|
| 73. |
|
|
|
|
| 74. |
|
|
|
|
| 74. |
844240
|
[1] |
Gasket kit
|
|
