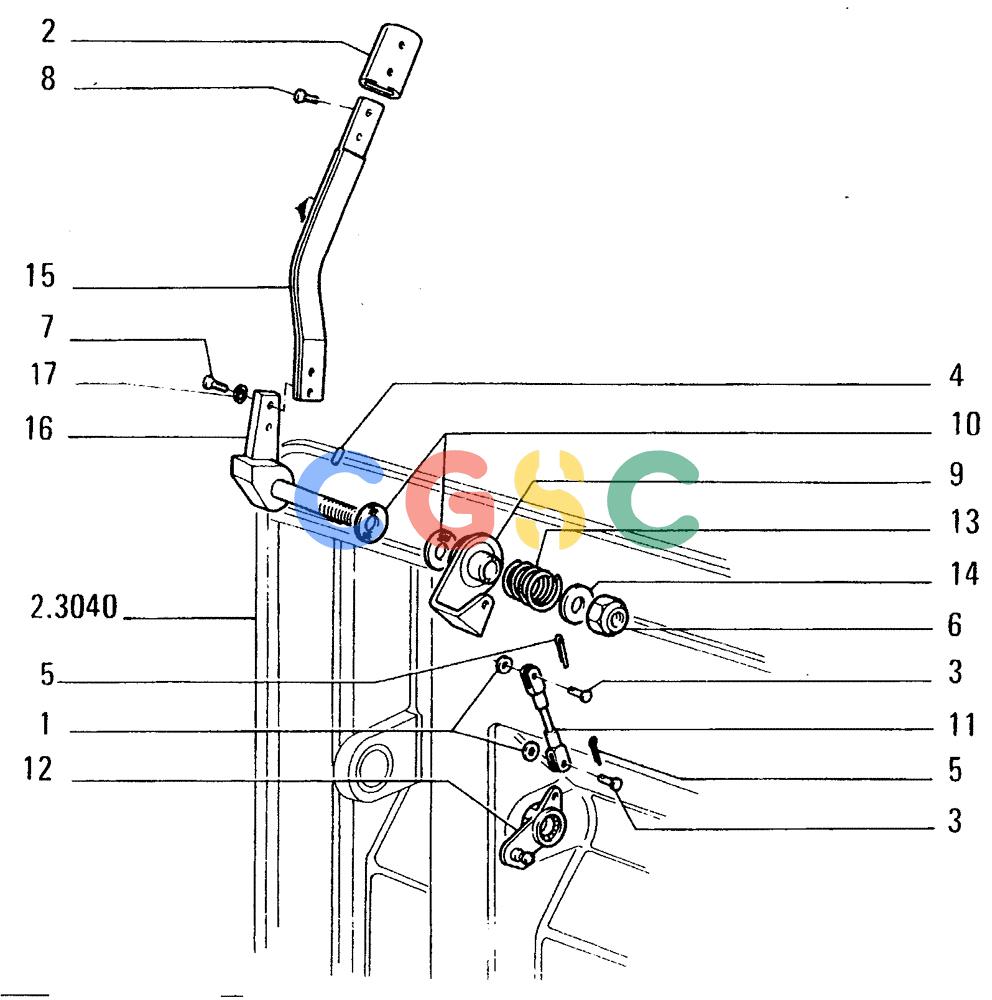

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.1340[001]) - THROTTLE CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
459 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 591123 | [2] | WASHER | LEC |
| 2. | 5131161 | [1] | HANDLE GRIP | TTFHANDGRIP |
| 3. | 10004914 | [2] | PIN | LEC6x18,5 Superseded by part number: 10004911 |
| 4. | 10334910 | [1] | DOWEL,M5 x 20 | MODPIN 5x20 |
| 5. | 10734201 | [2] | COTTER PIN,M2 x 12 | TTF1,7x18,5 Superseded by part number: |
| 6. | 13598221 | [1] | NUT,M14 x 1.5 | BASNUT, LOCK, M14 x 1.5, Cl 10 |
| 7. | 10902231 | [2] | SCREW,Hex, M6 x 16mm, Cl 10.9 | LECBOLT, Hex, M6 x 16, 10.9 Superseded by part number: 86639037 |
| 8. | 15911907 | [2] | SELF-TAP SCREW,Cross Oval Hd, M6.3 x 16 | LECSCREW 14x16 |
| 9. | 79091255 | [1] | LEVER | LEC |
| 10. | 79078950 | [2] | CLUTCH PLATE | LECCLUTCH DISC Superseded by part number: 76032147 |
| 11. | 79078951 | [1] | TIE-ROD | LECTIEROD Superseded by part number: 79091546 |
| 12. | 79078958 | [1] | PIVOT | LECROCKER |
| 13. | 79078980 | [1] | SPRING | LEC |
| 14. | 79080850 | [1] | WASHER,14.5mm ID x 32mm OD x 3mm Thk | LEC |
| 15. | 79087101 | [1] | LEVER | LEC |
| 16. | 79091252 | [1] | LEVER | LECC2719 Superseded by part number: 79097930 |
| 16. | 79097930 | [1] | LEVER | LECD2719 |
| 17. | 10615479 | [2] | LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk | LECWASHER, LOCK, Ext Tooth, M6, Serr, D2719 Superseded by part number: |
