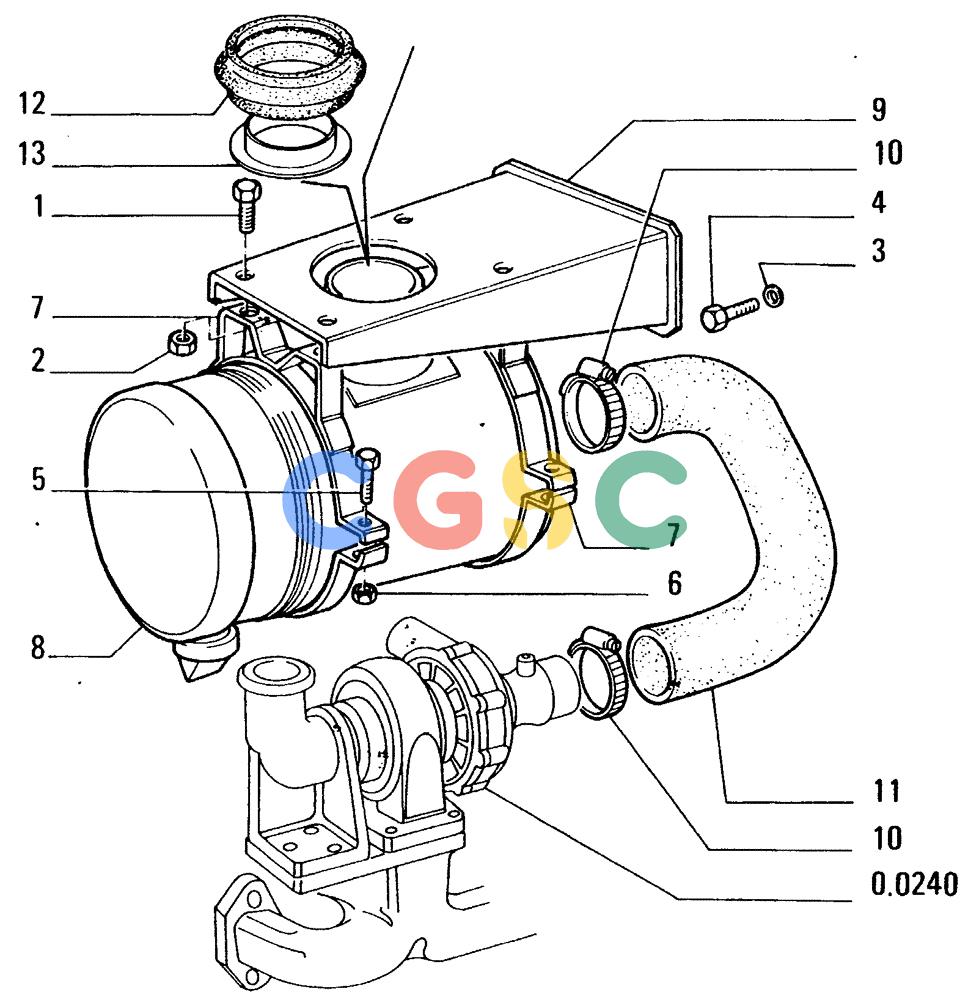

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.1550[001]) - AIR CLEANER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
389 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11106034 | [4] | BOLT,Hex, M10 x 20, 10.9, Full Thd | BUR Superseded by part number: 11106031 |
| 2. | 11701721 | [4] | NUT,M10, Cl 10 | LEC10x1,5x8 Superseded by part number: 17038131 |
| 3. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LECD2701 M8.45 x 21 x 3 Thk, HT |
| 3. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 C2701 Superseded by part number: 86624184 |
| 4. | 16043634 | [4] | SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | LECBOLT, Hex, M8 x 25, 10.9, Full Thd Superseded by part number: 16043637 |
| 5. | 16043934 | [2] | BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd | LEC |
| 6. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 7. | 79011287 | [2] | BRACKET | LECCOLLAR |
| 8. | 73053290 | [1] | AIR FILTER | CMIDRY AIR CLEANER |
| 8. | 79084918 | [1] | AIR CLEANER | LECDRY AIR CLEANER Superseded by part number: 73053290 |
| 9. | 79081451 | [1] | SUPPORT | LECC2701 Superseded by part number: 79101725 |
| 9. | 79101725 | [1] | SUPPORT | LECD2701 Superseded by part number: 79106932 |
| 10. | 79083852 | [2] | HOSE CLAMP,100mm - 125mm, Worm Gear | LECCOLLAR |
| 11. | 79087476 | [1] | HOSE | LEC |
| 12. | 79092237 | [1] | HOSE | LECSLEEVE D2678 |
| 13. | 79082734 | [1] | CUP | LECD2678 |
