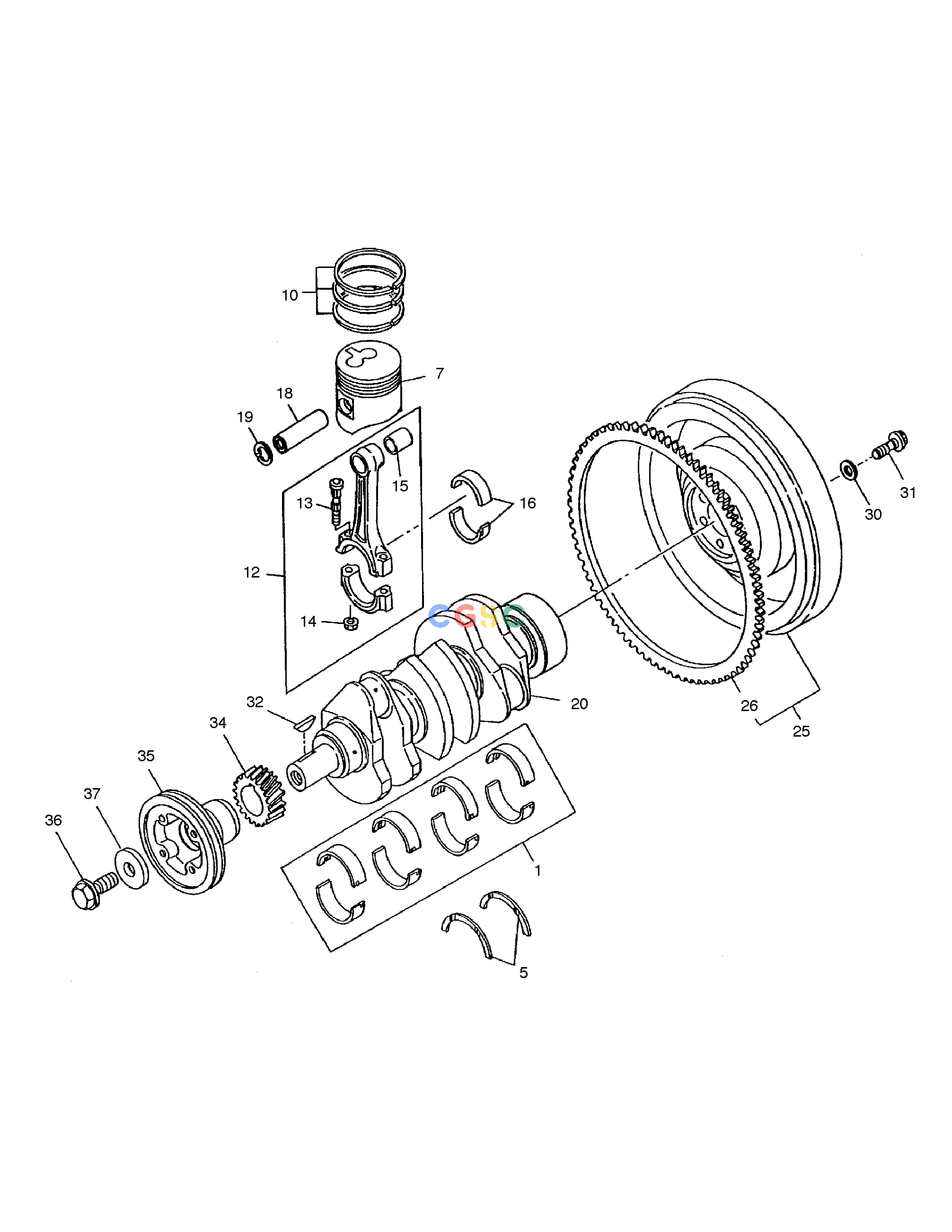

斗山零件查询PISTON & CRANK SHAFT ASS'Y SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
589 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897039-5820
|
[1] |
METAL KIT;STD
|
|
| 10. |
897113-7620
|
[3] |
RING SET;PISTON STD
|
|
| 12. |
897020-0670
|
[3] |
ROD ASS'Y;CONN
|
|
| 13. |
894107-5501
|
[6] |
BOLT;CONN ROD
|
|
| 14. |
894240-9020
|
[6] |
NUT;CONN ROD
|
|
| 15. |
894137-5220
|
[3] |
BUSH;CONN ROD
|
|
| 16. |
512271-0141
|
[3] |
METAL SET;CONN ROD
|
|
| 18. |
894401-7510
|
[3] |
PIN;PISTON
|
|
| 19. |
894401-7501
|
[6] |
RING;SNAP
|
|
| 20. |
897040-5203
|
[1] |
CRANK SHAFT ASS'Y
|
|
| 25. |
897043-9340
|
[1] |
FLYWHEEL ASS'Y
|
|
| 26. |
894419-6020
|
[1] |
GEAR;RING Z=108
|
|
| 30. |
897023-2680
|
[1] |
WASHER;FLYWHEEL
|
|
| 31. |
894133-3281
|
[6] |
BOLT FLYWHEEL FIX
|
|
| 32. |
894201-6410
|
[6] |
KEY;WOORDUFF
|
|
| 34. |
897034-5920
|
[1] |
GEAR;CRANK SHAFT Z=37
|
|
| 35. |
897109-3721
|
[1] |
PULLEY;CRANK SHAFT
|
|
| 36. |
894386-0790
|
[1] |
BOLT;PULLEY
|
|
| 37. |
894134-7920
|
[1] |
WASHER;PULLEY
|
|
| 5. |
511599-0023
|
[2] |
METAL ;THRUST
|
|
| 7. |
897034-5740
|
[3] |
PISTON;STD
|
|
