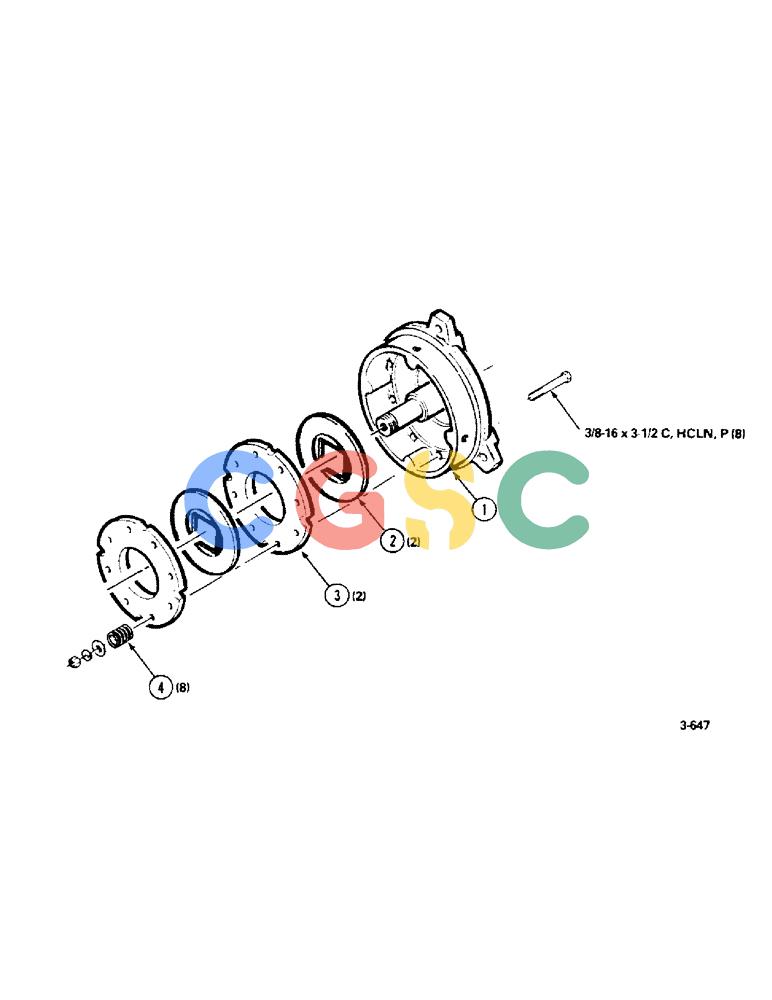

凯斯零件查询(8550) - CASE IH RECTANGULAR BALER (1/88-12/93) (15) - SLIP CLUTCH, PRIMARY, DRIVE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
351 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700108160
|
[1] |
HOUSING
|
CAS
HUB AND HOUSING
|
| 2. |
6522874
|
[2] |
DISC,104.8mm ID x 174.62mm OD x 6.35mm Thk
|
CAS
- friction
|
| 3. |
6522866
|
[2] |
CLUTCH PLATE
|
CAS
PLATE - clutch
|
| 4. |
758029
|
[8] |
SPRING
|
CAS
- compression
|
| . . |
7772767
|
[8] |
SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 X 3-1/2 C Superseded by part number: 88959
|
| . . |
88902
|
[8] |
NUT,3/8"-16
|
NH
3/8-16 HCLN
|
