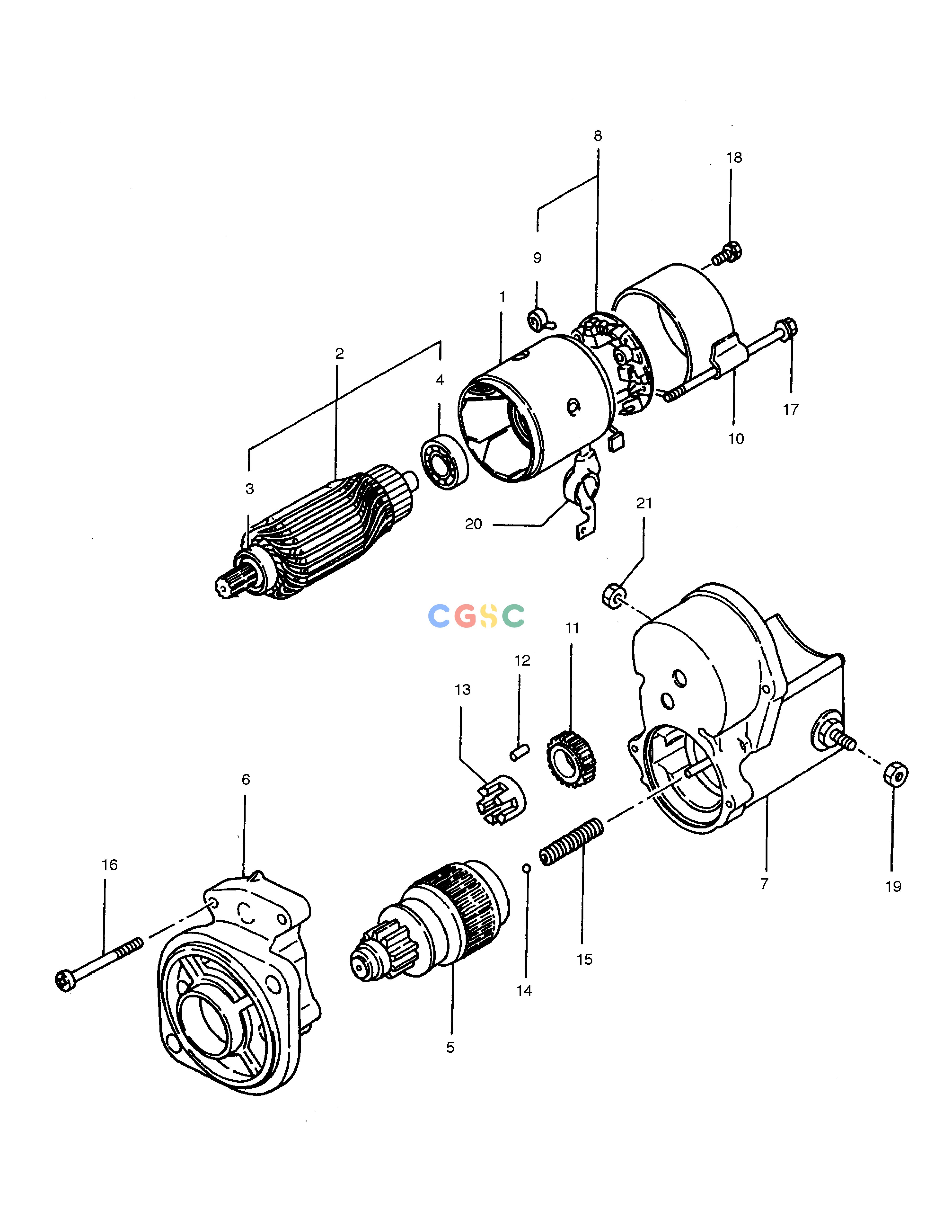

斗山零件查询STARTER SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
905 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
897048-9650
|
[1] |
STARTER ASS'Y
|
|
| 1. |
581111-0110
|
[1] |
YOKE ASS'Y
|
|
| 10. |
581115-0340
|
[1] |
FRAME;END
|
|
| 11. |
581123-0110
|
[1] |
PINION
|
|
| 12. |
581129-0990
|
[5] |
ROLLER;CLUTCH
|
|
| 13. |
581129-1000
|
[1] |
RETAINER
|
|
| 14. |
581129-0920
|
[1] |
BALL;STEEL
|
|
| 15. |
581129-0960
|
[1] |
SPRING;COMPRESSION COIL
|
|
| 16. |
581129-1820
|
[2] |
SCREW;W/WASHER
|
|
| 17. |
581129-1830
|
[2] |
BOLT;W/WASHER
|
|
| 18. |
581129-1810
|
[2] |
SCREW;W/WASHER
|
|
| 19. |
509400-0420
|
[1] |
NUT
|
|
| 2. |
581121-0310
|
[1] |
ARMATURE ASS'Y
|
|
| 20. |
581119-0290
|
[1] |
CAP;TERMINAL RUBBER
|
|
| 21. |
894377-2380
|
[1] |
NUT
|
|
| 3. |
509800-0790
|
[1] |
BEARING;BALL
|
|
| 4. |
509800-0400
|
[1] |
BEARING;BALL
|
|
| 5. |
581124-0030
|
[1] |
CLUTCH SUB ASS'Y
|
|
| 6. |
897078-6480
|
[1] |
HOUSING ASS'Y
|
|
| 7. |
897078-6470
|
[1] |
SWITCH ASS'Y;MAGNETIC
|
|
| 8. |
581118-0220
|
[1] |
HOLDER;ASS'Y;BRUSH
|
|
| 9. |
581117-0070
|
[4] |
SPRING;BRUSH
|
|
