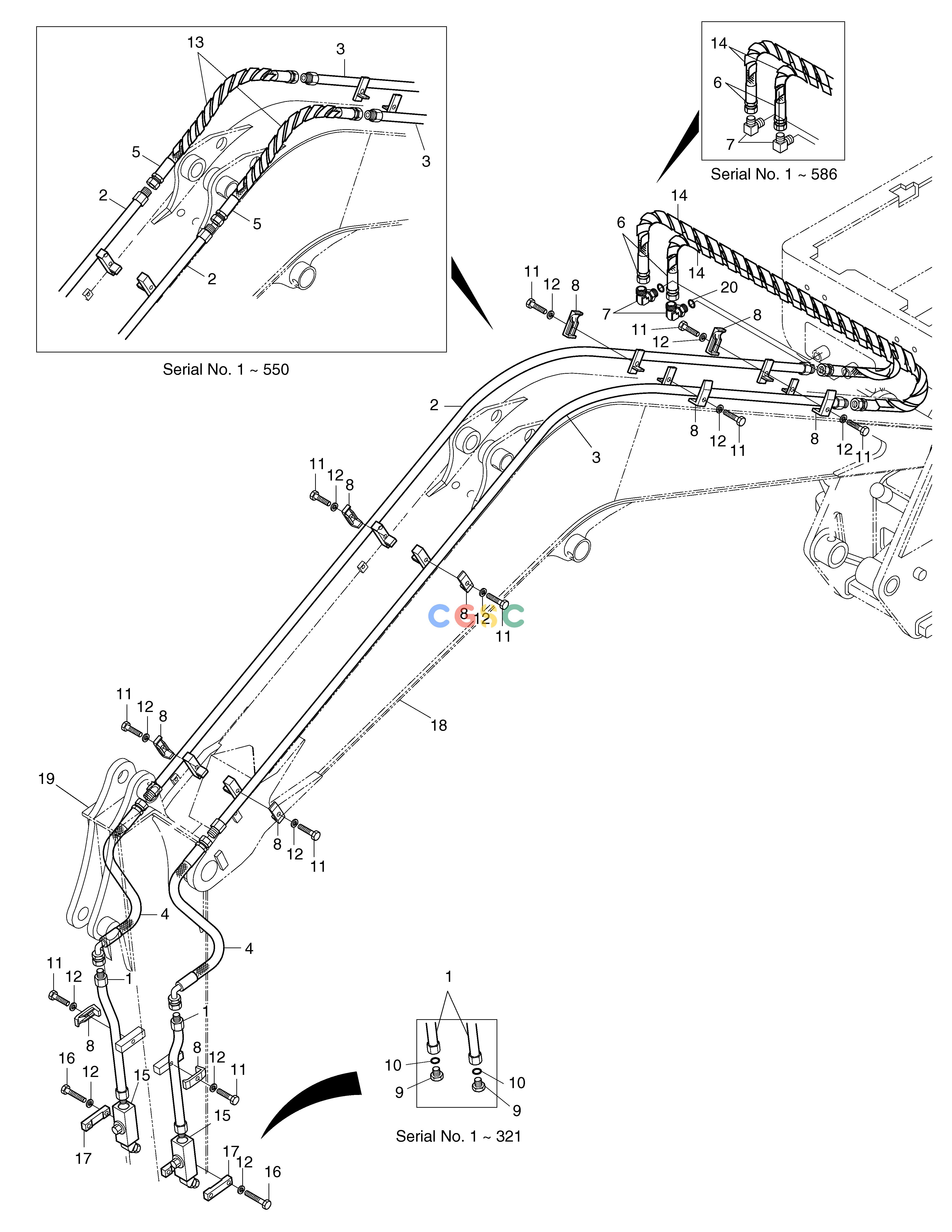

斗山零件查询BREAKER PIPING-ONE WAY SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
715 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1927
|
[-] |
BRAEKER PIPING-ONE WAY
|
|
| -. |
2400-1927A
|
[-] |
BREAKER PIPING-ONE WAY
|
|
| 1. |
2182-1699
|
[2] |
PIPE
|
|
| 1. |
2182-1757
|
[2] |
PIPE
|
2182-1757A
|
| 1. |
2182-1757A
|
[2] |
PIPE
|
|
| 10. |
S8000181
|
[2] |
O-RING
|
|
| 11. |
S0558453
|
[12] |
BOLT
|
|
| 11. |
S0558453
|
[10] |
BOLT
|
|
| 12. |
S5102603
|
[12] |
. WASHER
|
|
| 12. |
S5102603
|
[16] |
. WASHER
|
|
| 13. |
2158-1003D31
|
[2] |
PROTECTOR;HOSE
|
|
| 14. |
2158-1003D30
|
[2] |
HOSE;PROTECROT 1180L
|
|
| 15. |
2420-9584
|
[2] |
STOP VALVE ASS'Y
|
|
| 16. |
S0558753
|
[4] |
BOLT M10X1.5X60
|
|
| 17. |
2124-1659
|
[2] |
CLAMP;PIPE
|
|
| 18. |
2701-1582A
|
[1] |
BOOM ASS'Y
|
|
| 19. |
2701-1581C
|
[1] |
ARM ASS'Y
|
|
| 2. |
2182-1700
|
[2] |
PIPE
|
2182-1700A
|
| 2. |
2182-1700A
|
[2] |
PIPE
|
|
| 2. |
2182-1700B
|
[1] |
PIPE
|
|
| 2. |
2182-1700C
|
[1] |
PIPE
|
|
| 20. |
S8000181
|
[2] |
O-RING
|
|
| 3. |
2182-1701
|
[2] |
PIPE
|
2182-1701A
|
| 3. |
2182-1701A
|
[2] |
PIPE
|
|
| 3. |
2182-1701B
|
[1] |
PIPE
|
|
| 3. |
2182-1701C
|
[1] |
PIPE
|
|
| 4. |
2184-1071D9
|
[2] |
HOSE PF1/2-630L
|
|
| 4. |
2184-1071D57
|
[2] |
HOSE PF1/2-660L
|
|
| 5. |
2184-1026D108
|
[2] |
HOSE PF1/2-720L
|
|
| 6. |
2184-1026D295
|
[2] |
HOSE PF1/2-1300L
|
|
| 7. |
2181-1186D3
|
[2] |
ELBOW PT1/2-PF1/2
|
|
| 7. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 8. |
2124-1026D1
|
[12] |
CLAMP;PIPE
|
|
| 8. |
2124-1026D1
|
[10] |
CLAMP;PIPE
|
|
| 9. |
2181-1950D3
|
[2] |
PLUG
|
|
