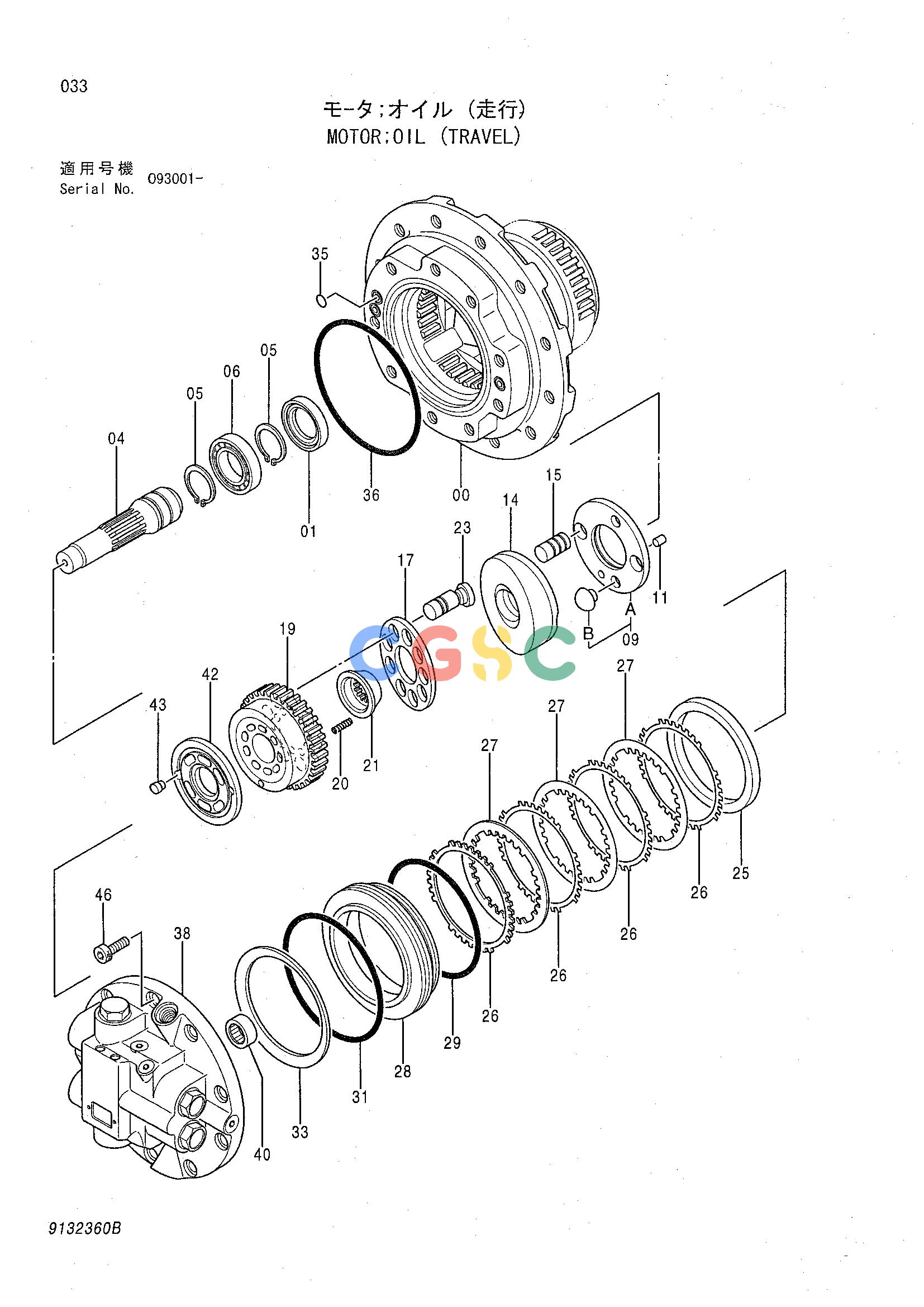

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9132360 | [1] | MOTOR;OIL | I91484729132360B <for assembly of machine> | |
| (9148472) | [1] | MOTOR;OIL | <for transportation> | |
| 00. | 1020617 | [1] | HOUSING | |
| 01. | 4212841 | [1] | SEAL;OIL | |
| 04. | 3070443 | [1] | SHAFT | |
| 05. | 959499 | [2] | RING;RETAINING | |
| 06. | 4343872 | [1] | BRG.;ROL. | |
| 09. | 9147525 | [1] | PLATE ASS'Y | |
| 09A. | +++++++ | [1] | PLATE | |
| 09B. | +++++++ | [2] | PIN | |
| 11. | 4212842 | [1] | PIN;KNOCK | |
| 14. | 3072797 | [1] | PLATE;SWASH | |
| 15. | 4416040 | [2] | PISTON;SERVO | |
| 17. | 3078124 | [1] | RETAINER | |
| 19. | 2028344 | [1] | ROTOR | |
| 20. | 4312681 | [9] | SPRING;COMPRES. | |
| 21. | 3065176 | [1] | BUSHING | |
| 23. | 8060510 | [9] | PISTON | |
| 25. | 4332191 | [1] | SPACER | |
| 26. | 3032432 | [4] | PLATE | |
| 27. | 3043240 | [3] | PLATE;FRICTION | |
| 28. | 3076389 | [1] | PISTON | |
| 29. | 4372710 | [1] | O-RING | |
| 31. | 4372711 | [1] | O-RING | |
| 33. | 3043242 | [1] | SPRING;DISC | |
| 35. | 4506415 | [3] | O-RING | |
| 36. | 4244542 | [1] | O-RING | |
| 38. | 9132208 | [1] | VALVE;BRAKE | I91484719132208B <for assembly of machine> |
| 38. | (9148471) | [1] | VALVE;BRAKE | <for transportation> |
| 40. | 4234840 | [1] | BRG.;NEEDLE | |
| 42. | 3047922 | [1] | PLATE;VALVE | |
| 43. | 4271350 | [2] | PIN;KNOCK | |
| 46. | M341640 | [9] | BOLT;SOCKET |
