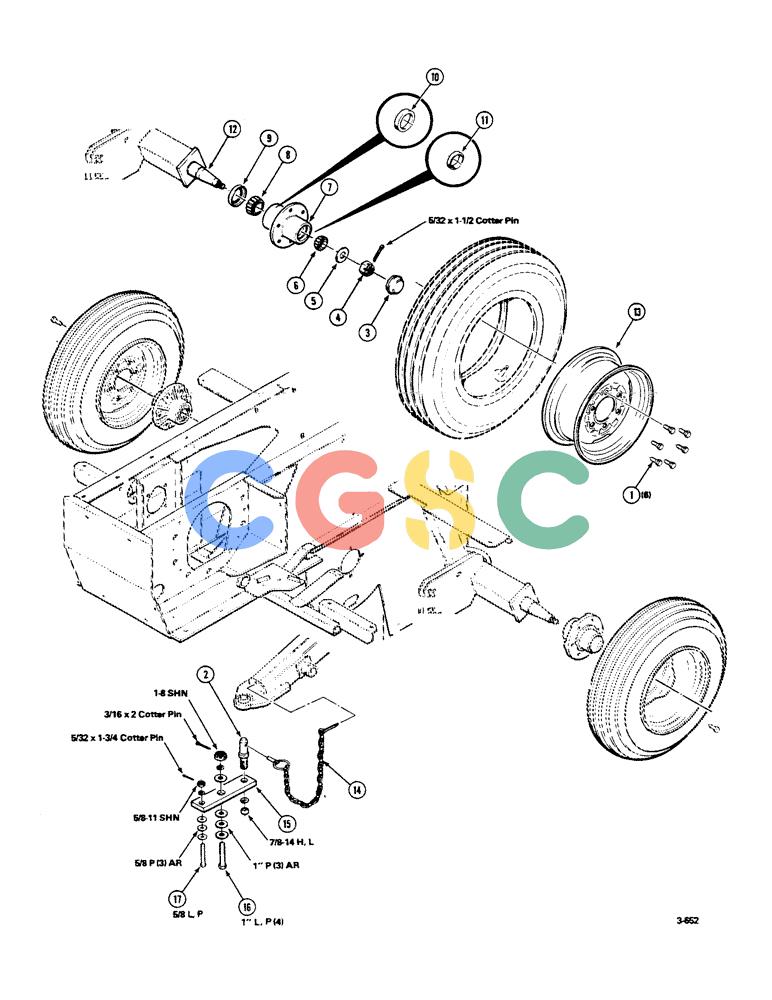

凯斯零件查询(8550) - CASE IH RECTANGULAR BALER (1/88-12/93) (22) - WHEEL AND HUB ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
242 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
026328
|
[12] |
WHEEL BOLT
|
|
| 2. |
7751886
|
[1] |
HITCH PIN
|
IH
PIN - link
|
| 3. |
026930
|
[2] |
HUB CAP
|
|
| 4. |
7704208
|
[2] |
SLOTTED NUT
|
CAS
SLOTTED HEX NUT Superseded by part number: 88886
|
| 5. |
026971
|
[2] |
WASHER
|
|
| 6. |
711507
|
[2] |
ROLLER BEARING,31.77 mm ID x 16.764 mm
|
IH
BEARING CONE - outer Superseded by part number: 84356153
|
| 7. |
826255
|
[2] |
HUB
|
CAS
ASSEMBLY (Includes cups)
|
| 8. |
713537
|
[2] |
ROLLER BEARING
|
CAS
BEARING CONE - inner Superseded by part number: 86512015
|
| 9. |
844050
|
[2] |
SEAL
|
L
- grease
|
| 10. |
713545
|
[2] |
CUP
|
CAS
BEARING CUP - inner Superseded by part number: 663558R1
|
| 11. |
711242
|
[2] |
BEARING CUP
|
CAS
- outer Superseded by part number: 47923369
|
| 12. |
700108335
|
[1] |
SPINDLE
|
CAS
- replacement
|
| 13. |
700707924
|
[2] |
RIM
|
CAS
WHEEL RIM Superseded by part number: A57879
|
| 14. |
063768
|
[1] |
PIN - linch
|
|
| 15. |
700108416
|
[1] |
DRAWBAR
|
HFI
- extension
|
| 16. |
6232227
|
[1] |
BOLT,Hex, 1" - 8 x 4", Drilled
|
HFI
1-8 X 4 BOLT - special
|
| 17. |
6232813
|
[1] |
BOLT,Hex, 5/8" - 11 x 3.18", Gr 5, Drilled
|
HFI
5/8-11 X 3-1/2 BOLT - special
|
| . . |
704973
|
[1] |
SLOTTED NUT,1"-8, G5
|
CAS
1-8 SLOTTED HEX NUT Superseded by part number: 87343900
|
| . . |
704916
|
[1] |
SLOTTED NUT,5/8"-11, G5
|
CAS
5/8-11 SLOTTED HEX NUT Superseded by part number: 425-1210
|
| . . |
704932
|
[1] |
NUT
|
CAS
7/8-14 H Superseded by part number: 9602205
|
| . . |
705574
|
[4] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| . . |
705152
|
[1] |
LOCK WASHER,7/8"
|
CAS
7/8" Superseded by part number: 87341
|
| . . |
705137
|
[1] |
LOCK WASHER,1"
|
CAS
Superseded by part number: 92-21100
|
