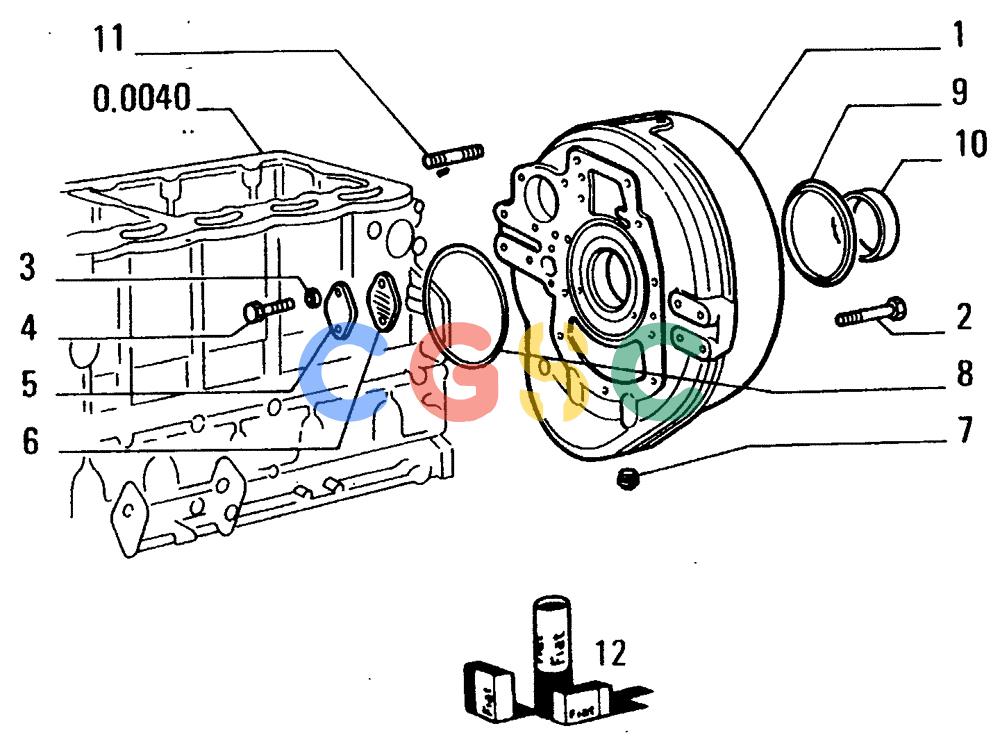

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0043[002]) - CRANKCASE COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
696 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4821100 | [1] | SUPPORT | LEC Superseded by part number: 98473187, 17300081 |
| 2. | 14274630 | [8] | SCREW | MKT12 x 1, 25 x 35 Superseded by part number: 14274631 |
| 3. | 11197771 | [2] | LOCK WASHER | TTFLOCKWASHER 6, 4 x 12 Superseded by part number: 17088474 |
| 4. | 10902121 | [2] | SCREW,Hex, M6 x 14mm, Cl 8.8 | TTFBOLT, Hex, M6 x 14, 8.8, Full Thd Superseded by part number: 10902124 |
| 5. | 8818504 | [1] | COVER | MOD |
| 6. | 8818505 | [1] | GASKET | MOD Superseded by part number: 98411989 |
| 7. | 14326311 | [1] | MAGNETIC PLUG | LECPLUG - IN ALTERNATIVE Superseded by part number: 14326340 |
| 7. | 14326340 | [1] | PLUG | MKT- IN ALTERNATIVE |
| 8. | 14483481 | [1] | O-RING,-372, Cl 7, 8.725" ID x .210" Thk | LEC0-RING 3.53 x 221.6 |
| 9. | 40003414 | [1] | GASKET | MKTSEAL C2736 Superseded by part number: 40101384 |
| 9. | 40101384 | [1] | SEAL,131mm ID x 158mm OD x 23mm Thk | TORSEAL D2736 |
| 10. | 4801846 | [1] | BUSHING | LEC |
| 11. | 13546421 | [3] | STUD | MKT10 x 1, 25 x 48 Superseded by part number: 13546424 |
| 12. | 79037448 | [1] | ENGINE GASKET KIT | LECKIT, SEE PAGE 32 Superseded by part number: 75127433 |
