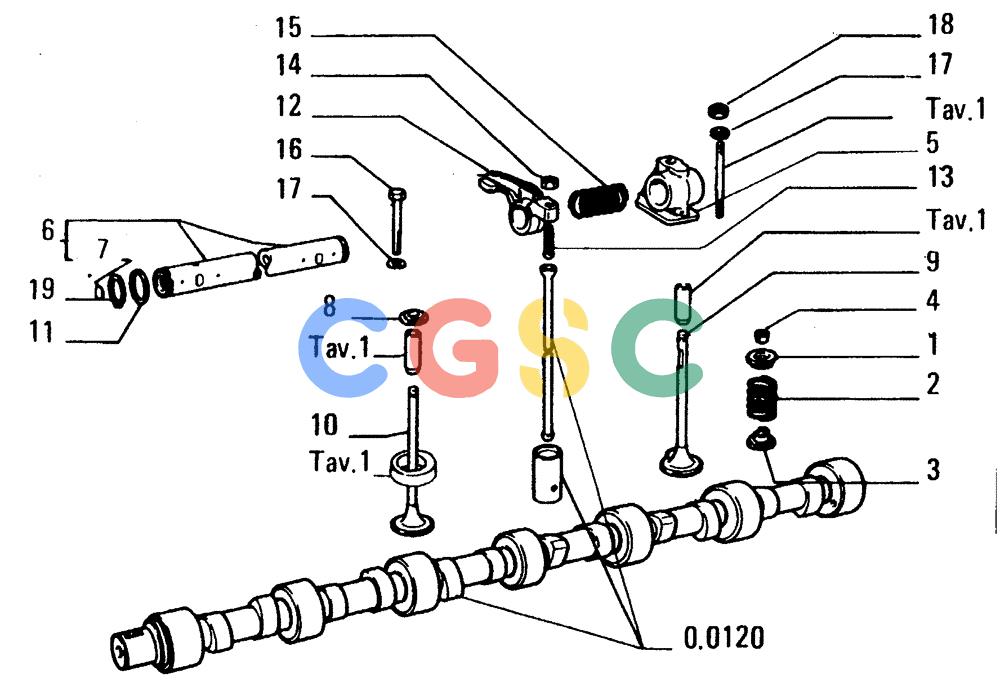

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0060[002]) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
513 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4734133 | [12] | CUP | MOD- UPPER IN ALTERNATIVE Superseded by part number: 8818691 |
| 1. | 8818691 | [12] | RETAINER CUP | MODCUP - UPPER IN ALTERNATIVE |
| 2. | 4798427 | [12] | SPRING | MOD |
| 3. | 4746941 | [6] | CUP | MKT- LOWER IN ALTERNATIVE Superseded by part number: 8822385 |
| 3. | 8822385 | [6] | RETAINER CUP | MODCUP - LOWER IN ALTERNATIVE |
| 4. | 4734134 | [24] | ROCKER ARM COTTER | MODDETENT - IN ALTERNATIVE Superseded by part number: 4819891 |
| 4. | 4819891 | [24] | ROCKER ARM COTTER,7.85mm Dia | LECDETENT - IN ALTERNATIVE Superseded by part number: 4734134 |
| 5. | 4752172 | [6] | SUPPORT | MOD- IN ALTERNATIVE Superseded by part number: 98418727 |
| 5. | 4752173 | [6] | SUPPORT | MKT- IN ALTERNATIVE Superseded by part number: 4752172 |
| 6. | 4752190 | [2] | SHAFT | JES- ASSEMBLY |
| 7. | 10158400 | [2] | PLUG | MKT12 x 1, 5 Superseded by part number: 10158401 |
| 8. | 8822963 | [6] | RETAINER CUP | MODCUP - LOWER |
| 9. | 4798426 | [6] | STD INLET VALVE | BREINTAKE VALVE - IN ALTERNATIVE Superseded by part number: 4821710 |
| 9. | 4821710 | [6] | STD INLET VALVE | LECINTAKE VALVE - IN ALTERNATIVE |
| 10. | 4821711 | [6] | STD EXHAUST VALVE | LECEXHAUST VALVE - IN ALTERNATIVE Superseded by part number: 8830045 |
| 10. | 8830045 | [6] | STD EXHAUST VALVE | MODEXHAUST VALVE - IN ALTERNATIVE |
| 11. | 38814907 | [2] | WASHER | MKTRING |
| 12. | 8823993 | [6] | ROCKER ARM | MODROCKER |
| 13. | 4786841 | [6] | SCREW | MOD |
| 14. | 61584377 | [6] | NUT | MOD |
| 15. | 38812780 | [2] | SPRING | MOD |
| 16. | 11343724 | [2] | BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8 | TTFSCREW 10 x 1, 25 x 65 |
| 17. | 12646824 | [6] | WASHER,10.2mm ID x 25mm OD x 2mm Thk | TTFLOCKWASHER 10, 2 x 25 |
| 18. | 12164721 | [4] | NUT,M10 x 1.25, Cl 10 | TTF10 x 1, 25 x 8 |
| 19. | 11066975 | [2] | LOCKING RING | MKTSNAP RING 19, 5 x 1, 2 Superseded by part number: 11066976 |
