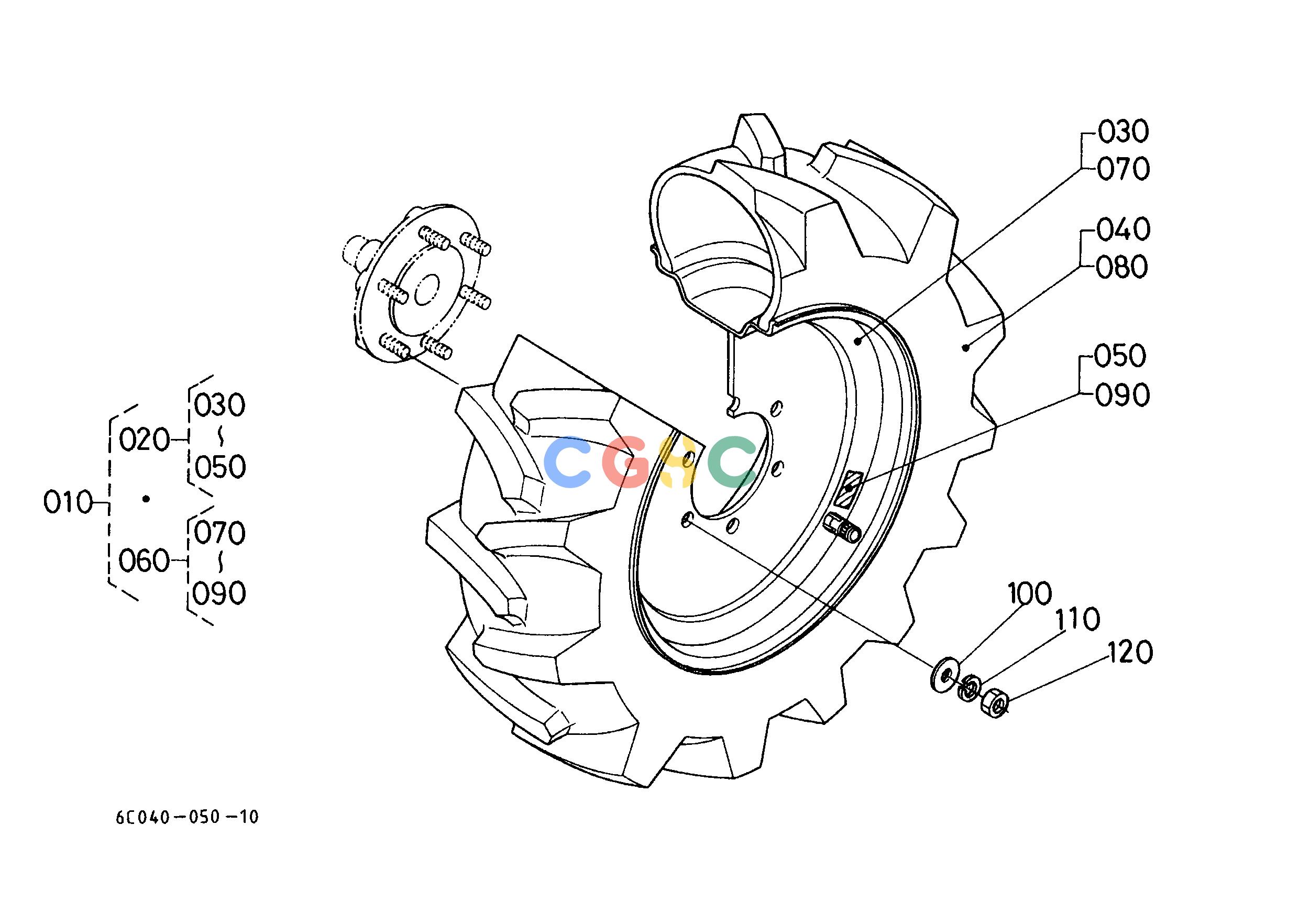

久保田零件查询R10102 FRONT WHEEL (7-12) FRONT WHEEL/REAR WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04050310
|
[1] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
6C04050320
|
[1] |
ASSY TIRE,LH
|
0.0000(lbs); 0.000
|
| 030. |
6C04050240
|
[1] |
WHEEL (12 X W5)
|
0.0000(lbs); 0.000
|
| 040. |
6C04050350
|
[1] |
7-12 DYNATRQ 4PR 175-440-470-0
|
0.0000(lbs); 0.000
|
| 050. |
6C04050360
|
[1] |
LABEL ABR8707, LH
|
0.0000(lbs); 0.000
|
| 060. |
6C04050330
|
[1] |
ASSY TIRE,RH
|
0.0000(lbs); 0.000
|
| 070. |
6C04050240
|
[1] |
WHEEL (12 X W5)
|
0.0000(lbs); 0.000
|
| 080. |
6C04050350
|
[1] |
7-12 DYNATRQ 4PR 175-440-470-0
|
0.0000(lbs); 0.000
|
| 090. |
6C04050370
|
[1] |
LABEL ABR8707, RH
|
0.0000(lbs); 0.000
|
| 100. |
0401350120
|
[12] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 110. |
0451250120
|
[12] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 120. |
0217650120
|
[12] |
HEX.NUT
|
0.0220(lbs); 0.010
|
