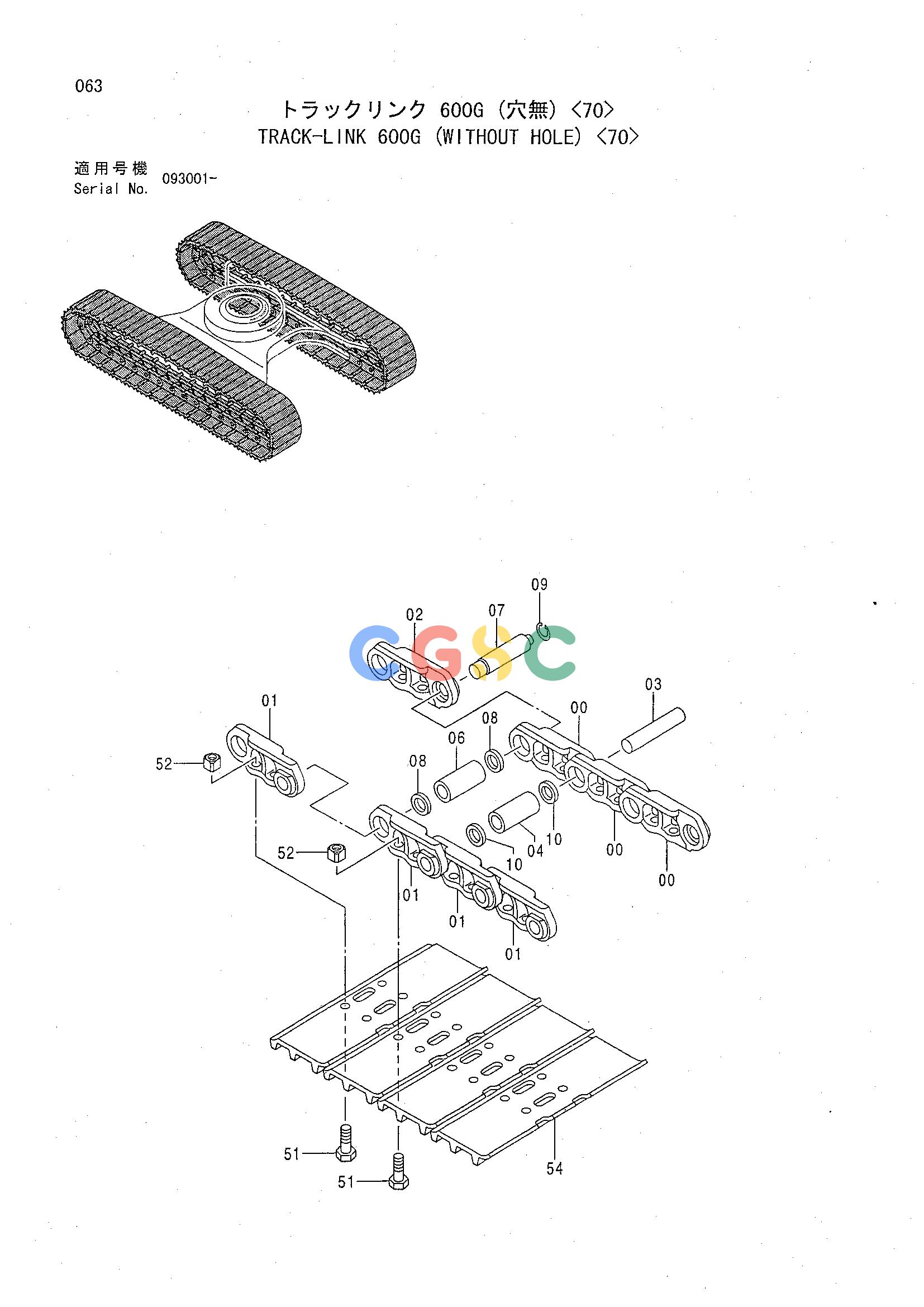

日立零件查询（CHR70）TRACK-LINK 600G (WITHOUT HOLE) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
197 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9144339 | [2] | TRACK-LINK ASS'Y | |
| 00-10. | 9178845 | [1] | TRACK-LINK ASS'Y | |
| 00. | 1026945 | [43] | TRACK-LINK;B | |
| 01. | 1026946 | [44] | TRACK-LINK;B | |
| 02. | 4416241 | [1] | TRACK-LINK;M | |
| 03. | 4416242 | [43] | PIN | |
| 04. | 4344785 | [43] | BUSHING | |
| 06. | 4345599 | [1] | BUSHING;MASTER | |
| 07. | 4416243 | [1] | PIN;MASTER | |
| 08. | 4416244 | [2] | COLLER | |
| 09. | 4192665 | [1] | RING | |
| 10. | 4413807 | [86] | SEAL | |
| 51. | 4345328 | [176] | BOLT;SHOE | |
| 52. | 4253411 | [176] | NUT | |
| 54. | 2024529 | [44] | SHOE;GROUSER | |
