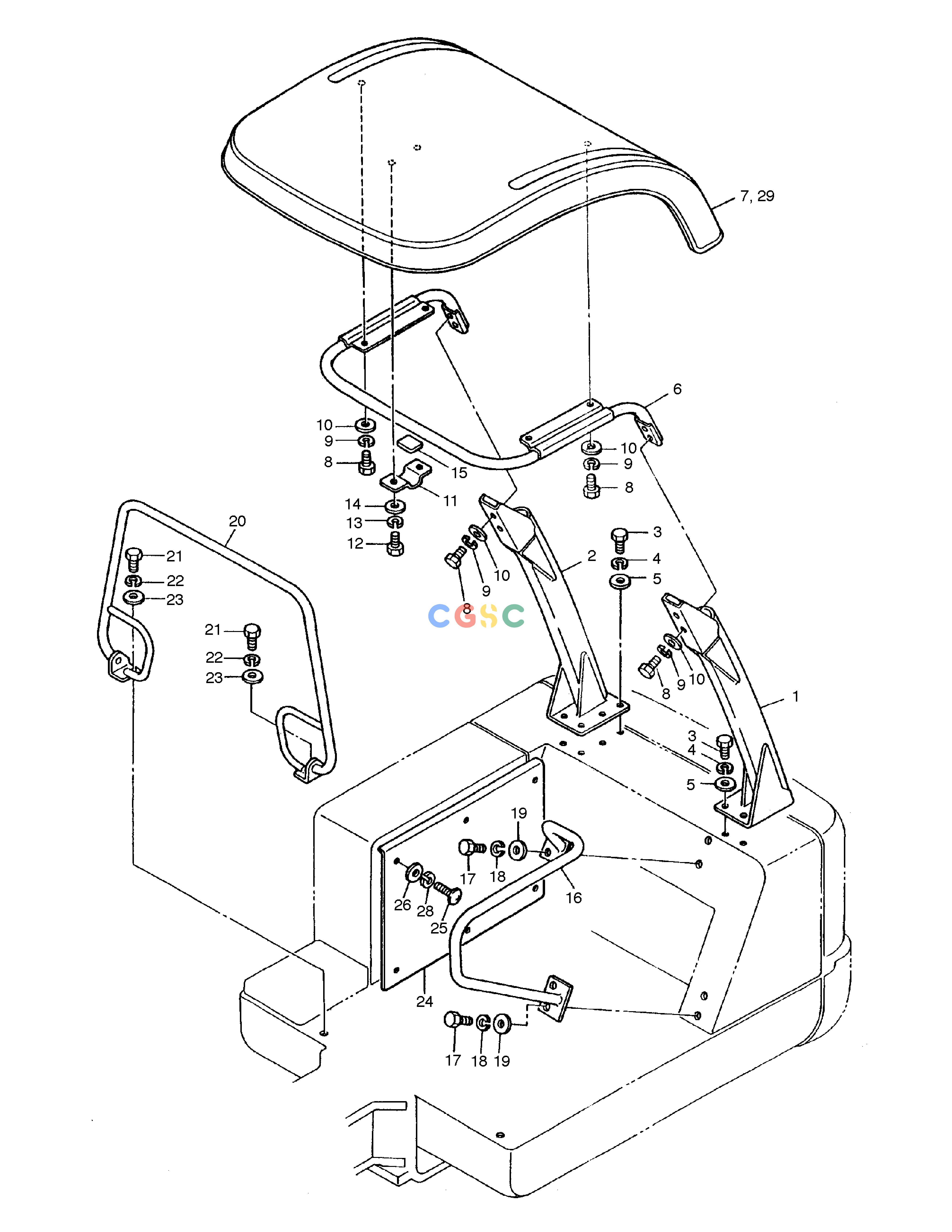

斗山零件查询CANOPY SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-7024
|
[1] |
ROOF
|
|
| 1. |
11220-00972
|
[1] |
POST;ROOF(L.H)
|
2197-1218
|
| 1. |
2197-1218
|
[1] |
POST;ROOF(L.H)
|
|
| 10. |
2114-1769
|
[8] |
WASHER
|
|
| 11. |
2197-1262B
|
[1] |
BRACKET
|
|
| 11. |
2197-1262C
|
[1] |
BRACKET
|
|
| 12. |
S0515053
|
[2] |
BOLT M12X1.75X25
|
|
| 13. |
S5102703
|
[2] |
WASHER
|
|
| 14. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 15. |
2161-2062
|
[1] |
PLATE;RUBBER
|
|
| 16. |
2142-1110A
|
[1] |
RAIL;HAND
|
|
| 17. |
S0508853
|
[4] |
. BOLT
|
|
| 18. |
S5102503
|
[4] |
. WASHER
|
|
| 19. |
2114-1058D29
|
[4] |
WASHER
|
|
| 2. |
11220-00962
|
[1] |
POST;ROOF(R.H)
|
2197-1219
|
| 2. |
2197-1219
|
[1] |
POST;ROOF(R.H)
|
|
| 20. |
2142-1111A
|
[1] |
RAIL;HAND
|
2142-1111B
|
| 20. |
2142-1111B
|
[1] |
RAIL;HAND
|
|
| 21. |
S0515053
|
[2] |
BOLT M12X1.75X25
|
|
| 22. |
S5102703
|
[2] |
WASHER
|
|
| 23. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 24. |
2621-3490A
|
[1] |
COVER;TAND
|
|
| 24. |
2621-3490B
|
[1] |
COVER;TANK
|
|
| 25. |
S0508653
|
[6] |
BOLT
|
|
| 26. |
2114-1058D29
|
[6] |
WASHER
|
|
| 28. |
S5102503
|
[6] |
. WASHER
|
|
| 29. |
2622-9028
|
[1] |
CANOPY(GREEN)-OPTION
|
|
| 3. |
S0512053
|
[8] |
BOLT
|
|
| 4. |
S5102603
|
[8] |
. WASHER
|
|
| 5. |
S5010613
|
[8] |
WASHER
|
|
| 6. |
2197-1220A
|
[1] |
BRACKET ROOF
|
|
| 7. |
11220-00920
|
[1] |
ROOF
|
2622-9027
|
| 7. |
2622-9027
|
[1] |
ROOF
|
|
| 8. |
S0515253
|
[8] |
. BOLT
|
|
| 9. |
S5102703
|
[8] |
WASHER
|
|
