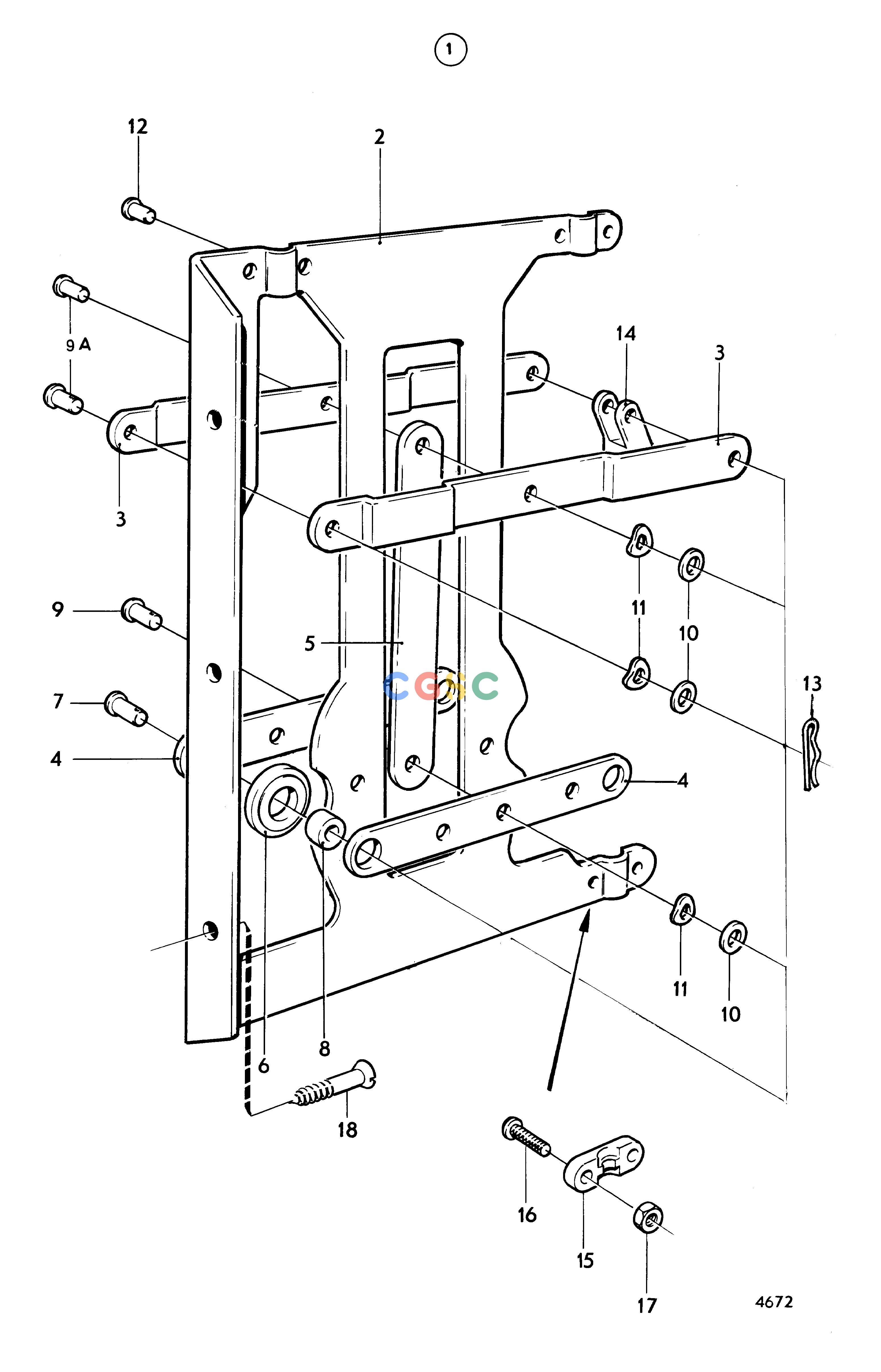

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BMiscellaneous EquipmentDS UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828164
|
[1] |
Connection plate
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
828180
|
[2] |
Roller
|
|
| 7. |
828183
|
[2] |
Split pin
|
|
| 8. |
828178
|
[2] |
Bushing
|
|
| 9. |
850358
|
[1] |
Clevis pin
|
L=9mm
|
| 9A. |
828177
|
[2] |
Clevis pin
|
L=12mm
|
| 10. |
940191
|
[3] |
Washer
|
|
| 11. |
61544
|
[3] |
Spring washer
|
|
| 12. |
828182
|
[1] |
Clevis pin
|
|
| 13. |
664822
|
[6] |
Split pin
|
(907824)
|
| 14. |
850452
|
[3] |
Fork
|
|
| 15. |
850361
|
[3] |
Cable attachment
|
|
| 16. |
956078
|
[6] |
Cross recessed screw
|
|
| 17. |
955780
|
[6] |
Hexagon nut
|
|
| 18. |
905448
|
[3] |
Screw
|
Early type (905447)
|
