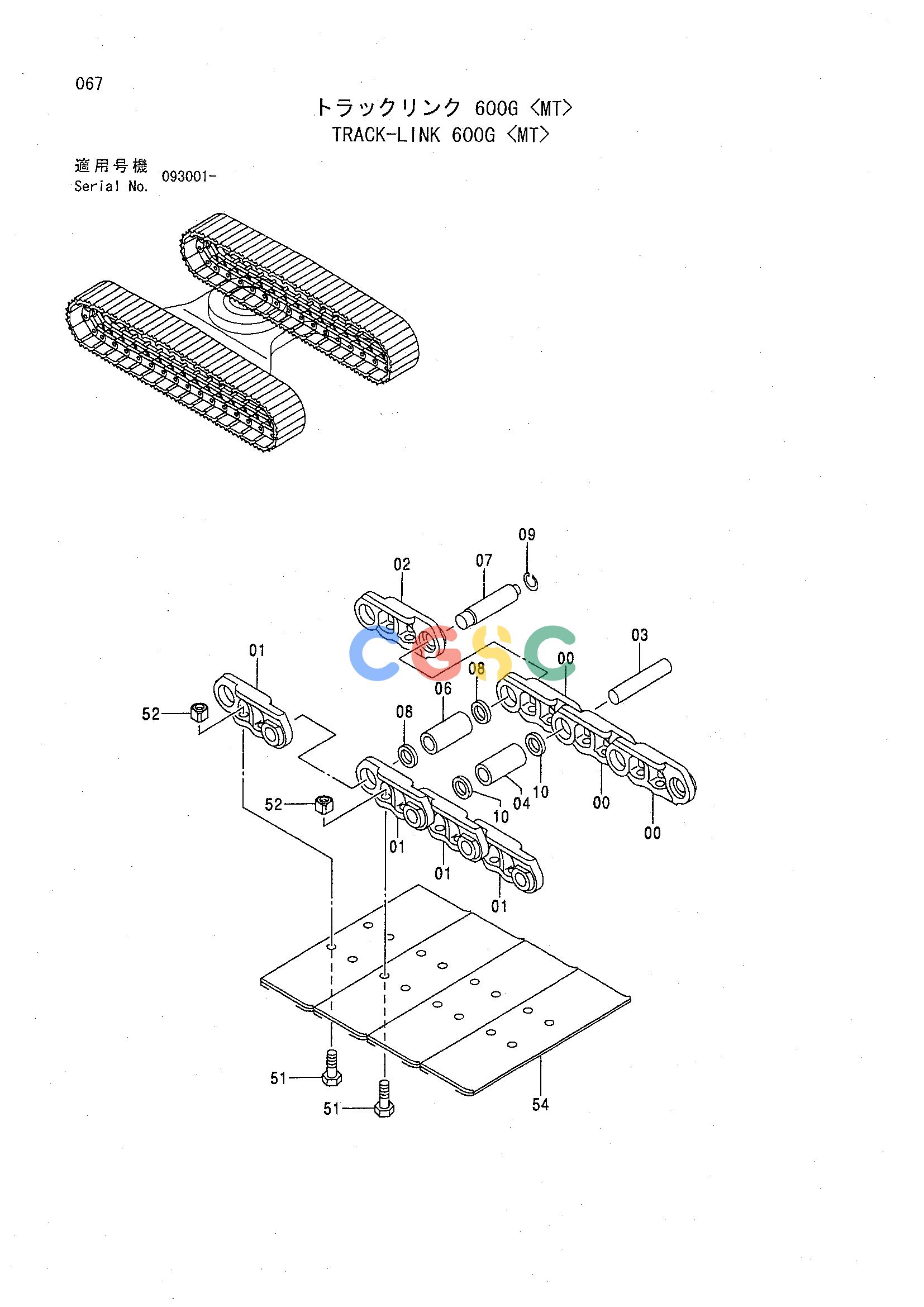

日立零件查询（CHR70）TRACK-LINK 600G <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
843 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9170783 | [2] | TRACK-LINK ASS'Y | |
| 00-09. | 9147695 | [1] | TRACK-LINK ASS'Y | |
| 00. | 1020006 | [41] | TRACK-LINK;B | |
| 01. | 1020007 | [42] | TRACK-LINK;B | |
| 02. | 4345300 | [1] | TRACK-LINK;M | |
| 03. | 4314671 | [41] | PIN | |
| 04. | 4345301 | [41] | BUSHING | |
| 06. | 4345302 | [1] | BUSHING;MASTER | |
| 07. | 4267743 | [1] | PIN;MASTER | |
| 08. | 4379310 | [2] | COLLAR | |
| 09. | 4192666 | [1] | RING | |
| 10. | 4368183 | [82] | SEAL | |
| 51. | 4297905 | [168] | BOLT;SHOE | (TRIANGLE:900A) |
| 52. | 4247133 | [168] | NUT | |
| 54. | 2027982 | [42] | SHOE;GROUSER | |
