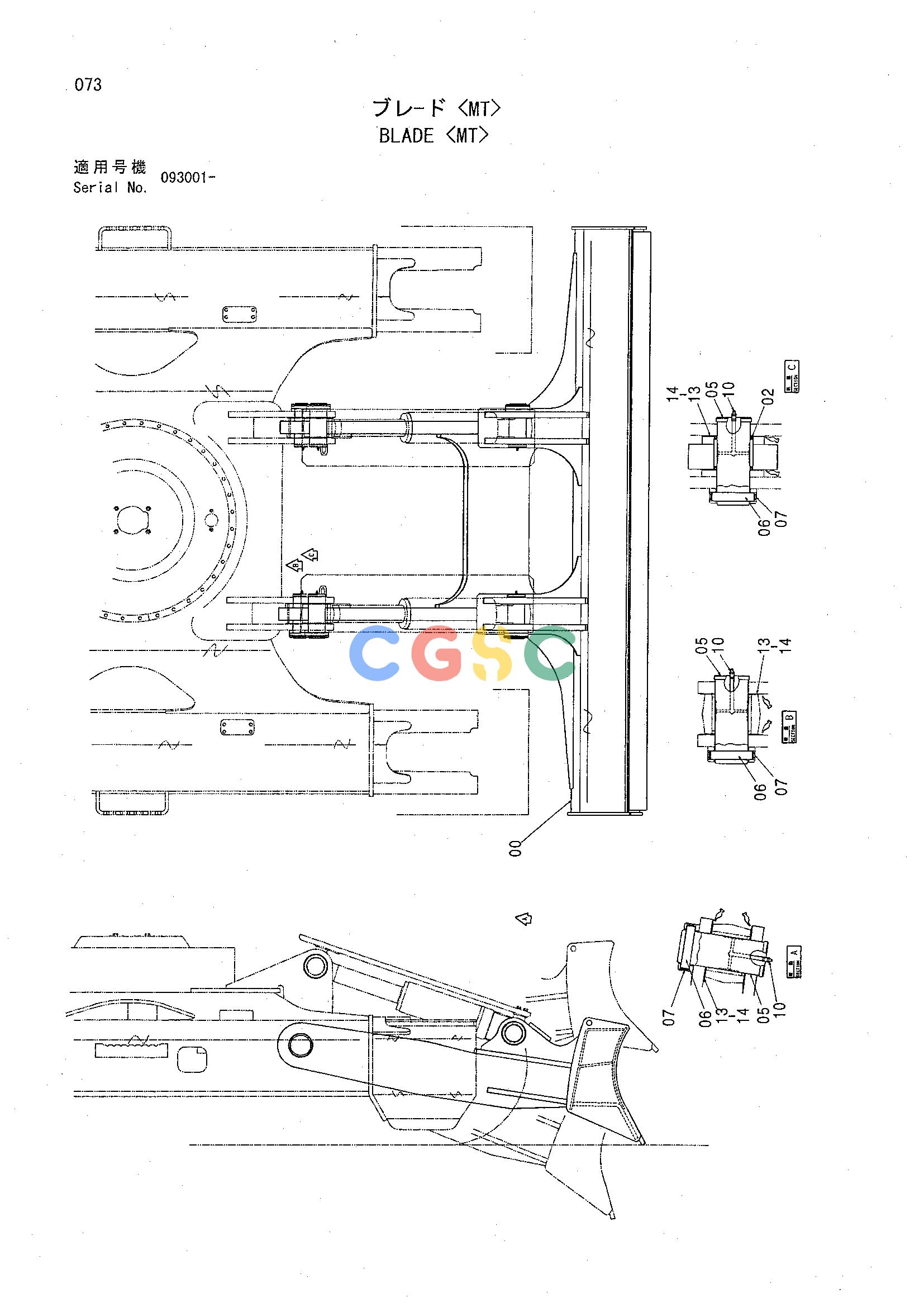

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 7038525 | [1] | BLADE | |
| 02. | 4067902 | [4] | SEAL;DUST | |
| 05. | 4390688 | [6] | PIN | |
| 06. | 4109669 | [6] | PIN | |
| 07. | 4098712 | [6] | RING | |
| 10. | J75481 | [6] | FITTING;GREASE | |
| 13. | 4366691 | [10] | PLATE;THRUST | |
| 14. | 4367409 | [6] | PLATE;THRUST |
广数供应链运营团队, 15 02月, 2025，浏览： 646 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 7038525 | [1] | BLADE | |
| 02. | 4067902 | [4] | SEAL;DUST | |
| 05. | 4390688 | [6] | PIN | |
| 06. | 4109669 | [6] | PIN | |
| 07. | 4098712 | [6] | RING | |
| 10. | J75481 | [6] | FITTING;GREASE | |
| 13. | 4366691 | [10] | PLATE;THRUST | |
| 14. | 4367409 | [6] | PLATE;THRUST |
