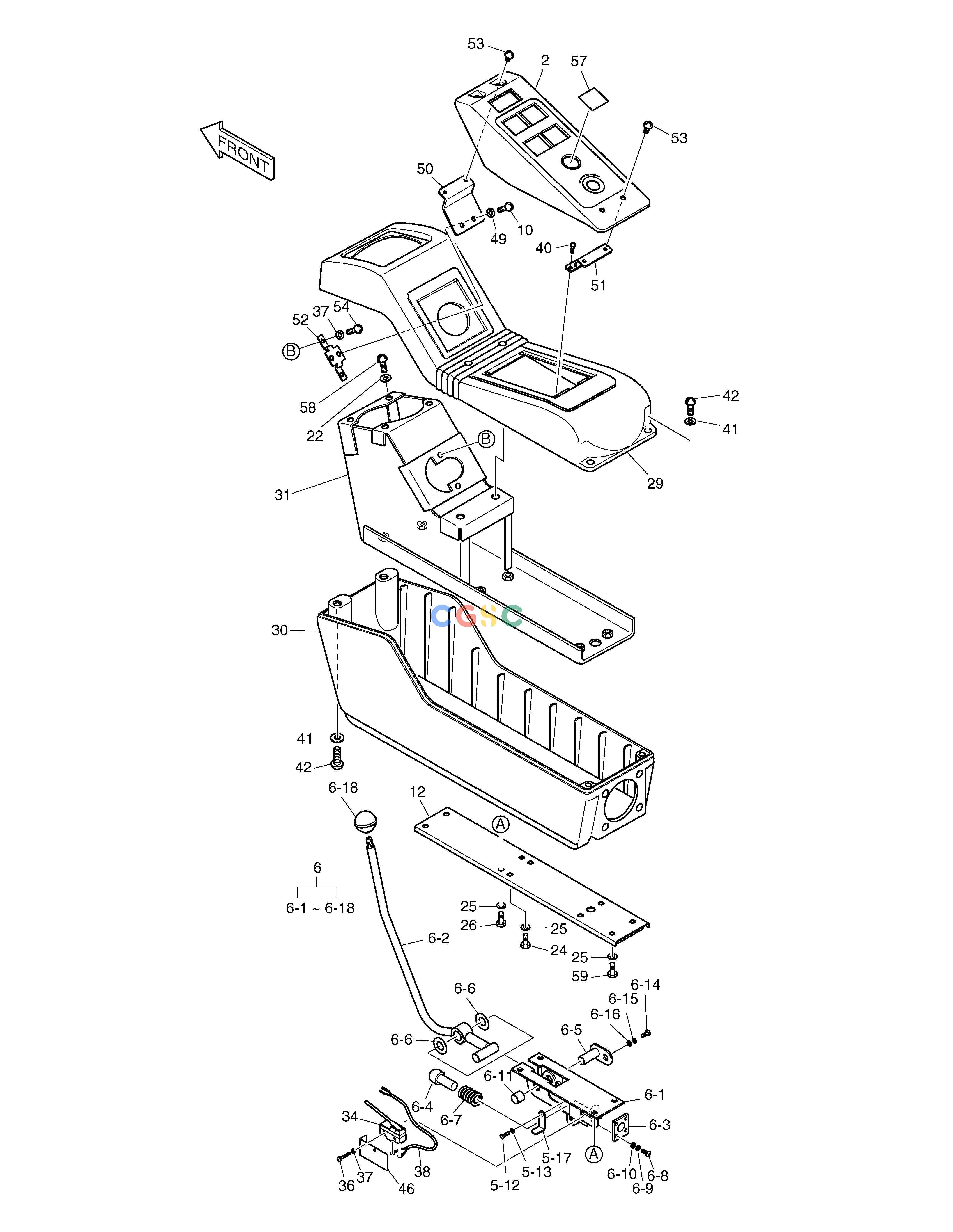

斗山零件查询CONTROL SYSTEM(2-1) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-00383A
|
[-] |
CONTROL STAND ASS'Y
|
|
| 10. |
2120-2166D23
|
[2] |
SCREW
|
|
| 12. |
195-00388A
|
[1] |
BRACKET(R.H)
|
|
| 2. |
621-01083A
|
[1] |
COVER;SWITCH(R.H)
|
|
| 22. |
S5110303
|
[4] |
WASHER;SPRING M6
|
|
| 24. |
2120-2166D25
|
[2] |
BOLT
|
|
| 25. |
2114-1898D2
|
[10] |
WASHER
|
|
| 26. |
2120-2166D5
|
[6] |
BOLT
|
|
| 29. |
2125-1078B
|
[1] |
CASE;UPPER
|
|
| 30. |
125-00020
|
[1] |
CASE;LOWER
|
|
| 31. |
2195-3763B
|
[1] |
BRACKET
|
|
| 34. |
2549-9139
|
[1] |
SWITCH;MICRO
|
|
| 36. |
2120-2166D21
|
[2] |
BOLT M4X0.7X25
|
|
| 37. |
2114-1898D13
|
[4] |
WASHER
|
|
| 38. |
2530-1782
|
[1] |
HARNESS;MICRO SWITCH
|
|
| 40. |
2120-2166D22
|
[2] |
SCREW M3X0.5X12
|
|
| 41. |
2114-1898D4
|
[6] |
WASHER
|
|
| 42. |
2120-2166D23
|
[6] |
SCREW
|
|
| 46. |
621-00492
|
[1] |
COVER(R.H)
|
|
| 49. |
2114-1058D64
|
[2] |
WASHER
|
|
| 50. |
195-01102A
|
[1] |
BRACKET
|
|
| 51. |
195-01103A
|
[1] |
BRACKET
|
|
| 52. |
195-00389A
|
[1] |
BRACKET
|
|
| 53. |
2120-2166D18
|
[4] |
SCREW
|
|
| 54. |
2120-2166D33
|
[2] |
SCREW M4X0.7X10
|
|
| 57. |
190-00397
|
[1] |
PLATE;NAME
|
|
| 58. |
S0505053
|
[4] |
BOLT
|
|
| 59. |
2120-2166D38
|
[2] |
BOLT M8X1.25X35
|
|
| 6. |
133-00061A
|
[1] |
LEVER ASS'Y(R.H)
|
|
| 6-1. |
191-00233A
|
[1] |
PLATE(R.H)
|
|
| 6-10. |
S5000113
|
[4] |
WASHER
|
|
| 6-11. |
2110-1184D29
|
[1] |
. BUSH;DU
|
|
| 6-12. |
2120-2166D19
|
[1] |
. BOLT M6X1.0X12
|
|
| 6-13. |
2114-1898D3
|
[1] |
WASHER
|
|
| 6-14. |
2120-2166D31
|
[1] |
BOLT M5X0.8X12
|
|
| 6-15. |
2114-2031D2
|
[1] |
WASHER;SPRING M5
|
|
| 6-16. |
2114-1898D5
|
[1] |
WASHER
|
|
| 6-17. |
191-00232A
|
[1] |
PLATE
|
|
| 6-18. |
2132-1129
|
[1] |
GRIP
|
|
| 6-2. |
133-00060
|
[1] |
LEVER(R.H)
|
|
| 6-3. |
2116-1485
|
[1] |
PLATE
|
|
| 6-4. |
2123-2146A
|
[1] |
PIN
|
|
| 6-5. |
2123-2279A
|
[1] |
PIN
|
|
| 6-6. |
2114-1059D37
|
[2] |
. SHIM
|
|
| 6-7. |
2129-1432
|
[1] |
. SPRING
|
|
| 6-8. |
S3458583
|
[4] |
SCREW M4X0.7X12
|
|
| 6-9. |
S5102103
|
[4] |
WASHER
|
|
