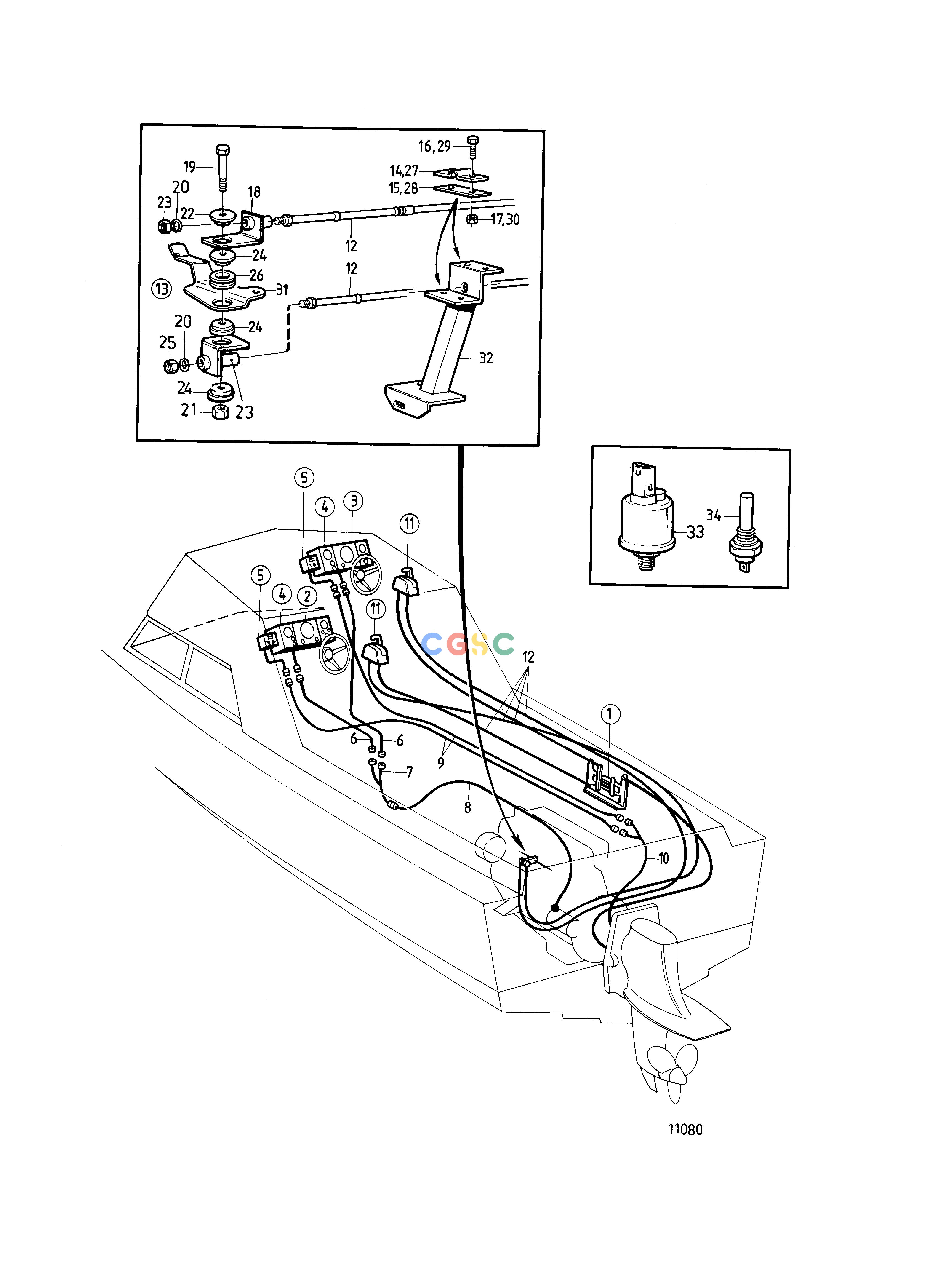

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BMiscellaneous EquipmentFlybridge Single Engine InstallationEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
231 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828164
|
[1] |
Connection plate
|
|
| 2. |
|
|
|
Std, see group 3
|
| 3. |
864043
|
[1] |
Instrument panel
|
|
| 4. |
858874
|
[1] |
Instrument panel
|
|
| 5. |
|
|
|
See group 4A
|
| 6. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 6. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 6. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 7. |
1140598
|
[1] |
Distributing contact
|
|
| 8. |
|
|
|
Std, see group 3
|
| 9. |
853052
|
[1] |
Extension cable
|
L=3000mm
|
| 10. |
|
|
|
See group 3
|
| 11. |
|
|
|
|
| 12. |
7745930_087
|
|
control cable
|
|
| 13. |
861221
|
[1] |
Engine speed control
|
|
| 14. |
21471054
|
[1] |
Bracket
|
|
| 15. |
819068
|
[1] |
Washer
|
|
| 16. |
956078
|
[2] |
Cross recessed screw
|
|
| 17. |
951674
|
[2] |
Lock nut
|
|
| 18. |
861215
|
[1] |
Bracket
|
|
| 19. |
955275
|
[1] |
Hexagon screw
|
|
| 20. |
955971
|
[2] |
O-ring
|
|
| 21. |
946035
|
[1] |
Lock nut
|
|
| 22. |
843105
|
[1] |
Spacer washer
|
|
| 23. |
861214
|
[1] |
Bracket
|
|
| 24. |
843105
|
[3] |
Spacer washer
|
|
| 25. |
951674
|
[2] |
Lock nut
|
|
| 26. |
843109
|
[1] |
Bushing
|
|
| 27. |
21471054
|
[1] |
Bracket
|
|
| 28. |
819068
|
[1] |
Washer
|
|
| 29. |
956078
|
[2] |
Cross recessed screw
|
|
| 30. |
951674
|
[2] |
Lock nut
|
|
| 31. |
|
|
|
See group 2D
|
| 32. |
|
|
|
See group 2D
|
| 33. |
862568
|
[1] |
Oil pressure sensor
|
|
| 34. |
840074
|
[1] |
Temperature sensor
|
|
