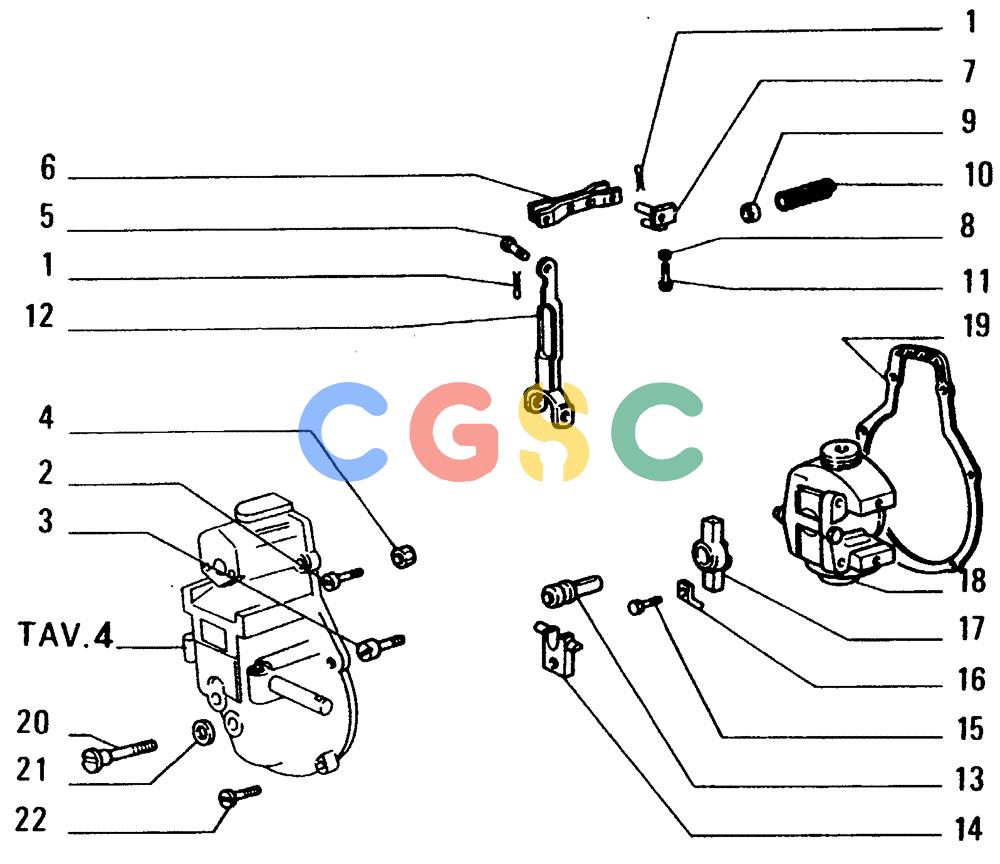

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0140[005]) - INJECTION EQUIPMENT-REGULATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
271 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10795001 | [2] | COTTER PIN,M1.6 x 8 | MOD1,3x13,7 |
| 2. | 772703 | [1] | SCREW | MKT Superseded by part number: |
| 3. | 774340 | [1] | SCREW | MOD |
| 4. | 774339 | [1] | NUT | MOD Superseded by part number: 42486181 |
| 5. | 772568 | [1] | PIN | MOD Superseded by part number: 1288726 |
| 6. | 773693 | [1] | YOKE | BRE Superseded by part number: 79048241 |
| 7. | 773695 | [1] | PIN | BRECLIP |
| 8. | 12035471 | [2] | LOCK WASHER | PLOLOCKWASHER 5,1x1 |
| 9. | 774246 | [1] | CAP WASHER | BREPLATE Superseded by part number: 79045920 |
| 10. | 774245 | [1] | SPRING | LEC Superseded by part number: 79045921 |
| 11. | 10389321 | [2] | SCREW | LEC5x0,8x10 Superseded by part number: 86585709 |
| 12. | 772847 | [1] | LEVER | MOD Superseded by part number: 79023670 |
| 13. | 772852 | [1] | PIN | LEC Superseded by part number: 79023669 |
| 14. | 772823 | [1] | UNIVERSAL JOINT | MODARTICULATION Superseded by part number: 1288706 |
| 15. | 10902221 | [2] | BOLT,Hex, M6 x 16mm, CL 8.8 | BHBBOLT, Hex, M6 x 16, 8.8 Superseded by part number: |
| 16. | 772567 | [2] | COVER PLATE | MODPLATE Superseded by part number: 79023646 |
| 17. | 772566 | [1] | BUSHING | JES Superseded by part number: 1288914 |
| 18. | 775137 | [1] | SPEED GOVERNOR | LECGOVERNOR - SEE TAV.8 |
| 19. | 772577 | [1] | SEAL | MOD Superseded by part number: 1306512 |
| 20. | 772579 | [1] | SCREW | MODSCREW Superseded by part number: 768766 |
| 21. | 772332 | [1] | SEAL | MOD Superseded by part number: 79038381 |
| 22. | 10377011 | [5] | SCREW | MKT6x1x25 |
