日立零件查询（CHR70）CYL.;BLADE (L) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
151 次

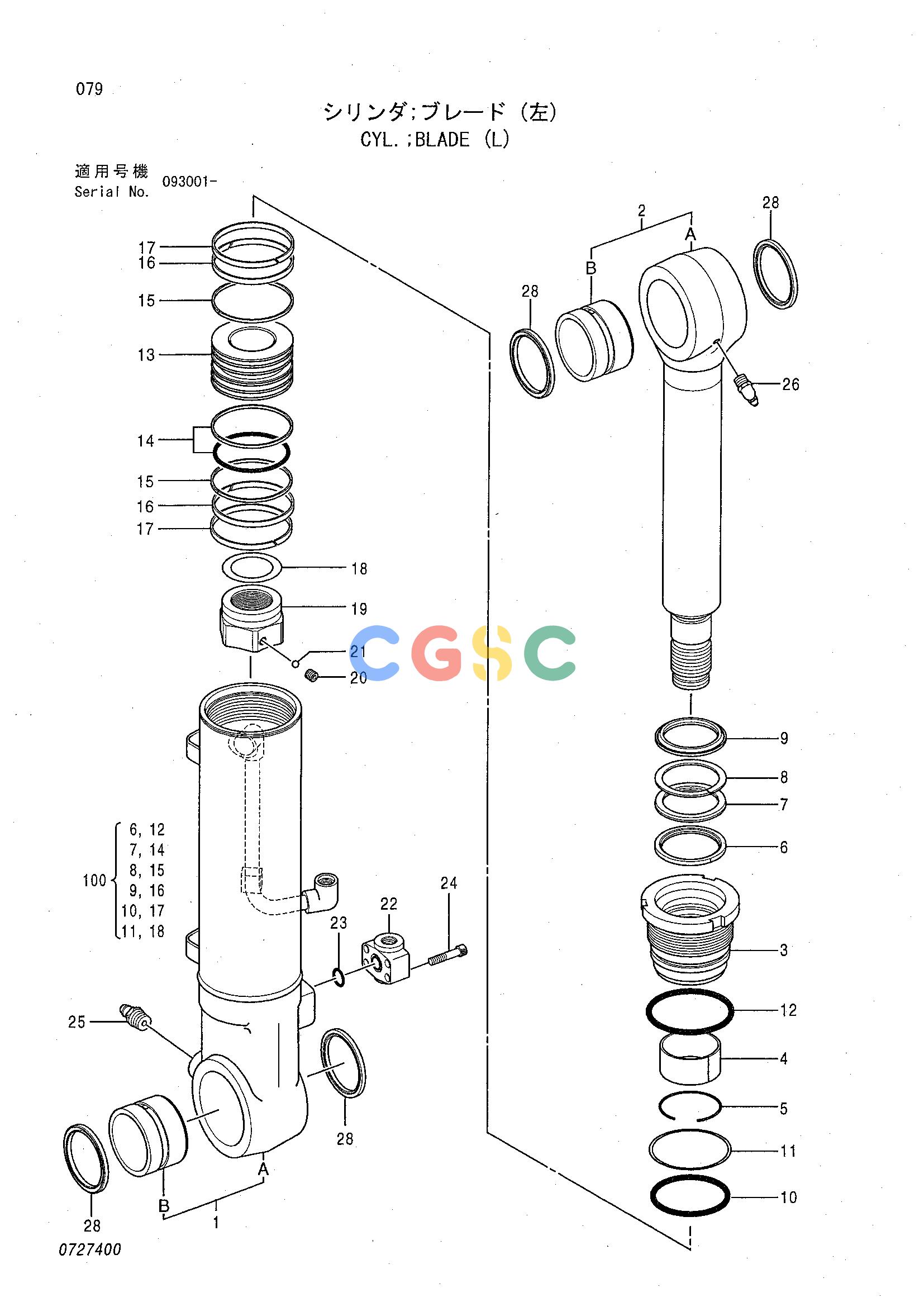

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4397513 | [1] | CYL.;BLADE (L) | 0727400
|
| 1. | 0727401 | [1] | TUBE;CYL. | |
| 1A. | +++++++ | [1] | TUBE;CYL. | |
| 1B. | 0686702 | [1] | BUSHING;PIN | |
| 2. | 0727102 | [1] | ROD;PISTON | |
| 2A. | +++++++ | [1] | ROD;PISTON | |
| 2B. | 0686702 | [1] | BUSHING;PIN | |
| 3. | 0686704 | [1] | HEAD;CYL. | |
| 4. | 0643402 | [1] | BUSHING | |
| 5. | 0271304 | [1] | RING;RETAINING | |
| 6. | 0271311 | [1] | RING | |
| 7. | 0271309 | [1] | PACKING;U-RING | |
| 8. | 0271310 | [1] | RING;BACK-UP | |
| 9. | 0666806 | [1] | RING;WIPER | |
| 10. | A811095 | [1] | O-RING | |
| 11. | 0254905 | [1] | RING;BACK-UP | |
| 12. | A810100 | [1] | O-RING | |
| 13. | 0686705 | [1] | PISTON | |
| 14. | 0240807 | [1] | RING;SEAL ASS'Y | |
| 15. | 0686706 | [2] | RING;BACK-UP | |
| 16. | 0686707 | [2] | RING | |
| 17. | 0254908 | [2] | RING | |
| 18. | 0326007 | [1] | SHIM | |
| 19. | 0667109 | [1] | NUT | |
| 20. | 0310612 | [1] | SCREW;SET | |
| 21. | 0111818 | [1] | BALL;STEEL | |
| 22. | 0686708 | [1] | JOINT | |
| 23. | 4509181 | [1] | O-RING | |
| 24. | 0310310 | [4] | BOLT;SOCKET | |
| 25. | J75481 | [1] | FITTING;GREASE | |
| 26. | J75581 | [1] | FITTING;GREASE | |
| 28. | 0408810 | [4] | RING;WIPER | |
| 100. | 4388027 | [1] | KIT;SEAL | |
