纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0140[007]) - INJECTION EQUIPMENT-REGULATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
206 次

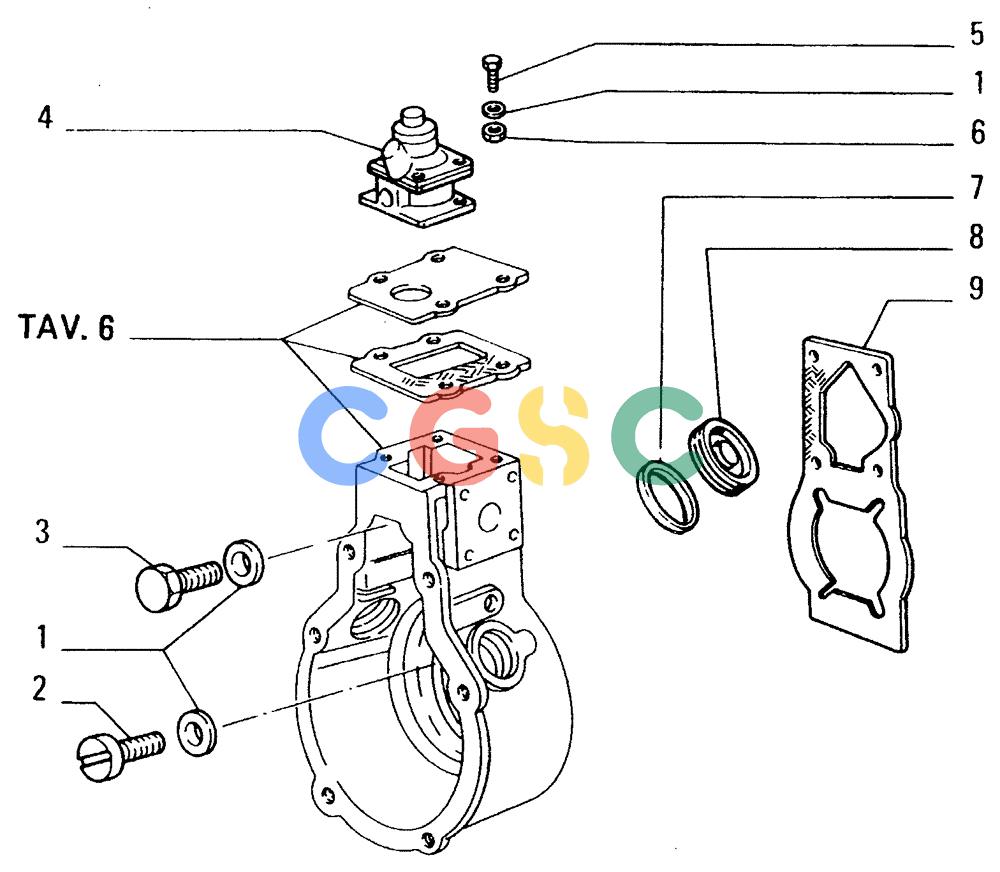

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 06455742 | [12] | WASHER, LOCK | FOLOCKWASHER 6,1x1.3 Superseded by part number: 86517328 |
| 2. | 13276414 | [6] | SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd | LEC Superseded by part number: 13276411 |
| 3. | 10902621 | [2] | SCREW,Hex, M6 x 25mm, Cl 8.8 | TTFBOLT, Hex, M6 x 25, 8.8 Superseded by part number: 10902624 |
| 4. | 774661 | [1] | SPEED GOVERNOR | BREEXCESS FUEL CONTROL - ASSEMBLY SEE TAV.9 |
| 5. | 773712 | [4] | SCREW | MOD |
| 6. | 79045922 | [4] | WASHER | LEC Superseded by part number: 773699 |
| 7. | 79023684 | [2] | GASKET | LEC Superseded by part number: 1288522 |
| 8. | 79023666 | [2] | PLUG | LEC Superseded by part number: 9967280 |
| 9. | 79023663 | [1] | GASKET | LEC Superseded by part number: 1300955 |
