纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0140[009]) - EXCESS FUEL CONTROL-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
717 次

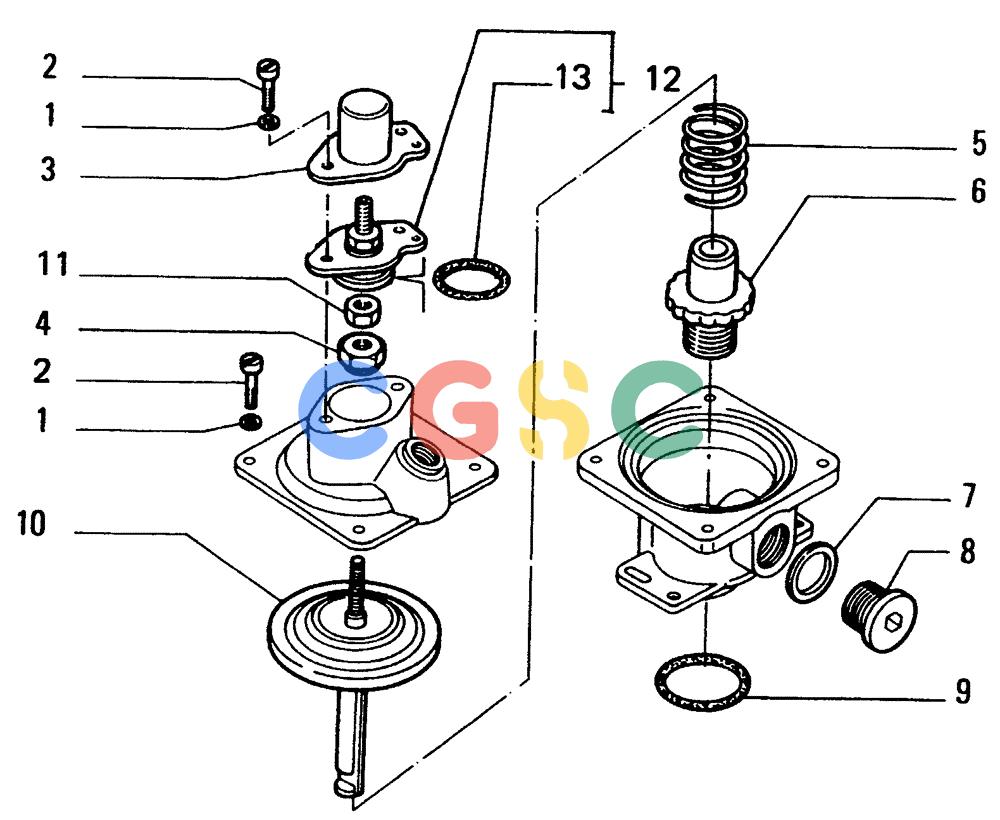

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 06455742 | [6] | WASHER, LOCK | FOLOCKWASHER 6,1x1,3 Superseded by part number: 86517328 |
| 2. | 79033447 | [6] | SCREW | MOD |
| 3. | 772726 | [1] | FLANGE COVER CAP | MODBOOT Superseded by part number: 79033449 |
| 4. | 773577 | [1] | NUT | MOD Superseded by part number: 79033452 |
| 5. | 774401 | [1] | SPRING | BRE Superseded by part number: 8194143 |
| 6. | 773566 | [1] | COVER | GIBUSHING Superseded by part number: 86517181, 86517181, 9967299 |
| 7. | 772057 | [1] | SEALING RING | MODRING Superseded by part number: 16508360 |
| 8. | 773576 | [1] | | GIPLUG Superseded by part number: 86508796, 86508796, 9967300, 86508796, 9967300, BER773576 |
| 9. | 773564 | [1] | O-RING | MOD0-RING Superseded by part number: 1306692 |
| 10. | 773963 | [1] | DIAPHRAGM | MODROD Superseded by part number: 42490138 |
| 11. | 15896221 | [1] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 12. | 773964 | [1] | LEVER | GIPLATE Superseded by part number: 79046250, 79046250, 86517186 |
| 13. | 772387 | [1] | O-RING | MOD0-RING Superseded by part number: 1288052 |
