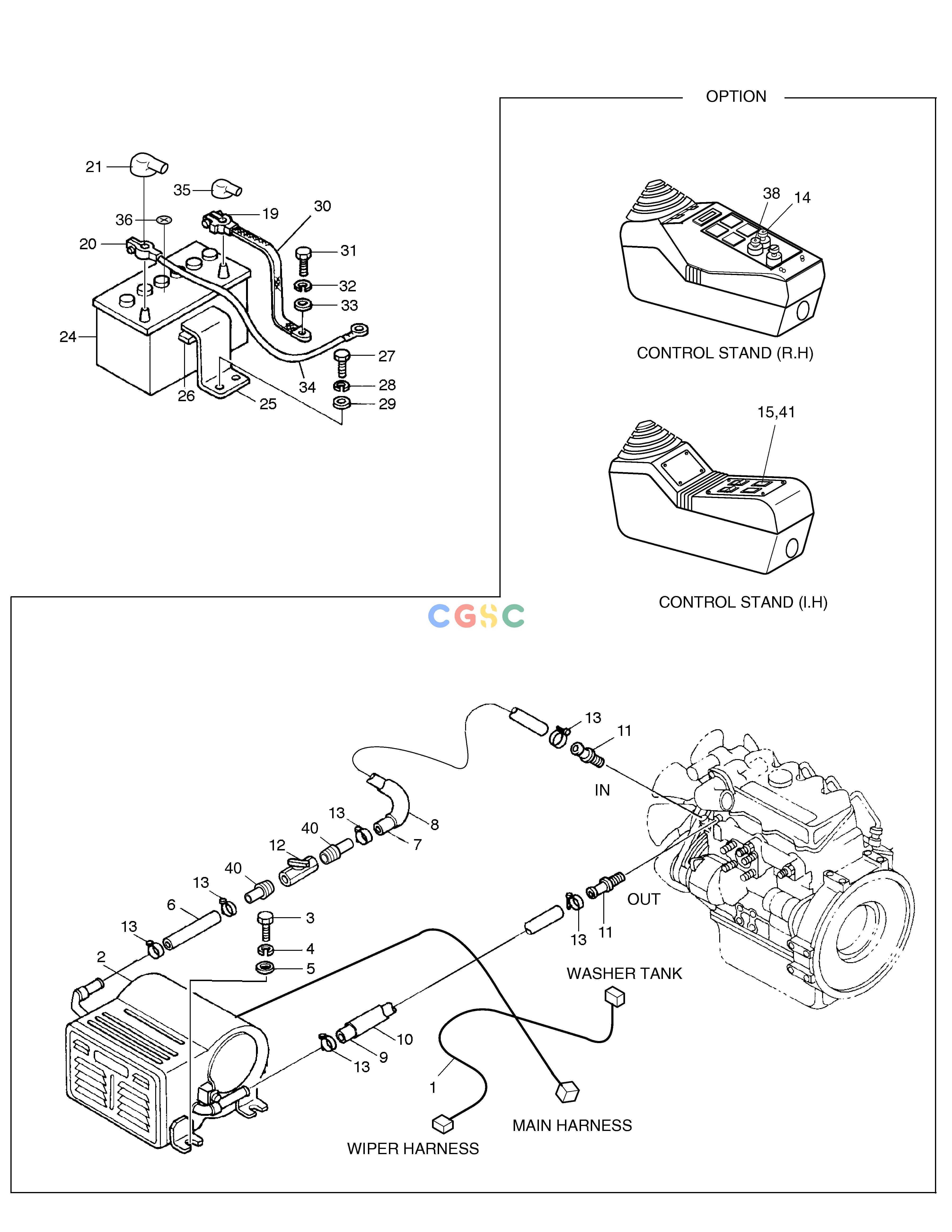

斗山零件查询ELECTRIC SYSTEM(2-1) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
173 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2530-1658B
|
[1] |
HARNESS;CABIN
|
|
| 10. |
2185-1308D22
|
[1] |
HOSE
|
|
| 11. |
2181-2774
|
[2] |
NIPPLE;HOSE
|
|
| 12. |
186-00001
|
[1] |
COCK;DRAIN
|
|
| 13. |
S8450012
|
[6] |
CLAMP
|
|
| 14. |
2549-1132D3
|
[1] |
SWITCH;BLOWER
|
|
| 15. |
2549-9114
|
[2] |
SWITCH;WIPER & WASHER
|
|
| 19. |
2550-1014D2
|
[1] |
TERMINAL,BATTERY(-)
|
|
| 2. |
2920-9036
|
[1] |
HEATER
|
|
| 20. |
2550-1014D1
|
[1] |
TERMINAL,BATTERY(+)
|
|
| 21. |
2160-1212
|
[1] |
CAP,BATT. TML(+)
|
|
| 24. |
2506-9009
|
[1] |
BATTERY
|
|
| 25. |
2506-1108
|
[1] |
CLAMP;BATTERY
|
|
| 26. |
2161-2055
|
[1] |
RUBBER;PLATE
|
|
| 27. |
S0512053
|
[2] |
BOLT
|
|
| 28. |
S5102603
|
[2] |
. WASHER
|
|
| 29. |
2114-1058D10
|
[2] |
WASHER
|
|
| 3. |
S0511853
|
[4] |
BOLT
|
|
| 30. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 31. |
S0511853
|
[1] |
BOLT
|
|
| 32. |
S5102603
|
[1] |
. WASHER
|
|
| 33. |
S5010613
|
[1] |
WASHER
|
|
| 34. |
2553-1275D38
|
[1] |
CABLE;BATT.-STARTER
|
|
| 35. |
2160-1213
|
[1] |
CAP,BATT. TML(-)
|
|
| 36. |
2190-3140
|
[1] |
LABEL
|
|
| 38. |
545-00002
|
[1] |
LIGHTER;CIGAR
|
|
| 4. |
S5102603
|
[4] |
. WASHER
|
|
| 40. |
181-00096
|
[2] |
NIPPLE;HOSE
|
|
| 41. |
2190-2036D14
|
[1] |
INSERT;WIPER & WASHER
|
|
| 5. |
S5010613
|
[4] |
WASHER
|
|
| 6. |
2185-1308D12
|
[1] |
HOSE
|
|
| 7. |
2185-1308D23
|
[1] |
HOSE-1300L
|
|
| 8. |
2185-1623D1
|
[1] |
HOSE
|
|
| 9. |
2185-1623D22
|
[1] |
HOSE
|
|
