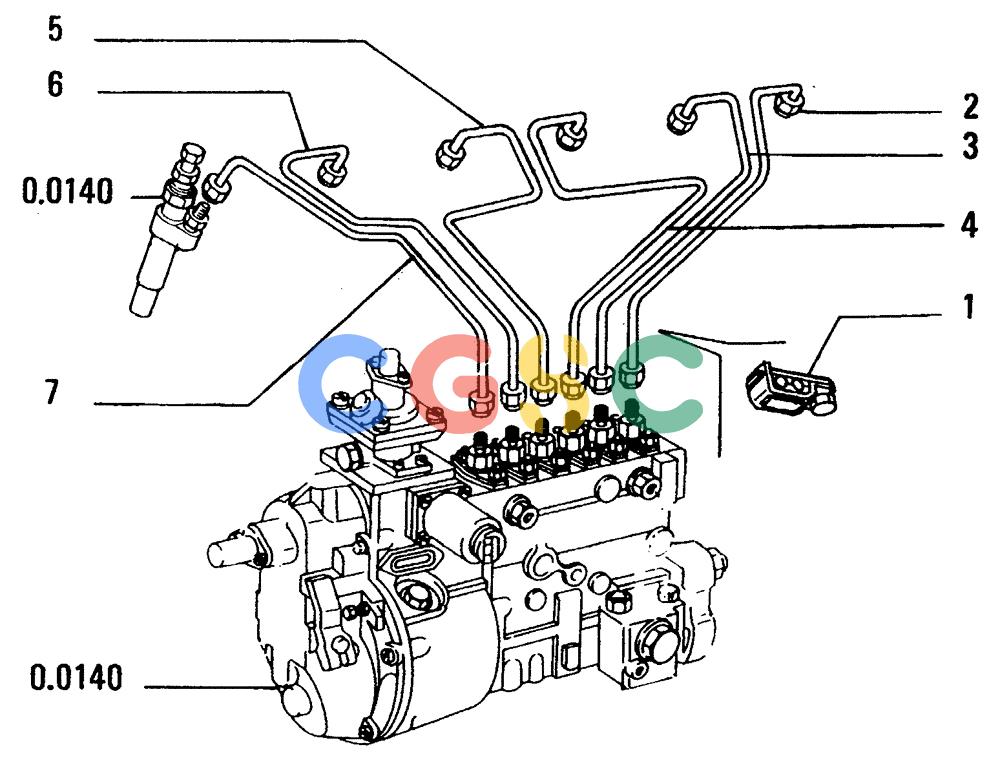

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0149[001]) - INJECTION EQUIPMENT-PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
308 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4806611 | [6] | BRACKET | MOD |
| 2. | 4806748 | [1] | RIGID TUBE | MKTTUBE N.1 Superseded by part number: 4806746 |
| 3. | 4806749 | [1] | RIGID TUBE | MKTTUBE N.2 Superseded by part number: 4806746 |
| 4. | 4806750 | [1] | RIGID TUBE | MKTTUBE N.3 Superseded by part number: 4806746 |
| 5. | 4806751 | [1] | RIGID TUBE | MKTTUBE N.4 Superseded by part number: 4806746 |
| 6. | 4806752 | [1] | RIGID TUBE | MKTTUBE N.5 Superseded by part number: 4806746 |
| 7. | 4806753 | [1] | RIGID TUBE | MKTTUBE N.6 Superseded by part number: 4806746 |
