神钢零件查询(F4HFE613C B004) - ENGINE - 5801761363 - 47550882 (10/15-) (10.400.AE) - ENGINE, COOLING SYSTEM LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
623 次

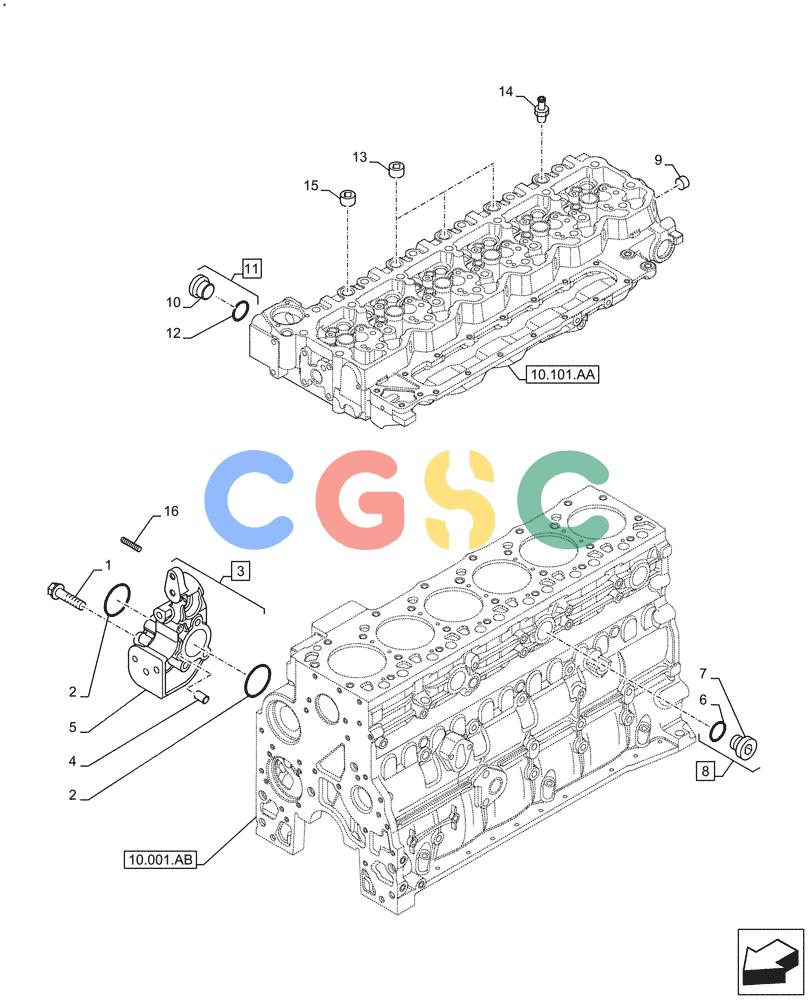

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852286 | [2] | BOLT,Flng, M10 x 1.5 x 130mm | TORM10 x 1.5 x 80 Superseded by part number: 16599125 |
| 1. | 2854424 | [1] | SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm | TOR Superseded by part number: 16676834 |
| 2. | 2854072 | [2] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 4. | 98405182 | [2] | DOWEL | TOR |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSupport, Incl in 3 |
| 6. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TORID = 13.3 x 2.2 Superseded by part number: 17281681 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 9 |
| 8. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORASSY, Incl 6, 7 |
| 9. | 4893036 | [2] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 11 |
| 11. | 4895080 | [1] | HEX SOCKET PLUG,M22 x 1.5 | TORASSY, Incl 10, 12 |
| 12. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TORID = 19.3 x 2.2 Superseded by part number: 504062710 |
| 13. | 4895078 | [4] | PIPE PLUG,1/2"-14 | TOR |
| 15. | 4895118 | [1] | FITTING | LEC |
| 16. | 16748734 | [3] | SCREW | TOR |
