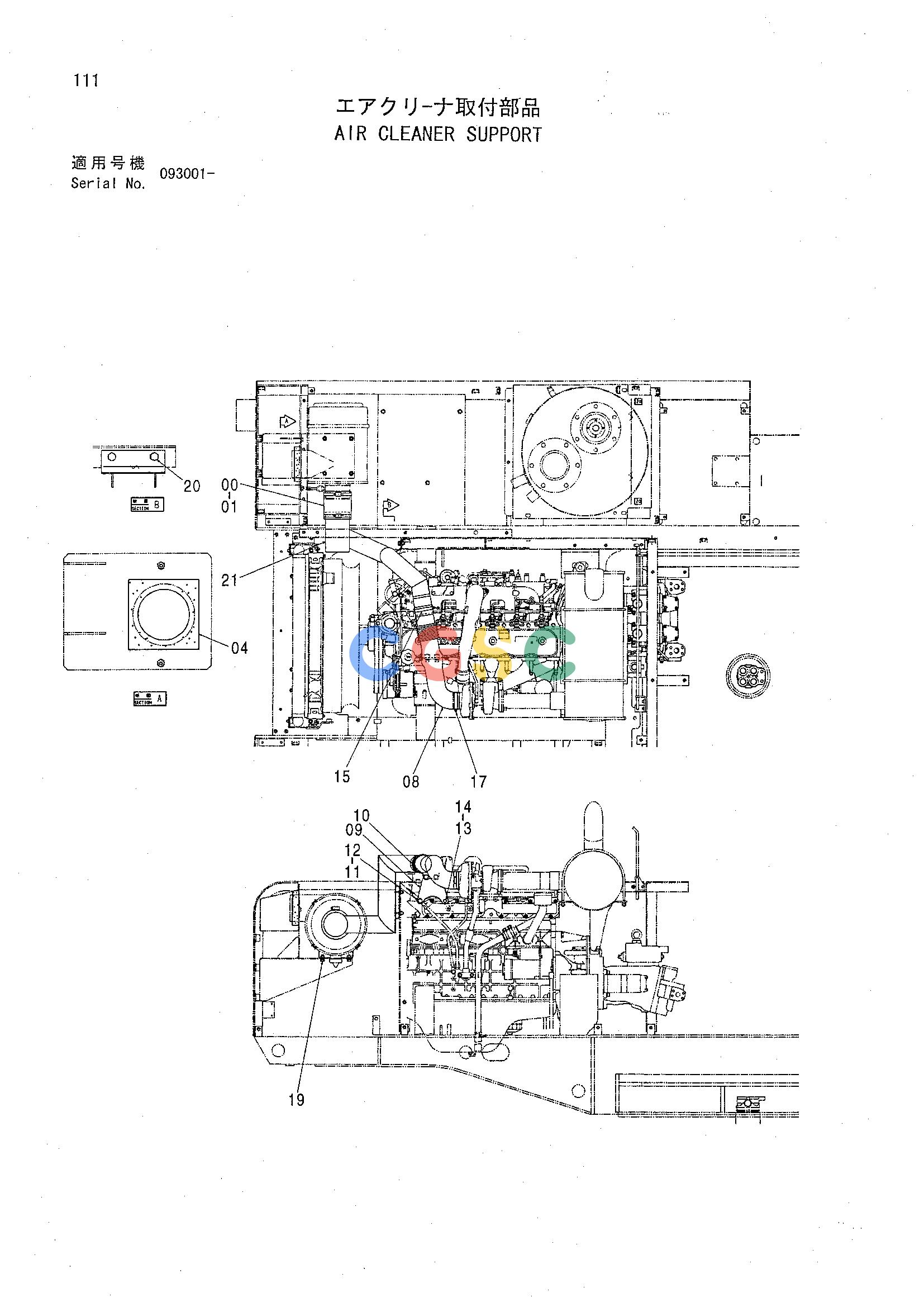

日立零件查询（CHR70）AIR CLEANER SUPPORT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
314 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4430718 | [1] | HOSE;AIR | |
| 01. | 4512716 | [2] | CLAMP;HOSE | |
| 04. | 4380787 | [1] | RUBBER | |
| 08. | 4271598 | [1] | DUCT;AIR | |
| 09. | 9742714 | [1] | BRACKET | |
| 10. | J021030 | [2] | BOLT;SEMS | |
| 10. | J271030 | [2] | BOLT;SEMS | TJ901030 |
| 10. | J271030 | [2] | BOLT;SEMS | TJ222010 |
| 11. | M171022 | [1] | BOLT;SEMS | |
| 11. | J841025 | [1] | BOLT;SEMS | TJ241025 |
| 11. | J841025 | [1] | BOLT;SEMS | TJ222010 |
| 12. | A590110 | [1] | WASHER;PLANE | |
| 13. | J900816 | [1] | BOLT | |
| 14. | A590908 | [1] | WASHER;SPRING | |
| 15. | 4507512 | [1] | CLAMP;HOSE | |
| 17. | 4282482 | [1] | CLAMP;HOSE | |
| 19. | J021025 | [4] | BOLT;SEMS | |
| 19. | J271025 | [4] | BOLT;SEMS | TJ901025 |
| 19. | J271025 | [4] | BOLT;SEMS | TJ222010 |
| 20. | J011025 | [2] | BOLT;SEMS | |
| 20. | J271025 | [2] | BOLT;SEMS | TJ901025 |
| 20. | J271025 | [2] | BOLT;SEMS | TJ222010 |
| 21. | 8076384 | [1] | PIPE;FILTER | |
