斗山零件查询FRONT(1) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
274 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2707-7079
|
[-] |

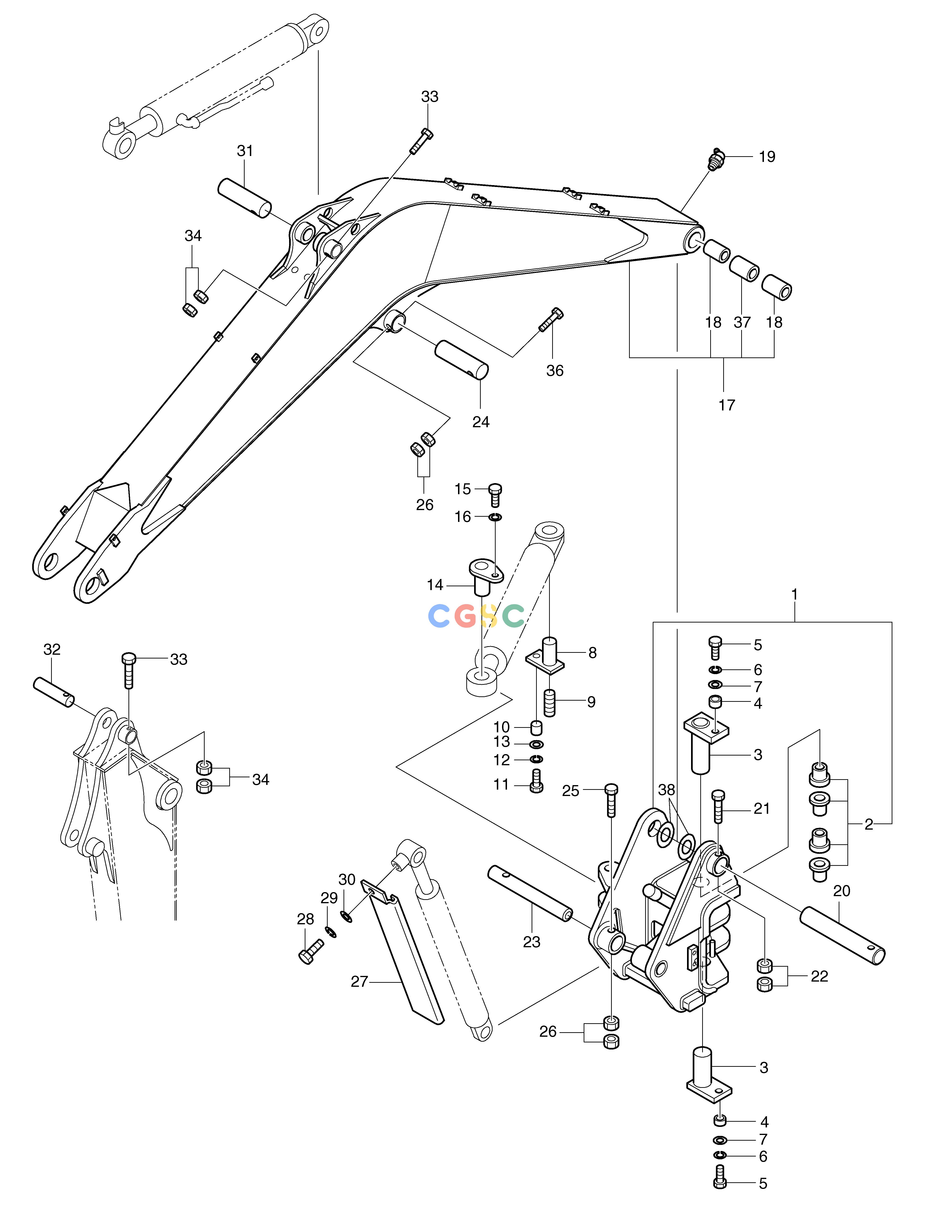

FRONT(1)
|
|
| 1. |
2707-1010B
|
[1] |
SWING POST ASS'Y
|
|
| 10. |
2114-1776
|
[1] |
COLLAR
|
|
| 11. |
S0515053
|
[1] |
BOLT M12X1.75X25
|
|
| 12. |
S5102703
|
[1] |
WASHER
|
|
| 13. |
2114-1776
|
[1] |
COLLAR
|
|
| 14. |
2123-2120A
|
[1] |
PIN
|
|
| 14. |
2123-2120B
|
[1] |
PIN
|
|
| 15. |
S0514853
|
[1] |
BOLT
|
|
| 16. |
S5102703
|
[1] |
WASHER
|
|
| 17. |
2701-1391B
|
[1] |
BOOM ASS'Y
|
|
| 17. |
2701-1391C
|
[1] |
BOOM ASS'Y
|
2701-1391E
|
| 17. |
2701-1391E
|
[1] |
BOOM ASS'Y
|
|
| 17. |
2701-1391A
|
[1] |
BOOM ASS'Y
|
2701-1391B
|
| 18. |
2110-1313
|
[2] |
BUSH
|
|
| 19. |
S6710040
|
[1] |
NIPPLE;GREASE
|
|
| 2. |
2110-1286
|
[4] |
BUSH
|
|
| 20. |
2123-2164
|
[1] |
PIN
|
|
| 21. |
S0559153
|
[1] |
BOLT
|
|
| 22. |
S4012633
|
[2] |
NUT
|
|
| 23. |
2123-2163
|
[1] |
PIN
|
|
| 24. |
2123-2121
|
[1] |
PIN
|
|
| 25. |
S0559353
|
[2] |
BOLT M10X1.5X90
|
|
| 26. |
S4012633
|
[4] |
NUT
|
|
| 27. |
2621-3313A
|
[1] |
COVER;BOOM CYL
|
|
| 28. |
S0515053
|
[1] |
BOLT M12X1.75X25
|
|
| 29. |
S5102703
|
[1] |
WASHER
|
|
| 3. |
2123-2178
|
[2] |
PIN
|
|
| 30. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 31. |
2123-2116
|
[1] |
PIN
|
|
| 32. |
2123-2165
|
[1] |
PIN
|
|
| 33. |
S0558953
|
[2] |
BOLT
|
|
| 34. |
S4012633
|
[4] |
NUT
|
|
| 36. |
S0559153
|
[1] |
BOLT
|
|
| 37. |
2114-1812
|
[1] |
SPACER
|
|
| 38. |
2114-1059D186
|
[2] |
SHIM
|
|
| 4. |
2114-1770
|
[2] |
COLLAR
|
|
| 5. |
S0521561
|
[2] |
BOLT M16X2.0X45
|
|
| 6. |
S5102901
|
[2] |
. WASHER;SPRING
|
|
| 7. |
2114-1771
|
[2] |
WASHER
|
|
| 8. |
2123-2111A
|
[1] |
PIN
|
2123-2111B
|
| 8. |
2123-2111B
|
[1] |
PIN
|
|
| 9. |
2181-1116D1
|
[1] |
PLUG
|
|
