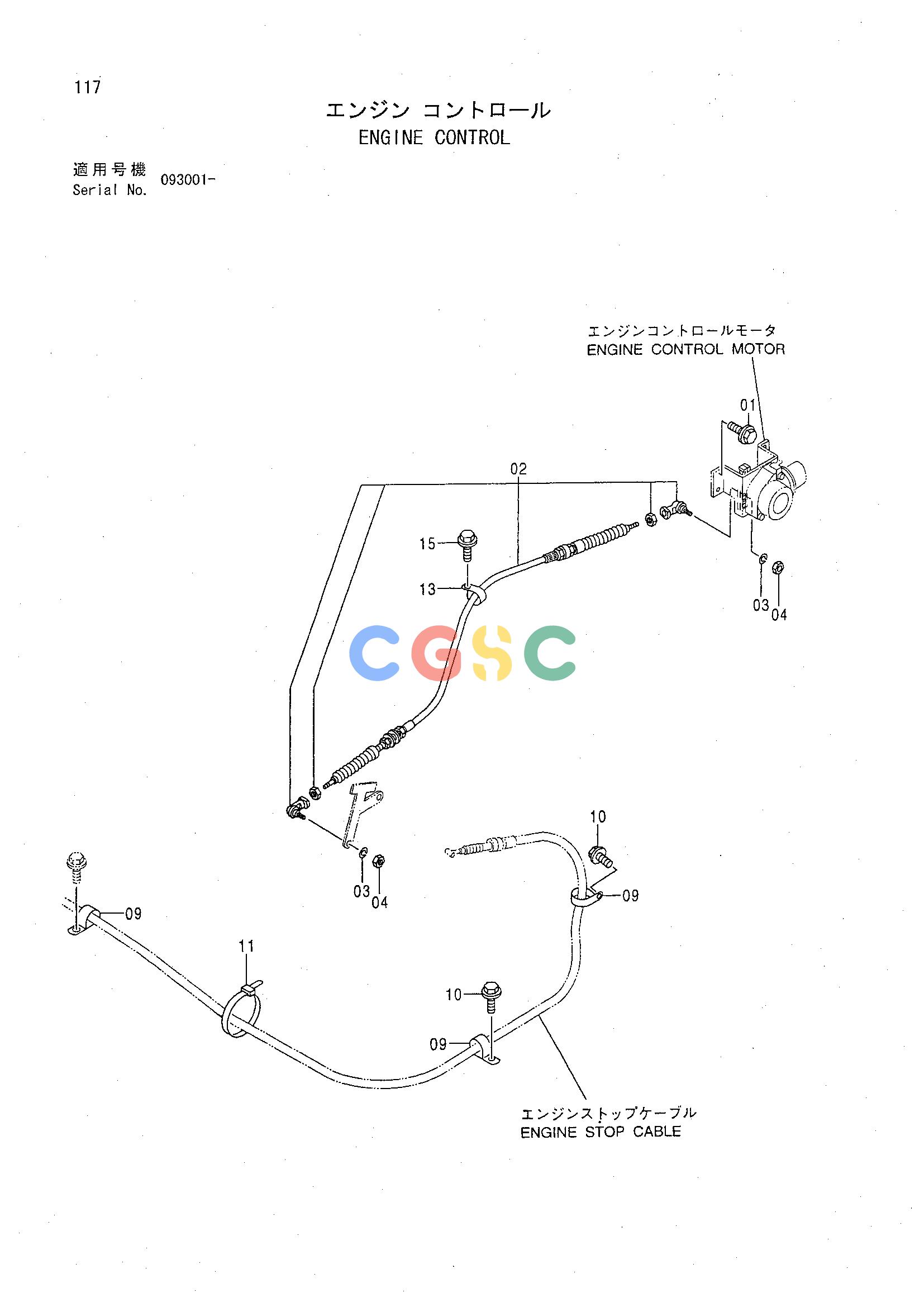

日立零件查询（CHR70）ENGINE CONTROL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
591 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | J021030 | [4] | BOLT;SEMS | |
| 01. | J271030 | [4] | BOLT;SEMS | TJ901030 |
| 01. | J271030 | [4] | BOLT;SEMS | TJ222010 |
| 02. | 4341761 | [1] | CABLE;CONTROL | |
| 03. | A590906 | [2] | WASHER;SPRING | |
| 04. | M500605 | [2] | NUT | |
| 09. | 4190276 | [3] | CLIP | |
| 10. | J011020 | [2] | BOLT;SEMS | |
| 10. | J271020 | [2] | BOLT;SEMS | TJ901020 |
| 10. | J271020 | [2] | BOLT;SEMS | TJ222010 |
| 11. | 4055312 | [1] | CLIP;BAND | |
| 13. | 4190261 | [1] | CLIP | |
| 15. | J021025 | [1] | BOLT;SEMS | |
| 15. | J271025 | [1] | BOLT;SEMS | TJ901025 |
| 15. | J271025 | [1] | BOLT;SEMS | TJ222010 |
