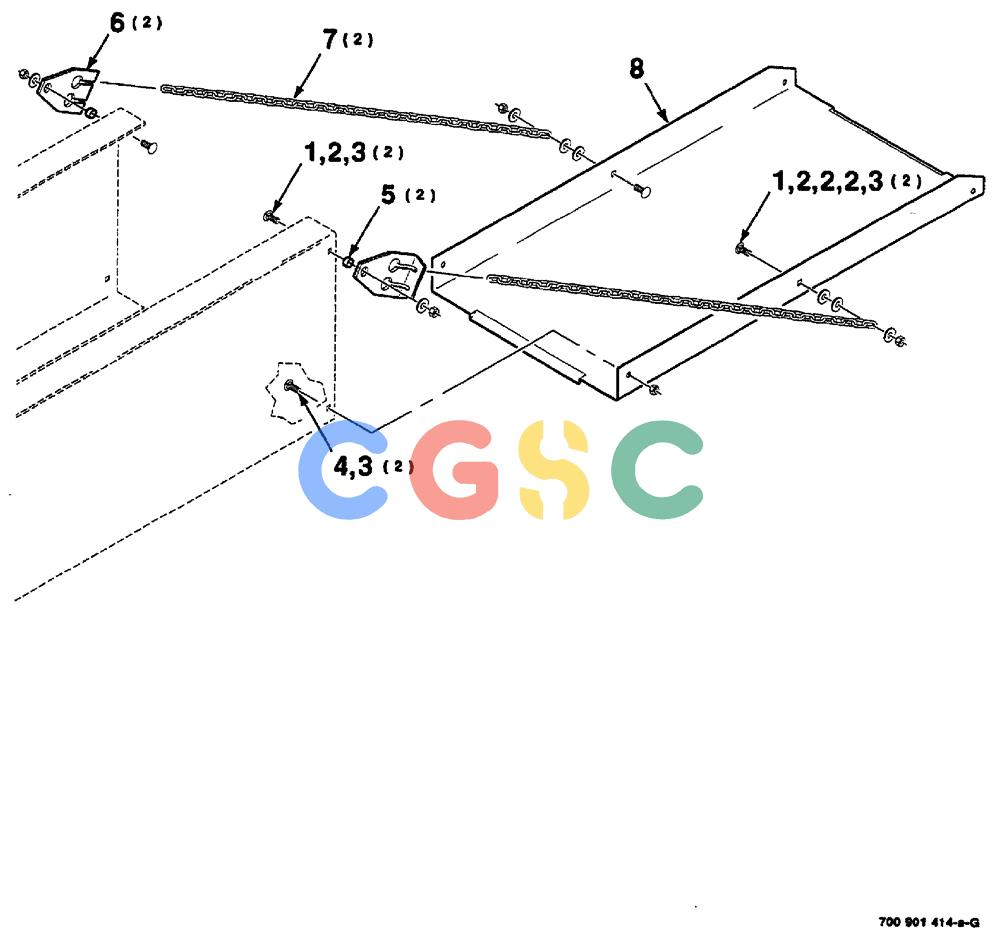

凯斯零件查询(8555) - CASE IH RECTANGULAR BALER (1/90-12/99) (09-16) - BALE CHUTE KIT, HK40416 , TO BE ORDERED FROM WHOLEGOODS ONLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
859 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK40416
|
[1] |
CHUTE (DOWNWARD)
|
ATT
KIT bale, complete
|
| 1. |
433-620
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 86508773
|
| 2. |
495-21044
|
[8] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
232-5316
|
[6] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
lock hex flange top, 3/8-16, GR/G Superseded by part number: 86521609
|
| 4. |
433-612
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 5. |
6475495
|
[2] |
BUSHING
|
CAS
|
| 6. |
6859102
|
[2] |
BRACKET
|
CAS
hanger
|
| 7. |
6559876
|
[2] |
CHAIN (AG)
|
CAS
|
| 8. |
6554448
|
[1] |
BAIL
|
CAS
table
|
