斗山零件查询FRONT(2) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
330 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2700-7079
|
[-] |

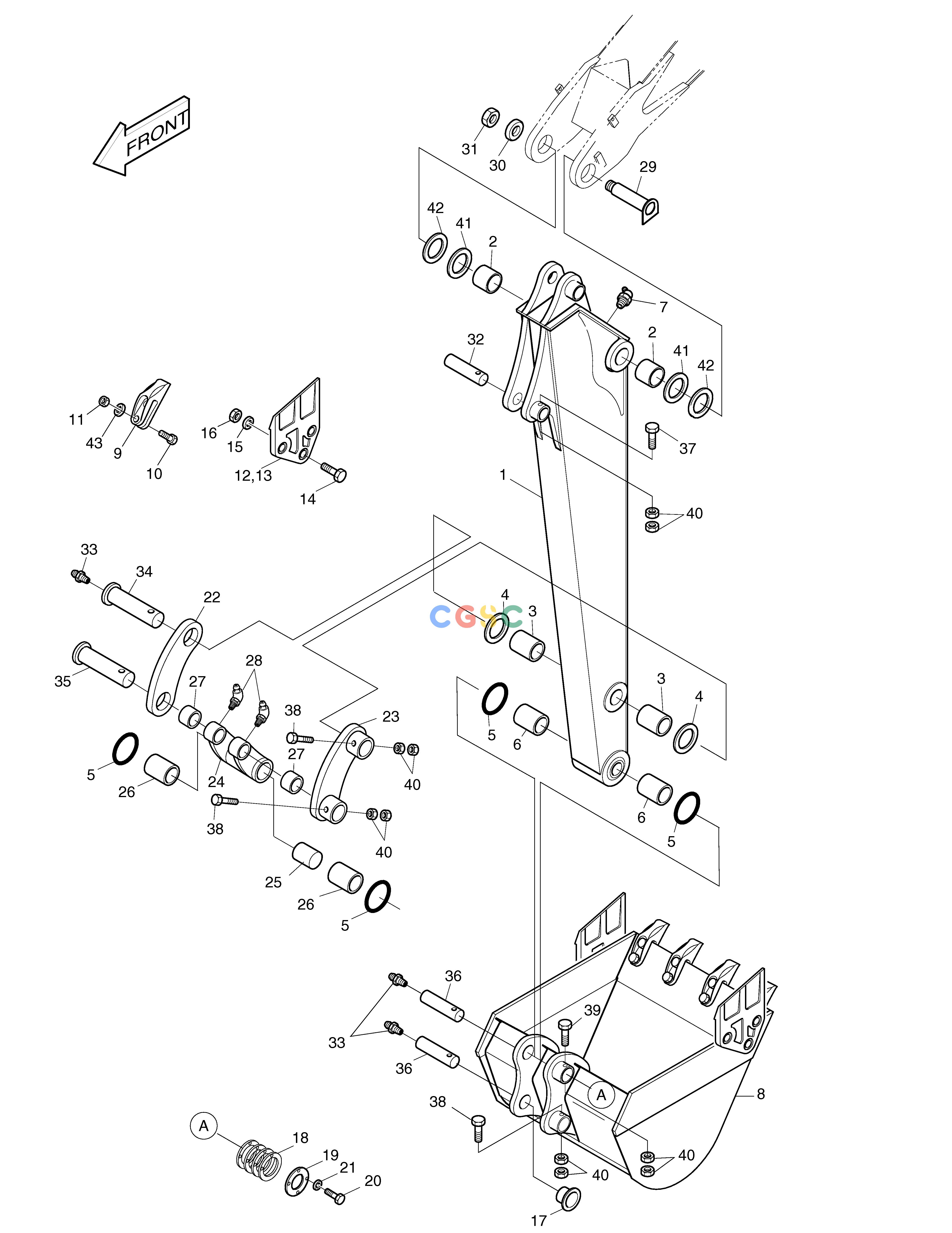

FRONT(2)
|
|
| 1. |
2701-1390A
|
[1] |
ARM ASS'Y
|
|
| 10. |
2120-2124
|
[8] |
BOLT
|
2120-2138A
|
| 10. |
2120-2138A
|
[8] |
BOLT
|
|
| 10. |
2120-2124
|
[8] |
BOLT
|
|
| 11. |
2121-1301
|
[8] |
NUT
|
|
| 12. |
2713-1206A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 13. |
2713-1207A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 14. |
S0515253
|
[6] |
. BOLT
|
|
| 15. |
S5102703
|
[6] |
WASHER
|
|
| 16. |
S4012733
|
[6] |
NUT
|
|
| 17. |
2110-1311
|
[1] |
BUSH;SLIDE
|
|
| 18. |
2114-1760
|
[5] |
WASHER
|
|
| 19. |
2191-3847
|
[1] |
COVER
|
|
| 2. |
2110-1312
|
[2] |
BUSH
|
|
| 20. |
S0512253
|
[4] |
BOLT M10X1.5X30
|
|
| 21. |
S5102603
|
[4] |
. WASHER
|
|
| 22. |
2155-1298A
|
[1] |
LINK;BUCKET(R.H)
|
|
| 23. |
2155-1292
|
[1] |
LINK;BUCKET(L.H)
|
|
| 24. |
2155-1293A
|
[1] |
DUMP LINK ASS'Y
|
|
| 24. |
2155-1293B
|
[1] |
DUMP LINK ASS'Y
|
|
| 24. |
2155-1293C
|
[1] |
DUMP LINK ASS'Y
|
|
| 25. |
2114-1807
|
[1] |
COLLAR
|
|
| 26. |
2110-1312
|
[2] |
BUSH
|
|
| 27. |
2110-1287
|
[1] |
BUSH
|
|
| 28. |
S6710150
|
[1] |
NIPPLE;GREASE
|
|
| 29. |
2123-2167
|
[1] |
PIN
|
|
| 3. |
2110-1312
|
[2] |
BUSH
|
|
| 30. |
2114-1058D60
|
[1] |
WASHER
|
|
| 31. |
30738-00030
|
[1] |
NUT;LOCK
|
0294-30000-A
|
| 32. |
2123-2165
|
[1] |
PIN
|
|
| 33. |
S6710040
|
[3] |
NIPPLE;GREASE
|
|
| 34. |
2123-2112A
|
[1] |
PIN
|
2123-2112B
|
| 34. |
2123-2112B
|
[1] |
PIN
|
|
| 35. |
2123-2117A
|
[1] |
PIN
|
2123-2117B
|
| 35. |
2123-2117B
|
[1] |
PIN
|
|
| 36. |
2123-2166
|
[2] |
PIN
|
|
| 37. |
S0558953
|
[1] |
BOLT
|
|
| 38. |
S0559153
|
[3] |
BOLT
|
|
| 39. |
S0559953
|
[1] |
BOLT M10X1.5X110
|
|
| 4. |
2180-1106D21
|
[2] |
SEAL;DUST
|
|
| 40. |
S4012633
|
[10] |
NUT
|
|
| 41. |
2114-1059D212
|
[24] |
SHIM
|
|
| 42. |
2114-1059D186
|
[10] |
SHIM
|
|
| 43. |
S5102901
|
[8] |
. WASHER;SPRING
|
|
| 5. |
30809-00438
|
[4] |
O-RING 65.4X78.4X6.5
|
|
| 6. |
2110-1312
|
[2] |
BUSH
|
|
| 7. |
S6710150
|
[1] |
NIPPLE;GREASE
|
|
| 8. |
2704-1359A
|
[1] |
BUCKET ASS'Y
|
2704-1359B
|
| 8. |
2704-1359B
|
[1] |
BUCKET ASS'Y
|
|
| 9. |
952-62001
|
[4] |
TOOTH
|
2713-1212
|
| 9. |
2713-1212
|
[4] |
TOOTH
|
|
