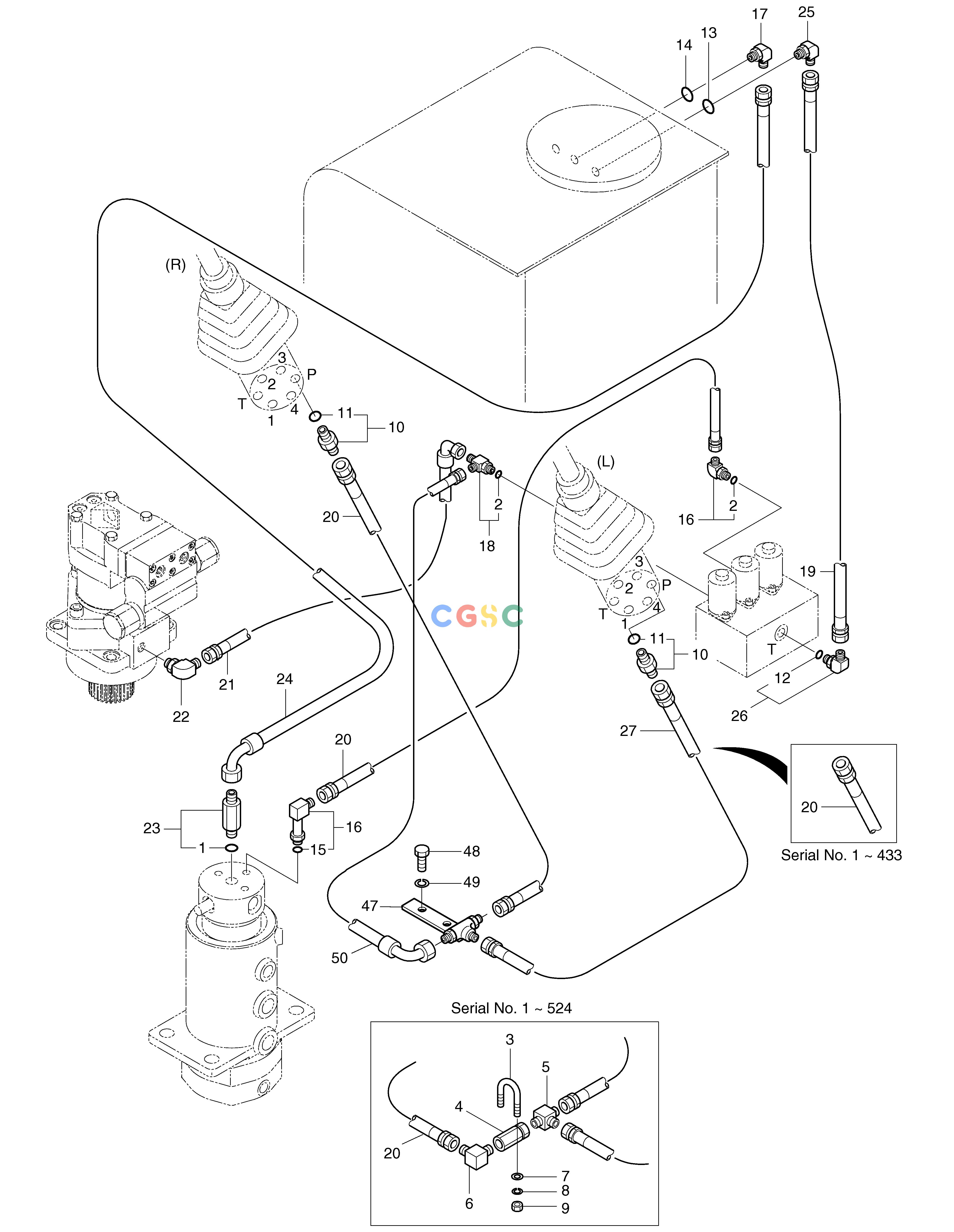

斗山零件查询HYDRAULIC PIPING(4) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-7093
|
[-] |
PILOT PIPING
|
|
| 1. |
S8000111
|
[1] |
O-RING
|
8202-009
|
| 10. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 11. |
S8000111
|
[2] |
O-RING
|
8202-009
|
| 12. |
S8000111
|
[1] |
O-RING
|
8202-009
|
| 12. |
S8000141
|
[1] |
O-RING
|
|
| 13. |
S8000141
|
[1] |
O-RING
|
8202-011
|
| 14. |
S8000111
|
[1] |
O-RING
|
8202-009
|
| 15. |
S8000111
|
[1] |
O-RING
|
8202-009
|
| 16. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 17. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 18. |
2181-1951D1
|
[1] |
TEE
|
|
| 19. |
2184-1026D123
|
[1] |
HOSE PF3/8-1650L
|
|
| 2. |
S8000111
|
[2] |
O-RING
|
8202-009
|
| 20. |
2184-1045D83
|
[2] |
HOSE PF1/4-1400L
|
|
| 20. |
2184-1045D83
|
[4] |
HOSE PF1/4-1400L
|
|
| 20. |
2184-1045D83
|
[3] |
HOSE PF1/4-1400L
|
|
| 21. |
2184-1046D82
|
[1] |
HOSE PF1/4-850L
|
|
| 22. |
2181-1112D1
|
[1] |
ELBOW PT1/4-PF1/4
|
|
| 23. |
2181-1126D75
|
[1] |
ADAPTER
|
|
| 24. |
2184-1046D169
|
[1] |
HOSE PF1/4-1600L
|
|
| 25. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 26. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 26. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 27. |
2184-1045D157
|
[1] |
HOSE PF1/4-1500L
|
|
| 3. |
2120-1413D10
|
[1] |
BOLT;U M10X1.5
|
|
| 4. |
40701-00210
|
[1] |
FILTER ASS'Y
|
|
| 47. |
181-00061
|
[1] |
MANIFOLD
|
|
| 48. |
S0508853
|
[2] |
. BOLT
|
|
| 49. |
S5102503
|
[2] |
. WASHER
|
|
| 5. |
2181-2100D3
|
[1] |
TEE
|
|
| 50. |
2184-1046D223
|
[1] |
HOSE PF1/4-1400L
|
|
| 6. |
2181-1186D1
|
[1] |
ELBOW;HOSE 2-PT1/4 90'
|
|
| 7. |
S5010613
|
[2] |
WASHER
|
|
| 8. |
S5102603
|
[2] |
. WASHER
|
|
| 9. |
S4012633
|
[2] |
NUT
|
|
