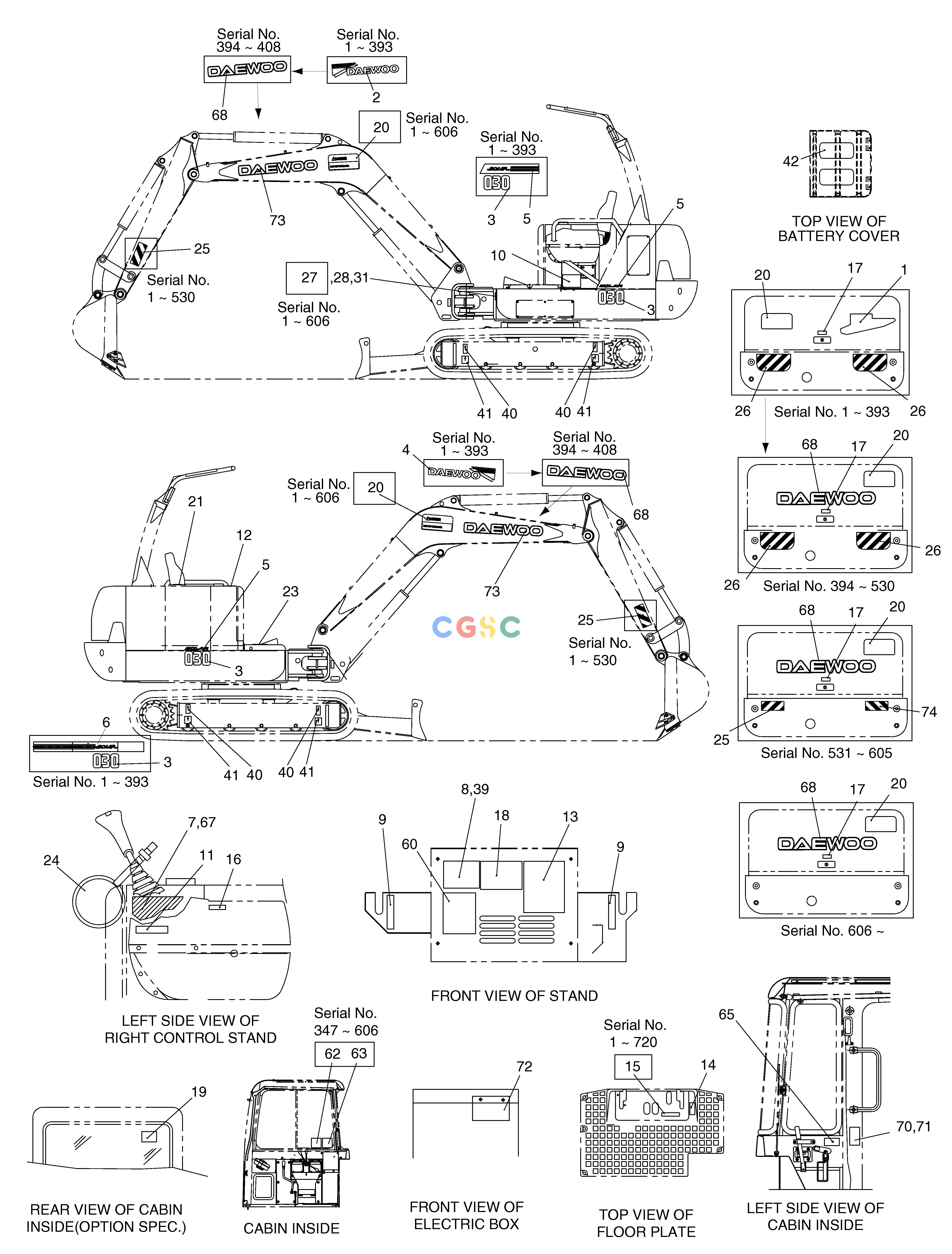

斗山零件查询NAME PLATE-ENGLISH SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2190-3085F2
|
[-] |
NAME PLATE ASS'Y
|
|
| 1. |
2190-3125
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 10. |
2190-2997
|
[1] |
PLATE;NAME
|
|
| 11. |
2190-2878
|
[1] |
PLATE;NAME
|
|
| 12. |
4190-1980
|
[1] |
PLATE;NAME(FUEL)
|
|
| 13. |
2190-2995
|
[1] |
PLATE;NAME
|
|
| 14. |
2190-3133
|
[1] |
PLATE;NAME(BOOM SWING)
|
|
| 15. |
2190-2884
|
[1] |
PLATE;NAME(OVER DRIVE)
|
|
| 16. |
2190-2633
|
[1] |
PLATE;NAME
|
|
| 17. |
2190-2640
|
[1] |
NAME;PLATE(E/G COVER)
|
|
| 18. |
2190-2627
|
[1] |
PLATE;NAME
|
|
| 19. |
2190-2526
|
[1] |
PLATE;NAME
|
|
| 2. |
2190-2985
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 20. |
2190-2590
|
[3] |
PLATE;NAME
|
|
| 20. |
2190-2590
|
[1] |
PLATE;NAME
|
|
| 21. |
2190-2529
|
[1] |
PLATE;NAME
|
|
| 23. |
2190-2533
|
[1] |
PLATE;NAME(BATTERY)
|
|
| 24. |
2190-2549
|
[1] |
PLATE;NAME
|
|
| 25. |
2190-2555A
|
[2] |
PLATE;NAME(SWING AREA)
|
|
| 25. |
2190-2555A
|
[1] |
PLATE;NAME(SWING AREA)
|
|
| 26. |
2190-2552A
|
[2] |
PLATE;NAME
|
|
| 27. |
2190-2848
|
[1] |
PLATE;NAME(ONLY EUROPE)
|
|
| 28. |
2190-2850
|
[1] |
PLATE;NAME
|
|
| 3. |
2190-3162
|
[2] |
PLATE;NAME
|
|
| 3. |
2190-3573
|
[2] |
PLATE;NAME
|
|
| 31. |
2122-1002D1
|
[4] |
RIVET
|
2122-1002D2
|
| 31. |
2122-1002D2
|
[4] |
RIVET
|
|
| 39. |
2190-2556D51
|
[1] |
PLATE;NAME
|
|
| 4. |
2190-2986
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 40. |
2190-2476
|
[4] |
PLATE;NAME(TIE DOWN)
|
|
| 41. |
2190-2477
|
[4] |
PLATE;NAME(LIFTING)
|
|
| 42. |
2190-2314D1
|
[2] |
TAPE;ANTI-SKID
|
|
| 5. |
2190-2993
|
[1] |
PLATE;NAME(SOLAR)
|
|
| 5. |
2190-3308
|
[2] |
PLATE;NAME(SOLAR)
|
|
| 6. |
2190-3124
|
[1] |
PLATE;NAME(SOLAR)
|
2190-3124A
|
| 6. |
2190-3124A
|
[1] |
PLATE;NAME(SOLAR)
|
|
| 60. |
2190-3202
|
[1] |
PLATE;NAME(OIL CHECK)
|
|
| 62. |
2190-3270D26
|
[1] |
PLATE;NAME(SOUND POWER)
|
|
| 63. |
2190-3271D26
|
[1] |
PLATE;NAME(SOUND POWER)
|
|
| 65. |
2190-2480
|
[1] |
PLATE;NAME
|
|
| 67. |
2190-3414
|
[1] |
PLATE;NAME
|
|
| 68. |
2190-3385D9
|
[3] |
PLATE;NAME(DAEWOO)
|
|
| 68. |
2190-3385D9
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 7. |
6190-1026
|
[1] |
PLATE;NAME
|
|
| 70. |
2190-3424A
|
[1] |
PLATE;NAME(TOPS)
|
|
| 71. |
2122-1002D1
|
[4] |
RIVET
|
2122-1002D2
|
| 71. |
2122-1002D2
|
[4] |
RIVET
|
|
| 72. |
2190-3582
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 72. |
2190-3582A
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 73. |
2190-3385D8
|
[2] |
PLATE;NAME(DAEWOO)
|
|
| 74. |
190-00053
|
[1] |
PLATE;NAME
|
|
| 8. |
2190-2556D52
|
[1] |
PLATE;NAME(SPEC)
|
|
| 9. |
2190-1249
|
[2] |
PLATE;NAME
|
|
