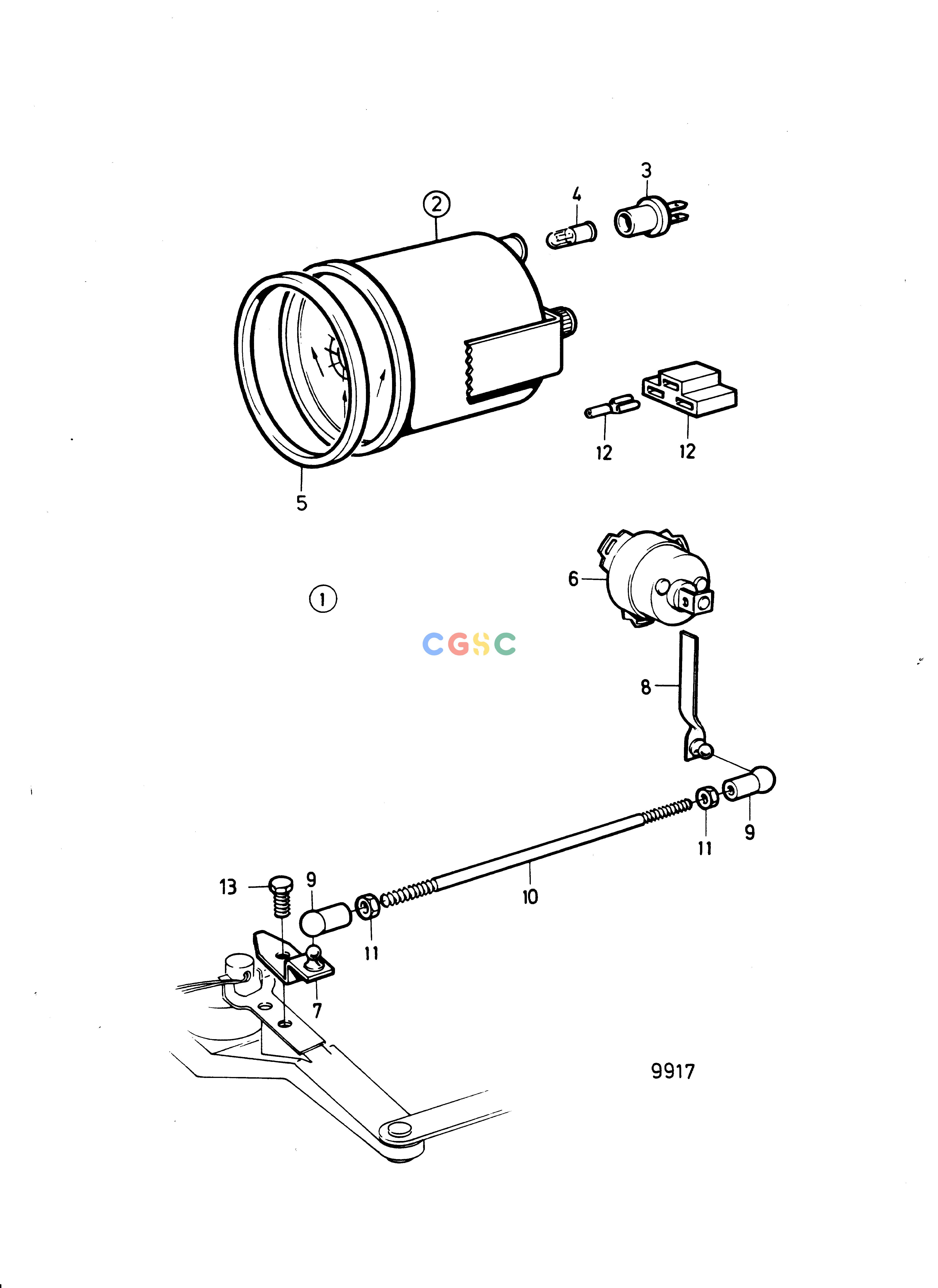

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BMiscellaneous EquipmentRudder Indicator Kit: 1140465EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
392 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140465
|
[1] |
Rudder indicator kit
|
For engine with reverse gear.
|
| 2. |
863944
|
[1] |
Rudder indicator
|
|
| 3. |
863945
|
[1] |
Bulb socket
|
For rudder indicator instruments with part no 828698 should white bulb 19923 and bulb holder 808175
|
| 4. |
863946
|
[1] |
Bulb
|
For rudder indicator instruments with part no 828698 should white bulb 19923 and bulb holder 808175
|
| 5. |
858643
|
[1] |
Front ring
|
|
| 6. |
837772
|
[1] |
Position sensor
|
|
| 12. |
|
|
|
See group 3
|
