纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0326[001]) - THERMOSTAT-ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
825 次

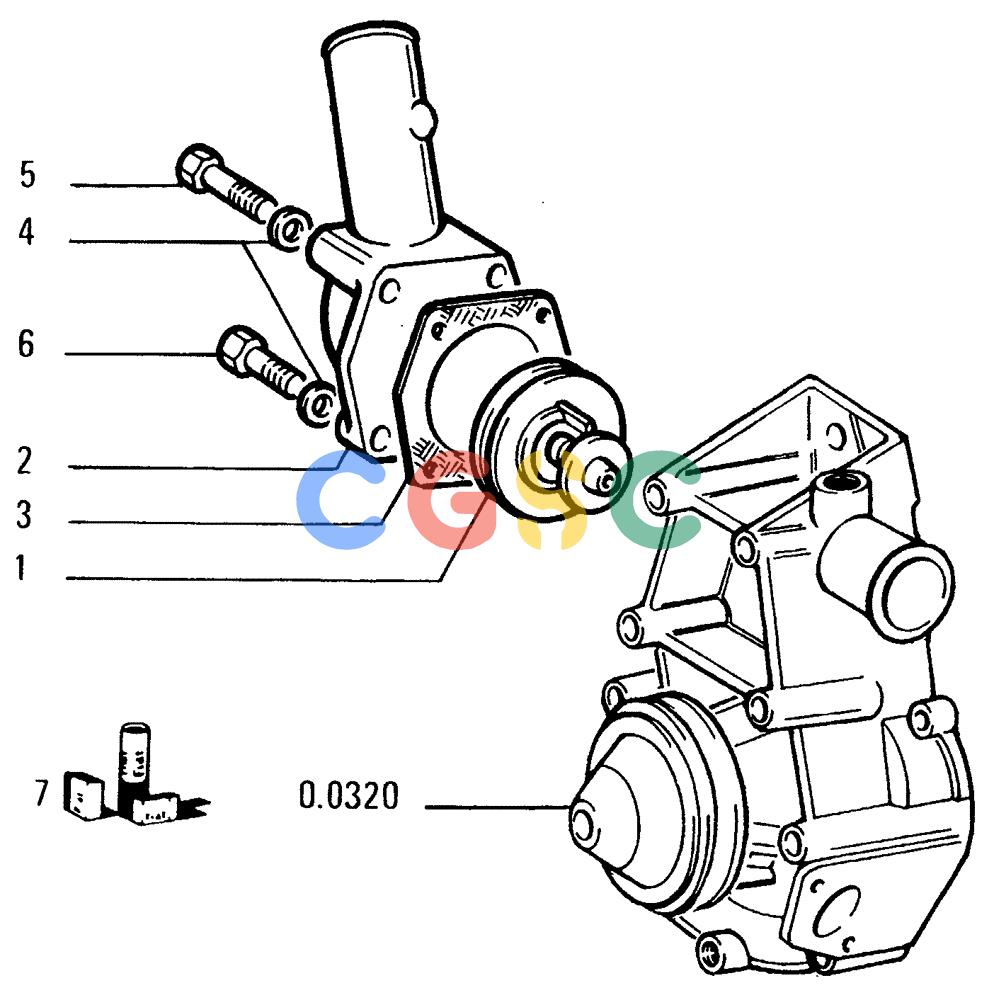

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4808727 | [1] | THERMOSTAT | MOD- IN ALTERNATIVE Superseded by part number: 500365249 |
| 1. | 8831035 | [1] | THERMOSTAT | MOD- IN ALTERNATIVE Superseded by part number: 4808727 |
| 2. | 4722294 | [1] | ELBOW | LEC |
| 3. | 8826149 | [1] | GASKET | MOD Superseded by part number: 98443664 |
| 4. | 11193871 | [4] | BELLEVILLE WASHER,Belleville, M8.4 | TTFLOCKWASHER 8,4x16 Superseded by part number: 11193874 |
| 5. | 4759290 | [2] | SCREW | LEC |
| 6. | 16043621 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CASHex, M8 x 25, 8.8 Superseded by part number: |
| 7. | 79086656 | [1] | KIT | LECSEE PAGE 32 Superseded by part number: 99444733, 98428396, 98415922, 98420478, 98412509, 75127432, 4858608, 4734747, 4729026, 98482093, 4858609 |
| 7. | 79094075 | [1] | KIT | LECSEE PAGE 32 Superseded by part number: 76030102 |
