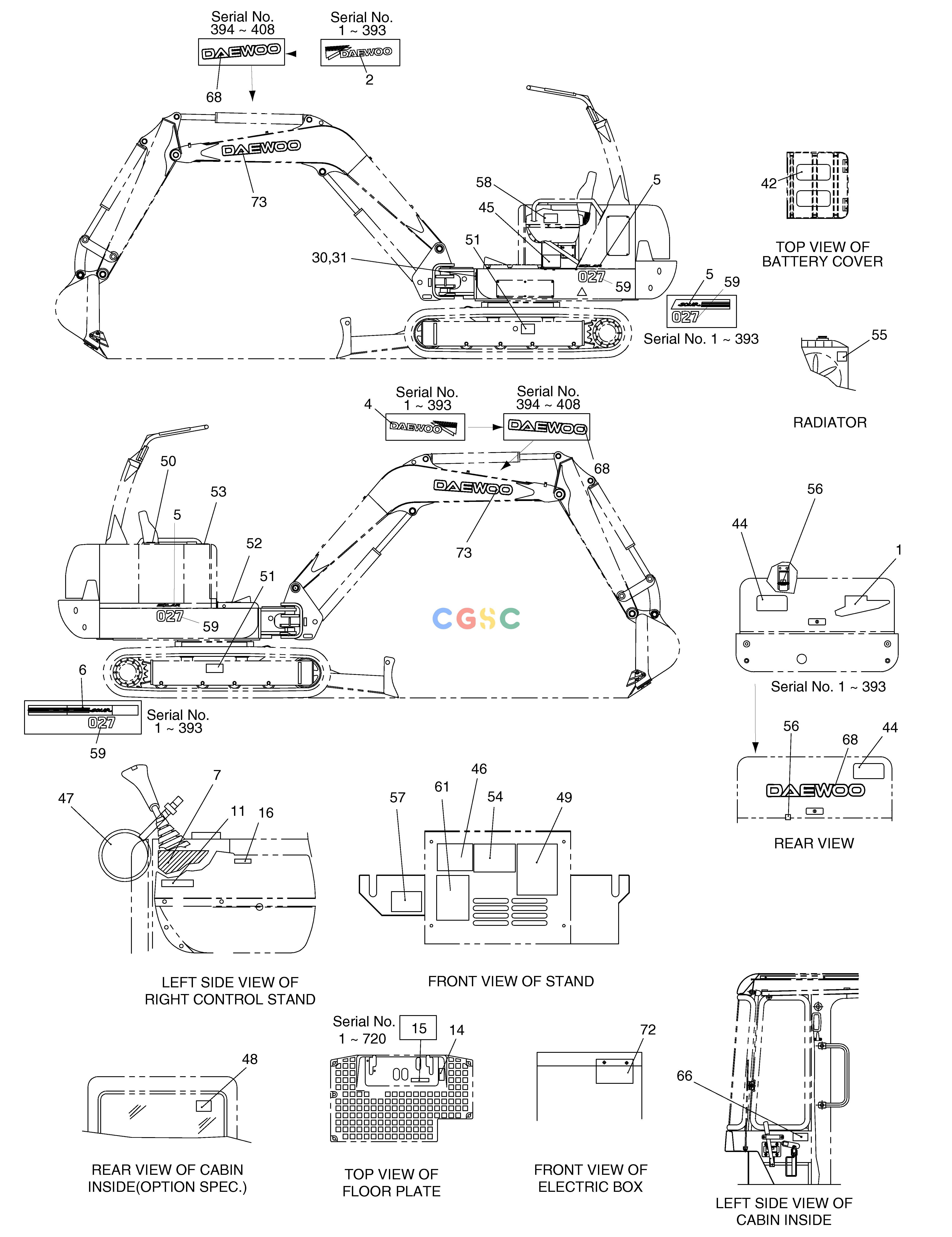

斗山零件查询NAME PLATE-JAPAN SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
179 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2190-3085F3
|
[-] |
NAME PLATE ASS'Y
|
|
| 1. |
2190-3125
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 11. |
2190-2878
|
[1] |
PLATE;NAME
|
|
| 14. |
2190-3133
|
[1] |
PLATE;NAME(BOOM SWING)
|
|
| 15. |
2190-2884
|
[1] |
PLATE;NAME(OVER DRIVE)
|
|
| 16. |
2190-2633
|
[1] |
PLATE;NAME
|
|
| 2. |
2190-2985
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 30. |
2190-2849
|
[1] |
PLATE;NAME
|
2190-2849A
|
| 30. |
2190-2849A
|
[1] |
PLATE;NAME
|
|
| 31. |
2122-1002D1
|
[4] |
RIVET
|
2122-1002D2
|
| 31. |
2122-1002D2
|
[4] |
RIVET
|
|
| 4. |
2190-2986
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 42. |
2190-2314D1
|
[2] |
TAPE;ANTI-SKID
|
|
| 44. |
6190-1019
|
[1] |
PLATE;NAME
|
|
| 45. |
2190-3034
|
[1] |
PLATE;NAME
|
|
| 46. |
2190-3087
|
[1] |
PLATE;NAME
|
|
| 47. |
2190-2762
|
[1] |
PLATE;NAME
|
2190-2762A
|
| 47. |
2190-2762A
|
[1] |
PLATE;NAME
|
|
| 48. |
6190-1021
|
[1] |
PLATE;NAME
|
|
| 49. |
6190-1016
|
[1] |
PLATE;NAME
|
|
| 5. |
2190-2993
|
[1] |
PLATE;NAME(SOLAR)
|
|
| 5. |
2190-3308
|
[2] |
PLATE;NAME(SOLAR)
|
|
| 50. |
6190-1023
|
[1] |
PLATE;NAME(HOT OIL)
|
|
| 51. |
6190-1022
|
[1] |
PLATE;NAME
|
|
| 51. |
6190-1022
|
[2] |
PLATE;NAME
|
|
| 52. |
6190-1018
|
[1] |
PLATE;NAME(BATTERY)
|
|
| 53. |
2190-2967
|
[1] |
PLATE;NAME
|
|
| 54. |
6190-1017
|
[1] |
PLATE;NAME
|
|
| 55. |
6190-1024
|
[1] |
PLATE;NAME
|
|
| 56. |
2190-3050
|
[1] |
PLATE;NAME
|
|
| 57. |
6190-1020
|
[1] |
PLATE;NAME(SWING LOCK)
|
|
| 57. |
6190-1020A
|
[1] |
PLATE;NAME(SWING LOCK)
|
|
| 58. |
6190-1015
|
[1] |
PLATE;NAME(SAFETY LEVER)
|
|
| 59. |
2190-3160
|
[2] |
PLATE;NAME(S027)
|
|
| 59. |
2190-3577
|
[2] |
PLATE;NAME
|
|
| 6. |
2190-3124
|
[1] |
PLATE;NAME(SOLAR)
|
2190-3124A
|
| 6. |
2190-3124A
|
[1] |
PLATE;NAME(SOLAR)
|
|
| 61. |
2190-3210
|
[1] |
PLATE;NAME
|
|
| 66. |
2190-2839
|
[1] |
PLATE;NAME(HAMMER)
|
|
| 68. |
2190-3385D9
|
[3] |
PLATE;NAME(DAEWOO)
|
|
| 68. |
2190-3385D9
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 7. |
6190-1026
|
[1] |
PLATE;NAME
|
|
| 72. |
2190-3582
|
[1] |
PLATE;NAME(FUSE BOX)
|
2190-3582A
|
| 72. |
2190-3582A
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 73. |
2190-3385D8
|
[1] |
PLATE;NAME(DAEWOO)
|
|
