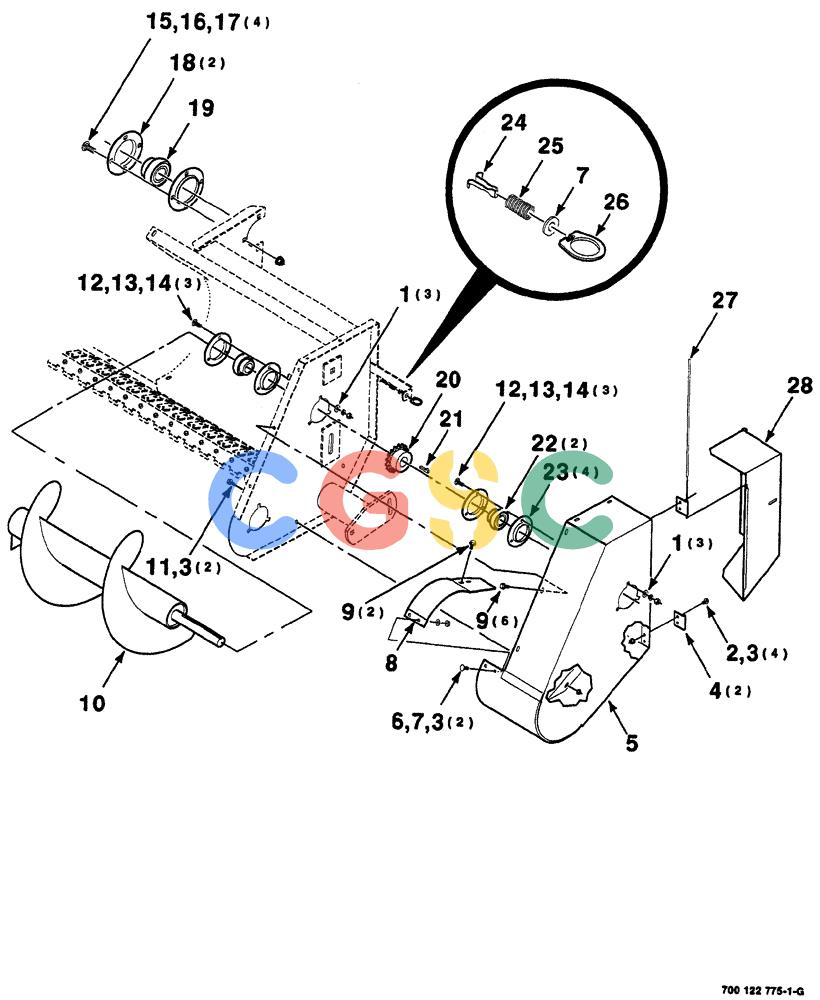

| 1. |
496-11041
|
[6] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened, plain, 3/8 Superseded by part number: 86632588
|
| 2. |
413-58
|
[4] |
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
|
CAS
SCREW hex cap, 5/16-18 x 1/2 Superseded by part number: 72187203, 88574
|
| 3. |
231-5145
|
[8] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 4. |
700108658
|
[2] |
SUPPORT
|
CAS
hinge Superseded by part number: 700163299
|
| 5. |
700108649
|
[1] |
PANEL
|
HFI
WA, left Superseded by part number: 86637953, 145458, 700134917, 700131095, 280616
|
| . . |
700134917
|
[1] |
PANEL
|
HFI
WA, left
|
| 6. |
433-512
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 7. |
496-21034
|
[3] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 8. |
700131095
|
[1] |
SUPPORT
|
HFI
wrapper, left
|
| 9. |
409-7512
|
[8] |
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
|
CAS
Superseded by part number: 145913, 72187186
|
| 10. |
700108623
|
[1] |
AUGER
|
CAS
WA, left
|
| 11. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 12. |
434-616
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 13. |
492-11038
|
[6] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 14. |
425-106
|
[6] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 15. |
433-820
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 16. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 17. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 18. |
714360
|
[2] |
FLANGED BEARING
|
IH
flange
|
| 19. |
700704263
|
[1] |
SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm
|
CAS
spherical Superseded by part number: 76451
|
| 20. |
700710493
|
[1] |
SPROCKET ASSY.
|
CAS
WA, 50B17
|
| 21. |
Q3914
|
[1] |
KEY,Gib, 1/4" Sq x 1 1/2"
|
IH
GIB
|
| 22. |
51292
|
[2] |
SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm
|
IH
spherical Superseded by part number: 84330041, 47508357
|
| 23. |
617863R1
|
[4] |
FLANGED BEARING
|
IH
bearing
|
| 24. |
7894975
|
[1] |
CLIP
|
CAS
|
| 25. |
7758212
|
[1] |
SPRING
|
CAS
compression
|
| 26. |
7894967
|
[1] |
HANDLE
|
CAS
fastener
|
| 27. |
6474316
|
[1] |
PIN
|
CAS
hinge
|
| 28. |
700108656
|
[1] |
SHIELD
|
HFI
left
|
