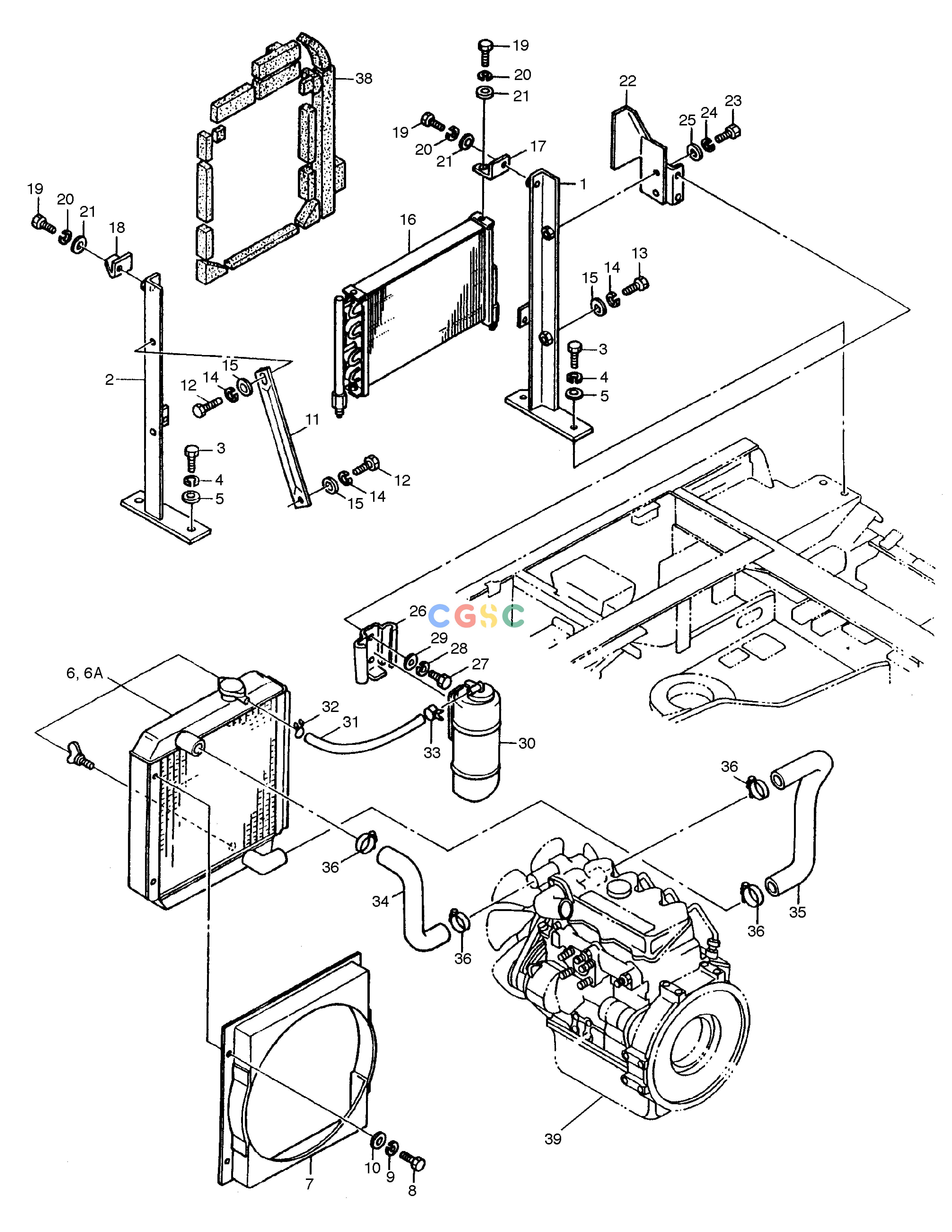

斗山零件查询POWER UNIT(2) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2201-7012
|
[-] |
ENGINE MOUNT
|
|
| 1. |
2197-1225
|
[1] |
BRACKET;RADIATOR(R.H)
|
|
| 10. |
S5010313
|
[4] |
WASHER
|
|
| 11. |
2145-1233A
|
[1] |
STAY
|
|
| 12. |
S0508853
|
[3] |
. BOLT
|
|
| 13. |
S0508653
|
[2] |
BOLT
|
|
| 14. |
S5102503
|
[5] |
. WASHER
|
|
| 15. |
S5010513
|
[5] |
WASHER
|
|
| 16. |
40121-01051
|
[1] |
COOLER;OIL
|
|
| 17. |
2621-3278
|
[1] |
PLATE(R.H)
|
|
| 18. |
2621-3279
|
[1] |
PLATE(L.H)
|
|
| 19. |
S0508853
|
[6] |
. BOLT
|
|
| 2. |
2197-1226
|
[1] |
BRACKET;RADIATOR(L.H)
|
|
| 20. |
S5102503
|
[6] |
. WASHER
|
|
| 21. |
S5010513
|
[6] |
WASHER
|
|
| 22. |
2464-2007
|
[1] |
BAFFLE
|
|
| 23. |
S0508653
|
[1] |
BOLT
|
|
| 24. |
S5102503
|
[1] |
. WASHER
|
|
| 25. |
S5010513
|
[1] |
WASHER
|
|
| 26. |
897041-0220
|
[1] |
HANGER;SURGE TANK
|
|
| 27. |
S0504653
|
[2] |
. BOLT
|
|
| 28. |
S5102303
|
[2] |
. WASHER
|
|
| 29. |
S5010313
|
[2] |
WASHER
|
|
| 3. |
S0512053
|
[4] |
BOLT
|
|
| 30. |
894370-4500
|
[1] |
TANK;SURGE
|
|
| 31. |
40124-00350
|
[1] |
HOSE
|
|
| 32. |
40124-00360
|
[1] |
CLIP
|
|
| 33. |
30572-08012
|
[1] |
CLIP
|
|
| 34. |
2185-1619
|
[1] |
HOSE;UPPER
|
|
| 35. |
2185-1620
|
[1] |
HOSE;LOWER
|
|
| 36. |
S8450044
|
[4] |
CLAMP;HOSE
|
|
| 38. |
2161-2061A
|
[1] |
URETHAN FOAM (C)ASS'Y
|
|
| 38. |
2161-2061B
|
[1] |
URETHAN FOAM (C)ASS'Y
|
2161-2061C
|
| 38. |
2161-2061C
|
[1] |
URETHAN FOAM (C)ASS'Y
|
|
| 39. |
2201-9055
|
[1] |
ENGINE ASS'Y
|
2201-9055A
|
| 39. |
2201-9055A
|
[1] |
ENGINE ASS'Y
|
|
| 39. |
201-00072
|
[1] |
ENGINE ASS'Y(KOREA)
|
|
| 39. |
2202-9055B
|
[1] |
ENGINE ASS'Y(EUROPE)
|
|
| 4. |
S5102603
|
[4] |
. WASHER
|
|
| 5. |
2114-1058D10
|
[4] |
WASHER
|
|
| 6. |
40121-01040
|
[1] |
RADIATOR
|
|
| 6A. |
1041-013-5100
|
[1] |
CAP;RADIATOR
|
|
| 7. |
2360-1009
|
[1] |
SHROUD
|
2360-1009A
|
| 7. |
2360-1009A
|
[1] |
SHROUD
|
|
| 8. |
S0504453
|
[4] |
BOLT
|
|
| 9. |
S5102303
|
[4] |
. WASHER
|
|
