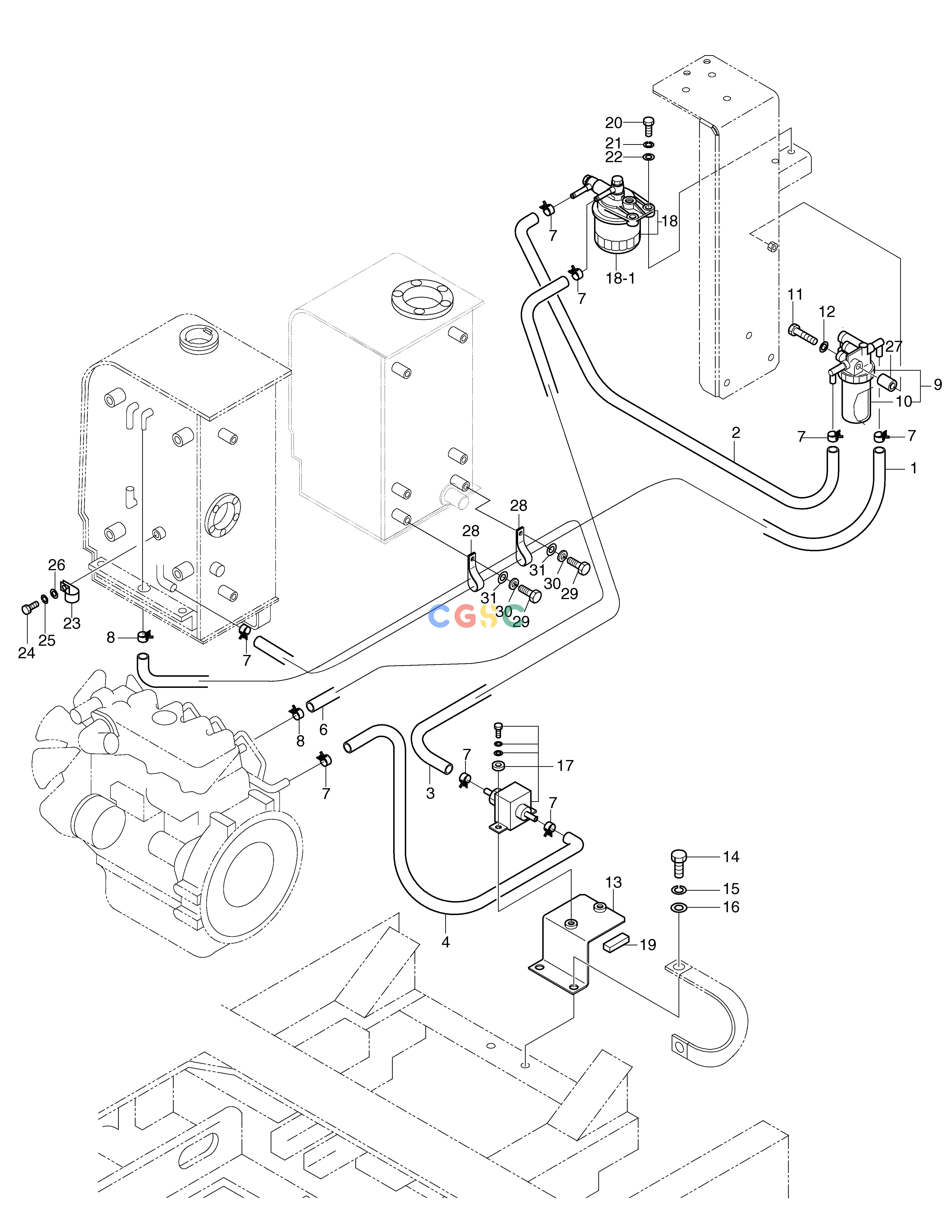

斗山零件查询POWER UNIT(4) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
464 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2201-7012
|
[-] |
ENGINE MOUNT
|
|
| 1. |
2185-1247D24
|
[1] |
HOSE
|
|
| 10. |
894360-2540
|
[1] |
ELEMENT;SEDIMENTER
|
|
| 11. |
S0556853
|
[1] |
BOLT M8X1.25X75
|
|
| 12. |
S5102503
|
[1] |
. WASHER
|
|
| 13. |
2197-1241A
|
[1] |
BRACKET;FUEL PUMP
|
|
| 14. |
S0508853
|
[2] |
. BOLT
|
|
| 15. |
S5102503
|
[2] |
. WASHER
|
|
| 16. |
S5010513
|
[2] |
WASHER
|
|
| 17. |
894241-1792
|
[1] |
PUMP ASS'Y FUEL ELECT
|
|
| 18. |
897014-2040
|
[1] |
FILTER ASS'Y;FUEL
|
|
| 18-1. |
894132-9471
|
[1] |
CARTRIDGE;FUEL FILTER
|
471-00036
|
| 18-1. |
471-00036
|
[1] |
CARTRIDGE;FUEL FILTER
|
|
| 19. |
30869-02007
|
[1] |
RUBBER;TRIM
|
2161-1744
|
| 19. |
2161-1744
|
[1] |
RUBBER
|
|
| 2. |
2185-1247D107
|
[1] |
HOSE M9.35X15.88X320
|
|
| 20. |
S0512053
|
[2] |
BOLT
|
|
| 21. |
S5102603
|
[2] |
. WASHER
|
|
| 22. |
S5010613
|
[2] |
WASHER
|
|
| 23. |
2124-1027D5
|
[1] |
CLAMP
|
|
| 24. |
S0508653
|
[1] |
BOLT
|
|
| 25. |
S5102503
|
[1] |
. WASHER
|
|
| 26. |
S5010513
|
[1] |
WASHER
|
|
| 27. |
2114-1756
|
[1] |
COLLAR
|
|
| 28. |
2124-1509D5
|
[2] |
CLIP D36/M8
|
|
| 29. |
S0508653
|
[2] |
BOLT
|
|
| 3. |
2185-1247D69
|
[1] |
HOSE M9.35X15.88X1600
|
|
| 30. |
S5102503
|
[2] |
. WASHER
|
|
| 31. |
S5010513
|
[2] |
WASHER
|
|
| 4. |
2185-1247D4
|
[1] |
HOSE
|
|
| 6. |
2185-1247D108
|
[1] |
HOSE 2600
|
|
| 7. |
S8450012
|
[8] |
CLAMP
|
|
| 8. |
S8450006
|
[2] |
CLAMP
|
|
| 9. |
897086-2450
|
[1] |
SEDIMENTER ASS'Y
|
|
