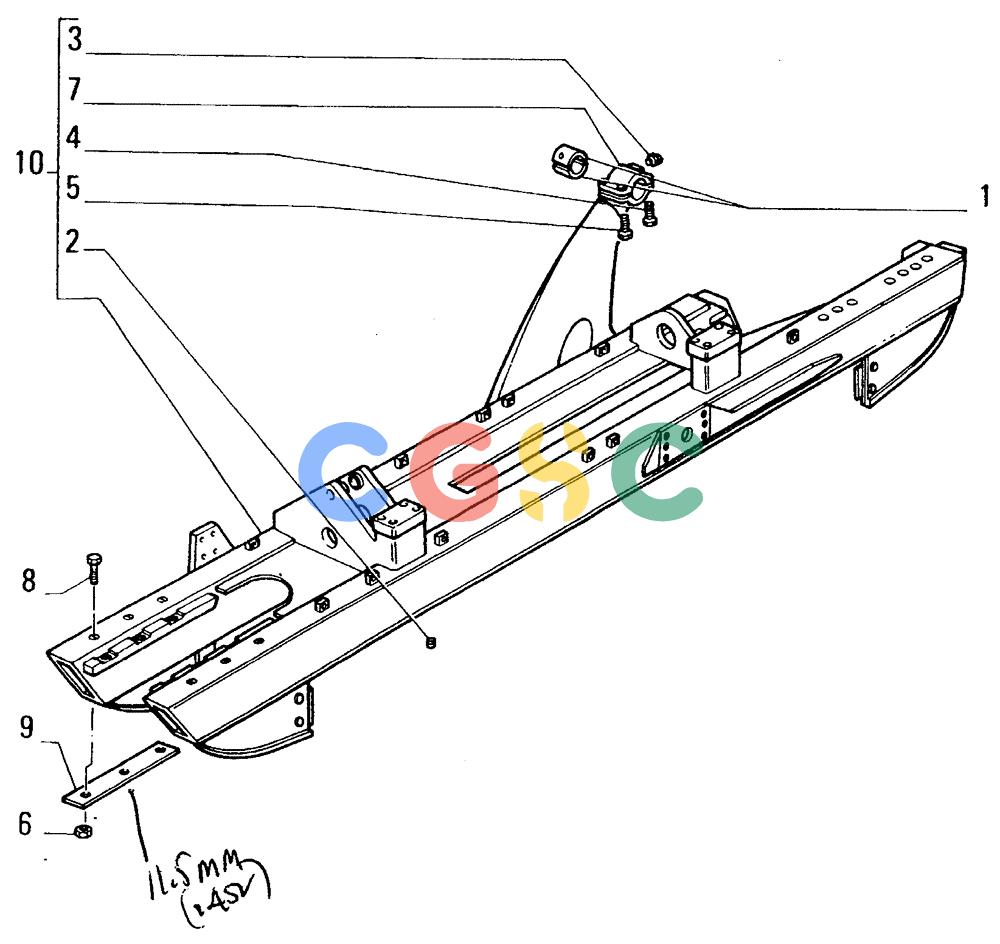

纽荷兰零件查询(FD14E) - CRAWLER DOZER (2.3445[001]) - TRACK FRAME New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
458 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 587626 | [4] | BUSHING | BHBHALF BUSHING Superseded by part number: 75224821, 75242136 |
| 2. | 590353 | [11] | PLUG,15mm OD x 10mm High, Plastic | TTF |
| 3. | 13407811 | [1] | LUBE NIPPLE,Angled - 45°, M10 x 1 x 27.00mm | TTFGREASE FITTING 10x1x45 |
| 4. | 15981334 | [2] | BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9 | JESSCREW KrtClSJTK' |
| 5. | 15981834 | [2] | BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9 | IMO |
| 6. | 16105021 | [12] | LOCK NUT,M12 x 1.25, Cl 10 | TTFNUT, LOCK, M12 x 1.25, Cl 10 |
| 7. | 79008162 | [1] | SUPPORT | LECCAP |
| 8. | 79031906 | [12] | SCREW | LEC |
| 9. | 79031909 | [4] | SHIM | LEC |
| 10. | 79075538 | [1] | BODY | LECTRACK FRAME -DS. Superseded by part number: 76027491 |
| 10. | 79075540 | [1] | FRAME | LECTRACK FRAME -SN. Superseded by part number: 76027495 |
