斗山零件查询SEAT PLATE SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

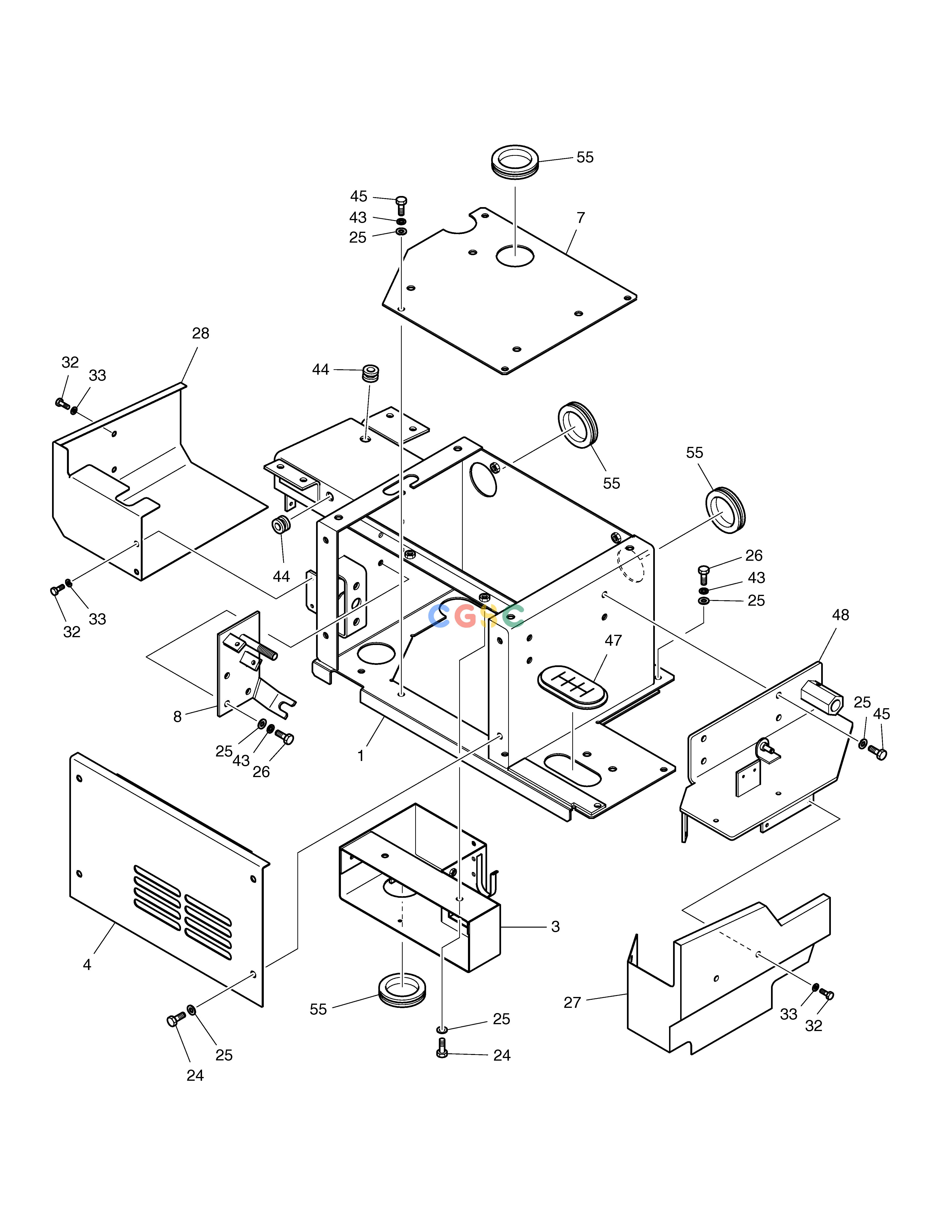

195-00383A
|
[-] |
CONTROL STAND ASS'Y
|
|
| 1. |
621-00496B
|
[1] |
PLATE;FLOOR
|
|
| 24. |
2120-2166D25
|
[6] |
BOLT
|
|
| 25. |
2114-1898D2
|
[23] |
WASHER
|
|
| 26. |
2120-2166D5
|
[9] |
BOLT
|
|
| 27. |
621-00493B
|
[1] |
COVER(L.H)
|
|
| 28. |
621-00494
|
[1] |
COVER(R.H)
|
|
| 3. |
195-00390B
|
[1] |
BRACKET;FUSE BOX
|
|
| 32. |
2120-2166D19
|
[8] |
. BOLT M6X1.0X12
|
|
| 33. |
2114-1898D5
|
[8] |
WASHER
|
|
| 4. |
621-01077
|
[1] |
COVER
|
|
| 43. |
2114-2031D4
|
[13] |
WASHER
|
|
| 44. |
2160-1004D2
|
[2] |
BUSHING;RUBBER
|
|
| 45. |
2120-2166D16
|
[8] |
BOLT
|
|
| 47. |
2160-1330
|
[1] |
BUSHING;RUBBER
|
|
| 48. |
195-00385A
|
[1] |
BRACKET;STAND(L.H)
|
|
| 55. |
2161-2462
|
[5] |
GROMMET
|
|
| 7. |
2191-3830A
|
[1] |
PLATE;FLOOR
|
|
| 8. |
195-00391
|
[1] |
BRACKET;ACCEL
|
|
