纽荷兰零件查询(FD14E) - CRAWLER DOZER (2.3450[001A]) - TRACK ROLLERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
596 次

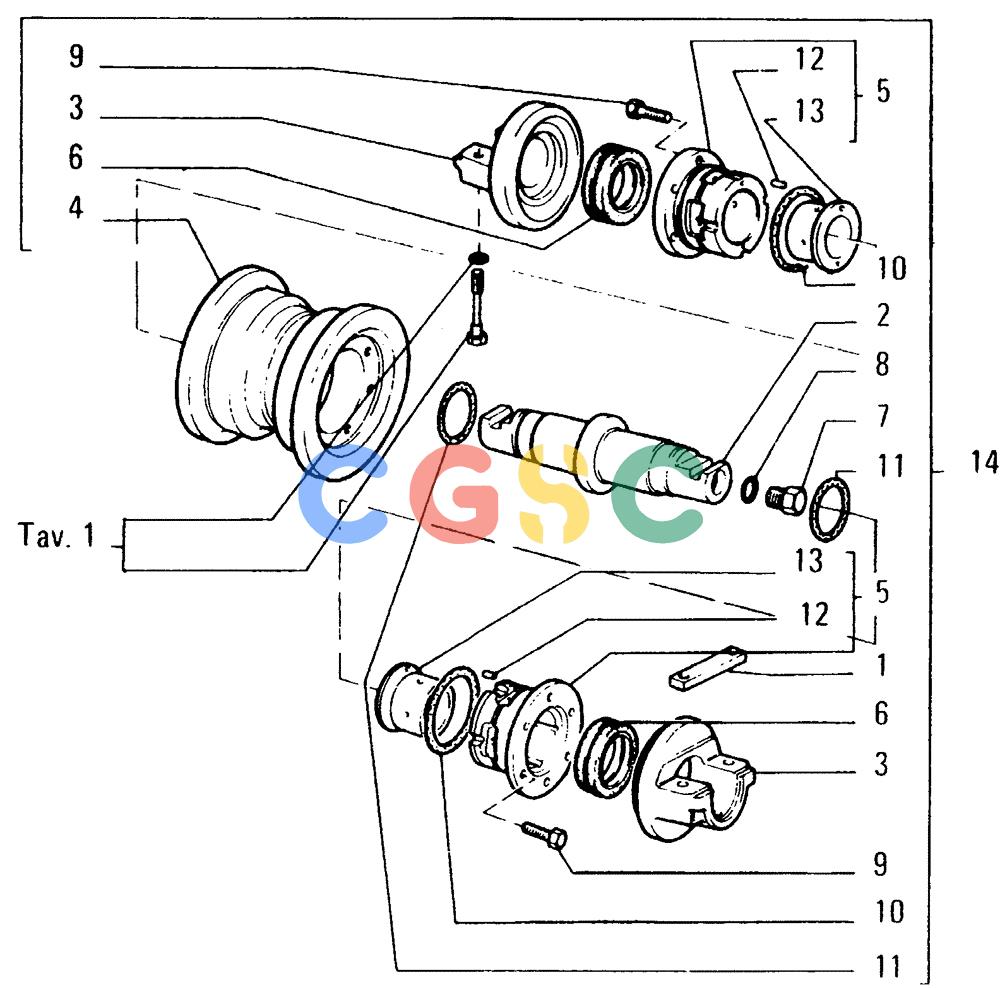

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79103264 | [2] | KEY | LEC |
| 2. | 79103259 | [1] | ROLLER SHAFT | LECSHAFT Superseded by part number: 76029450 |
| 3. | 76001770 | [2] | SUPPORT | LEC |
| 4. | 76004863 | [1] | TRACK ROLLER | LECWHEEL Superseded by part number: 76013223 |
| 5. | 79103256 | [2] | HOUSING | LECCASE - ASSEMBLY |
| 6. | 79103260 | [2] | SEAL,67mm ID x 94mm OD x 38mm Thk | LEC |
| 7. | 79019318 | [1] | PLUG | LEC |
| 8. | 14457080 | [1] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro | LEC0-RING 2,62x12,37 Superseded by part number: 86637641 |
| 9. | 14233730 | [12] | SCREW,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd | MOD10x1,25x35 Superseded by part number: 14233731 |
| 10. | 14466280 | [2] | O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro | LEC-244, 70 Duro, 4.234" ID x .139" Thk (M107.54 ID x 3.53 Thk) Superseded by part number: 455025 |
| 11. | 14464680 | [2] | O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro | JES0-RING 3,53x56,74 Superseded by part number: 14464681 |
| 12. | 79103263 | [1] | ROLL PIN | LECPIN |
| 13. | 79103257 | [1] | BUSHING | LEC |
| 14. | 79103254 | [8] | TRACK ROLLER | LECWHEEL - ASSEMBLY - IN ALTERNATIVE SEE TAV.1 Superseded by part number: 76013223 |
