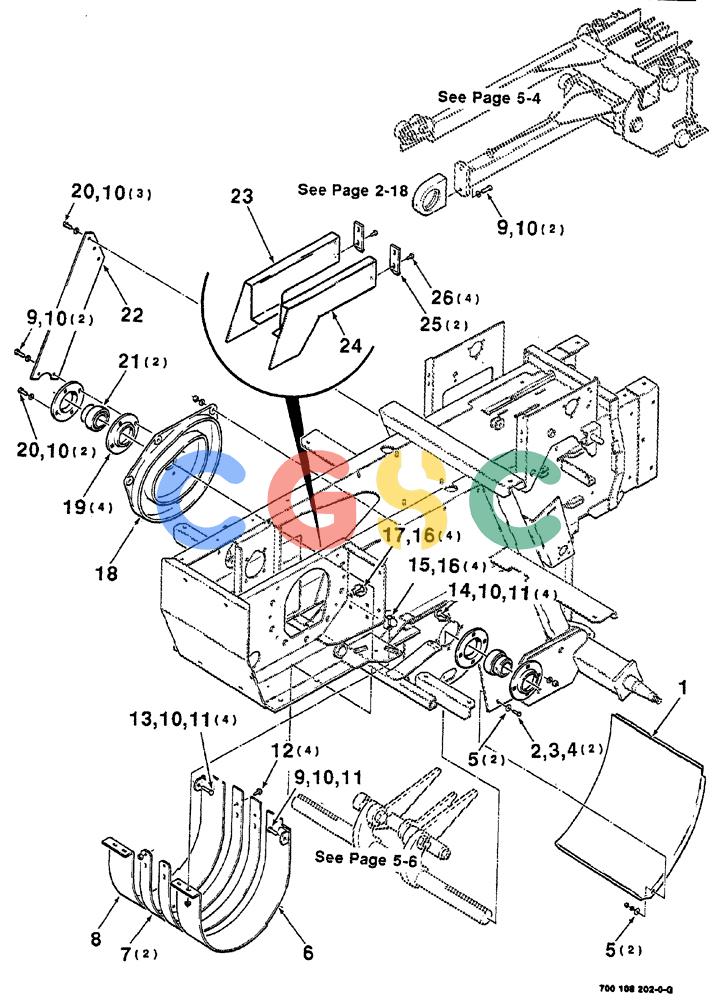

| 1. |
700108279
|
[1] |
COVER
|
CAS
PAN, WA
|
| 2. |
413-616
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 3. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 4. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 5. |
496-11041
|
[4] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened, plain, 3/8 Superseded by part number: 86632588
|
| 6. |
700108284
|
[1] |
CURTAIN
|
CAS
WRAPPER WA, left
|
| 7. |
700108179
|
[2] |
CURTAIN
|
CAS
WRAPPER center
|
| 8. |
700108287
|
[1] |
CURTAIN
|
CAS
WRAPPER WA, right
|
| 9. |
413-820
|
[5] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 10. |
80679
|
[18] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 11. |
425-108
|
[9] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 12. |
409-7616
|
[4] |
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
|
CAS
Superseded by part number: 9706726
|
| 13. |
413-828
|
[4] |
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707516, 72187217
|
| 14. |
433-820
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 15. |
433-620
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 86508773
|
| 16. |
231-5146
|
[8] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 17. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 18. |
700108289
|
[1] |
CAM
|
CAS
track Superseded by part number: 700157780
|
| 19. |
714360
|
[4] |
FLANGED BEARING
|
IH
flange
|
| 20. |
413-816
|
[5] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
CAS
Superseded by part number: 87909, BN50282
|
| 21. |
700704263
|
[2] |
SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm
|
CAS
spherical Superseded by part number: 76451
|
| 22. |
700108675
|
[1] |
PLATE
|
HFI
|
| 23. |
700108174
|
[1] |
STRIPPER
|
CAS
WA, right
|
| 24. |
700108173
|
[1] |
STRIPPER
|
CAS
WA, left
|
| 25. |
700108180
|
[2] |
BAR
|
HFI
|
| 26. |
409-7612
|
[4] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
