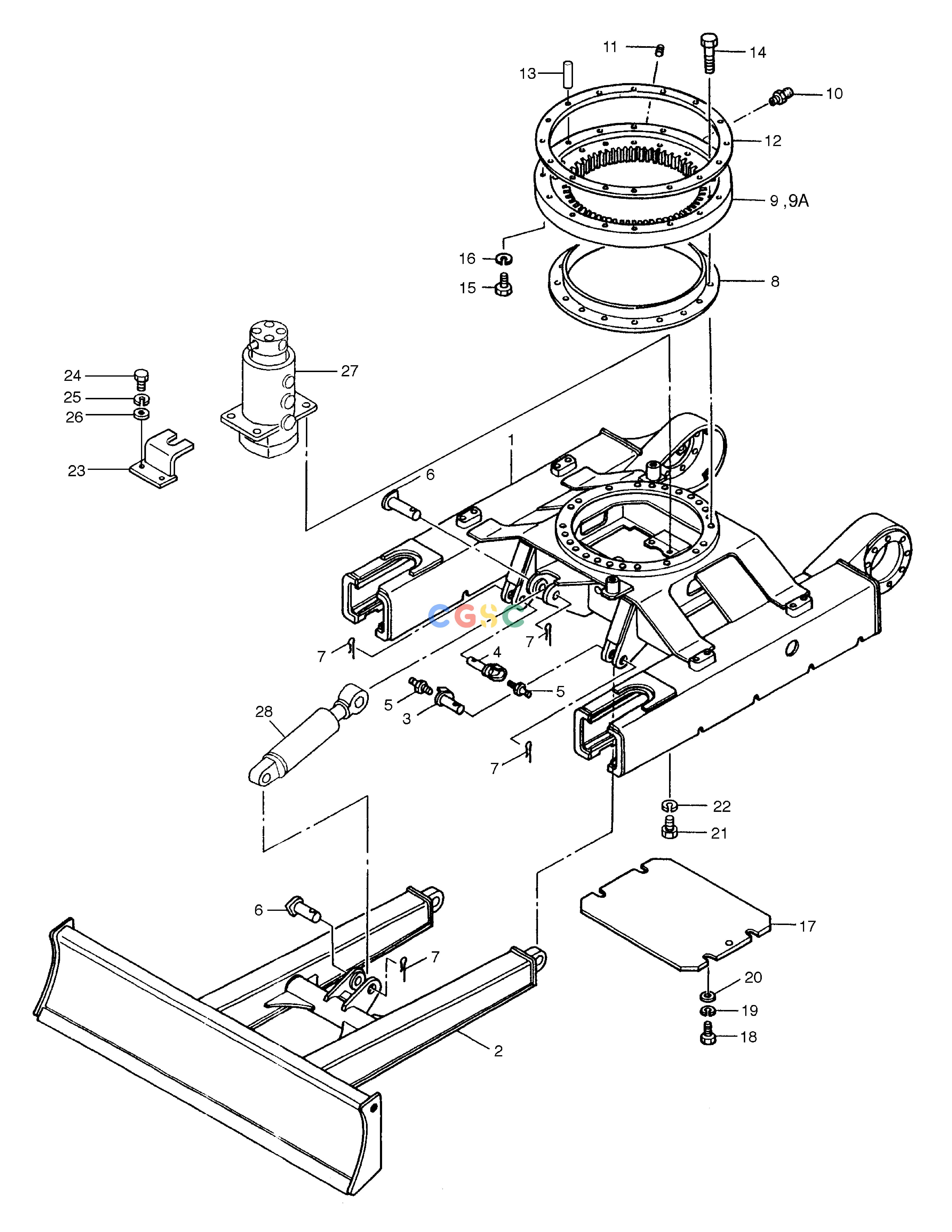

斗山零件查询TRACK(1) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
513 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2604-1280A
|
[1] |
TRACK FRAME ASS'Y
|
|
| 1. |
2604-1280B
|
[1] |
TRACK FRAME ASS'Y
|
|
| 1. |
2604-1280C
|
[1] |
TRACK FRAME ASS'Y
|
2604-1280E
|
| 1. |
2604-1280E
|
[1] |
TRACK FRAME ASS'Y
|
|
| 10. |
S6710013
|
[2] |
NIPPLE;GREASE
|
|
| 11. |
2181-1116D1
|
[1] |
PLUG
|
|
| 12. |
2191-3919B
|
[1] |
RING;TURNING
|
|
| 13. |
2123-2132
|
[2] |
PIN;KNOCK
|
|
| 14. |
S0560961
|
[16] |
BOLT M12X1.75X60
|
|
| 15. |
S0561161
|
[16] |
BOLT M12X1.75X70
|
|
| 16. |
S5102703
|
[16] |
WASHER
|
|
| 17. |
2621-3333A
|
[1] |
COVER;SWIVEL
|
|
| 17. |
2621-3333B
|
[1] |
COVER;SWIVEL
|
|
| 18. |
S0511853
|
[4] |
BOLT
|
|
| 19. |
S5102603
|
[4] |
. WASHER
|
|
| 2. |
2608-1046A
|
[1] |
DOZER
|
|
| 2. |
2608-1046B
|
[1] |
DOZER
|
|
| 20. |
S5010613
|
[4] |
WASHER
|
|
| 21. |
S0515253
|
[4] |
. BOLT
|
|
| 22. |
S5102703
|
[4] |
WASHER
|
|
| 23. |
2197-1413A
|
[1] |
PLATE;STOPPER
|
2197-1413B
|
| 23. |
2197-1413B
|
[1] |
BRACKET
|
|
| 24. |
S0515253
|
[2] |
. BOLT
|
|
| 25. |
S5102703
|
[2] |
WASHER
|
|
| 26. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 27. |
2480-1016
|
[1] |
CENTER JOINT
|
|
| 28. |
2440-9218
|
[1] |
CYLINDER ASS'Y
|
2440-9301A
|
| 28. |
2440-9301A
|
[1] |
CYLINDER;DOZER
|
|
| 28. |
2440-9301B
|
[1] |
CYLINDER;DOZER
|
2440-9301C
|
| 28. |
2440-9301C
|
[1] |
CYLINDER;DOZER
|
|
| 3. |
2123-2168
|
[1] |
PIN(L.H)
|
2123-2168A
|
| 3. |
2123-2168A
|
[1] |
PIN(L.H)
|
|
| 4. |
2123-2169
|
[1] |
PIN(R.H)
|
2123-2169A
|
| 4. |
2123-2169A
|
[1] |
PIN(R.H)
|
|
| 5. |
S6710102
|
[2] |
NIPPLE;GREASE
|
|
| 6. |
2123-2170
|
[2] |
PIN
|
2123-2170A
|
| 6. |
2123-2170A
|
[2] |
PIN
|
|
| 7. |
S5736071
|
[4] |
PIN;SPLIT
|
|
| 7. |
S5736051
|
[4] |
PIN;SPLIT
|
|
| 8. |
2251-1002B
|
[1] |
BATH;GREASE
|
|
| 9. |
2109-9063
|
[1] |
BEARING;SWING
|
41201-00007
|
| 9. |
|
[-] |
|
2109-9063A
|
| 9. |
2109-9063A
|
[1] |
BEARING;SWING
|
2109-9073
|
| 9. |
2109-9073
|
[1] |
BEARING;SWING
|
2109-9073A
|
| 9. |
2109-9073A
|
[1] |
BEARING;SWING
|
|
| 9A. |
180-00297D2
|
[1] |
SEAL
|
|
