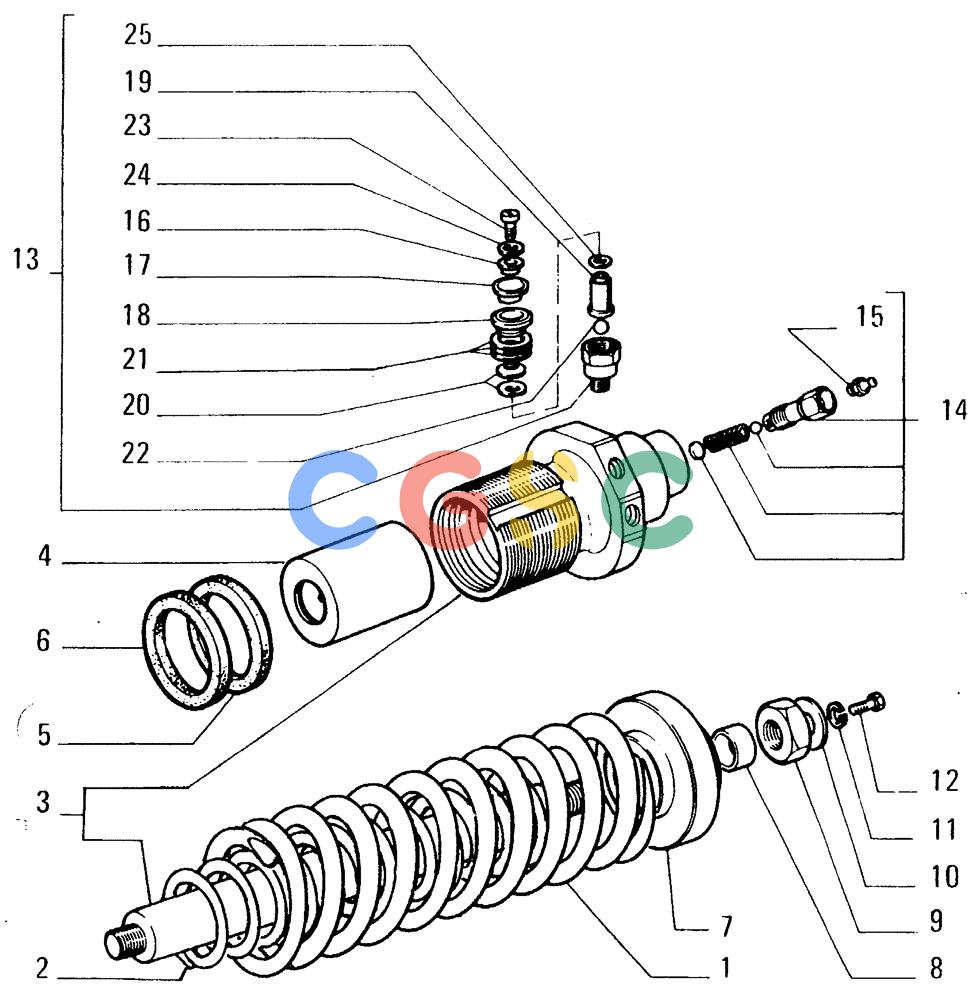

纽荷兰零件查询(FD14E) - CRAWLER DOZER (2.3455[004]) - TRACK IDLER-CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
841 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4951546 | [2] | SPRING | LEC |
| 2. | 76012378 | [2] | SPRING | LEC |
| 3. | 76010251 | [1] | CYLINDER | LEC- ASSEMBLY RIGHT |
| 3. | 76010253 | [1] | CYLINDER | LEC- ASSEMBLY LEFT |
| 4. | 76010257 | [2] | PISTON | LEC |
| 5. | 79065575 | [2] | SEAL,80mm ID x 100mm OD x 12mm Thk | LECSEAL |
| 6. | 79065577 | [2] | SEAL,80mm ID x 100.25mm OD x 10mm Thk | LECSEAL |
| 7. | 79033919 | [2] | DISC | LEC |
| 8. | 594692 | [2] | SHEET | LECTUBE |
| 9. | 587255 | [2] | NUT | LEC |
| 10. | 587256 | [2] | WASHER | LEC |
| 11. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 12. | 15970731 | [2] | BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd | LEC |
| 13. | 76009442 | [2] | HYDRAULIC VALVE | LECVALVE |
| 14. | 79043802 | [2] | HYDRAULIC VALVE | LECVALVE |
| 15. | 13407211 | [1] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 16. | 594634 | [1] | WASHER | LEC |
| 17. | 594633 | [1] | CAP | LECGUARD |
| 18. | 79002121 | [1] | PACKING NUT | LECCOVER |
| 19. | 594637 | [1] | PLUNGER | LECVALVE |
| 20. | 594638 | [8] | SPRING | LEC |
| 21. | 594640 | [1] | SHIM,0.1mm Thk | LEC |
| 21. | 79009581 | [1] | SHIM,0.2mm Thk | LEC |
| 21. | 79009582 | [1] | SHIM,0.5mm Thk | LEC |
| 22. | 20063470 | [1] | BALL | TTF7,938 Superseded by part number: 86642304 |
| 23. | 10389511 | [1] | SCREW,Sl Pan Hd, M5 x 14mm, Cl 5.8 | LEC Superseded by part number: 10389514 |
| 24. | 11195471 | [1] | LOCK WASHER | LECLOCKWASHER 5,1x1,1 Superseded by part number: 10569179 |
| 25. | 12638101 | [1] | WASHER,5.2mm ID x 14mm OD x 1mm Thk | BHB5,15x14 Superseded by part number: |
