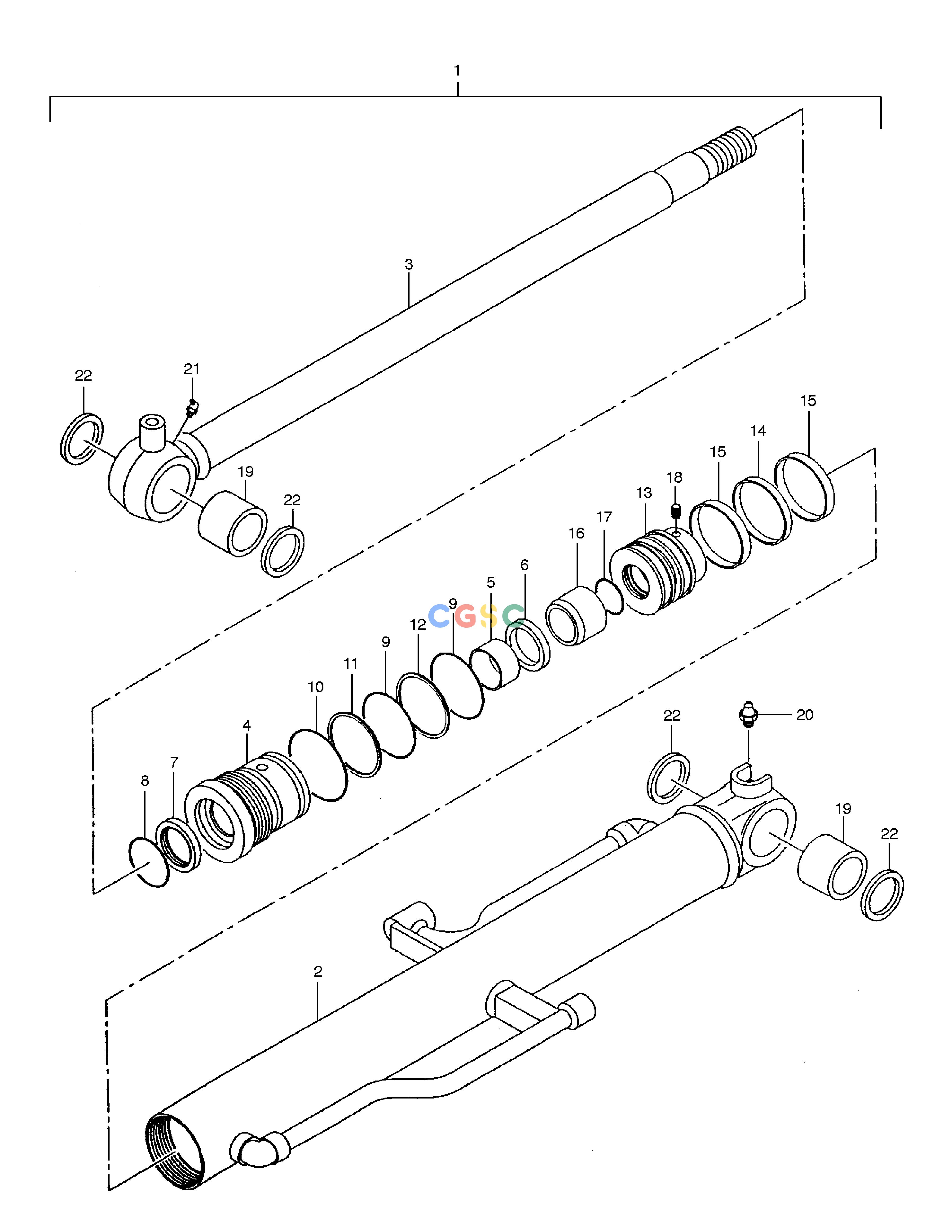

斗山零件查询BOOM CYLINDER SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
934 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9214KT
|
[1] |
SEAL KIT;ARM CYL.
|
|
| 1. |
2440-9214
|
[1] |
CYLINDER ASS'Y
|
2440-9297A
|
| 10. |
74011AG70X
|
[1] |
O-RING
|
|
| 11. |
7407T2G65X
|
[1] |
RING;BACK UP
|
|
| 12. |
7407T3G65X
|
[2] |
RING;BACK UP
|
|
| 13. |
K9700401
|
[1] |
PISTON
|
|
| 14. |
8BBH107040
|
[1] |
PACKING;PISTON
|
|
| 15. |
8BBH607020
|
[2] |
RING;WEAR
|
|
| 16. |
K9700404
|
[1] |
PLUNGER;CUSHION
|
|
| 17. |
74011BG35X
|
[1] |
O-RING
|
|
| 18. |
7177308120
|
[1] |
SCREW;SET
|
|
| 19. |
8Z07144400
|
[2] |
BUSH
|
|
| 2. |
K9700100
|
[1] |
CYLINDER TUBE ASS'Y
|
|
| 20. |
7575APT180
|
[1] |
NIPPLE;GREASE
|
|
| 21. |
7575CPT180
|
[1] |
NIPPLE;GREASE
|
|
| 22. |
8Z07145400
|
[4] |
SEAL;DUST
|
|
| 3. |
K9700200
|
[1] |
PISTON ROD ASS'Y
|
|
| 4. |
K9700301
|
[1] |
ROD COVER
|
|
| 5. |
8Z07177400
|
[1] |
BUSH
|
|
| 6. |
8BBH204010
|
[1] |
PACKING;ROD
|
|
| 7. |
8BBH404030
|
[1] |
SEAL;DUST
|
|
| 8. |
8Z07179590
|
[1] |
RING;SNAP
|
|
| 9. |
74011BG65X
|
[2] |
O-RING
|
|
