纽荷兰零件查询(FD14E) - CRAWLER DOZER (3.4350[001]) - EQUIPMENT PUMP (Jul 20 2009 9:46AM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
299 次

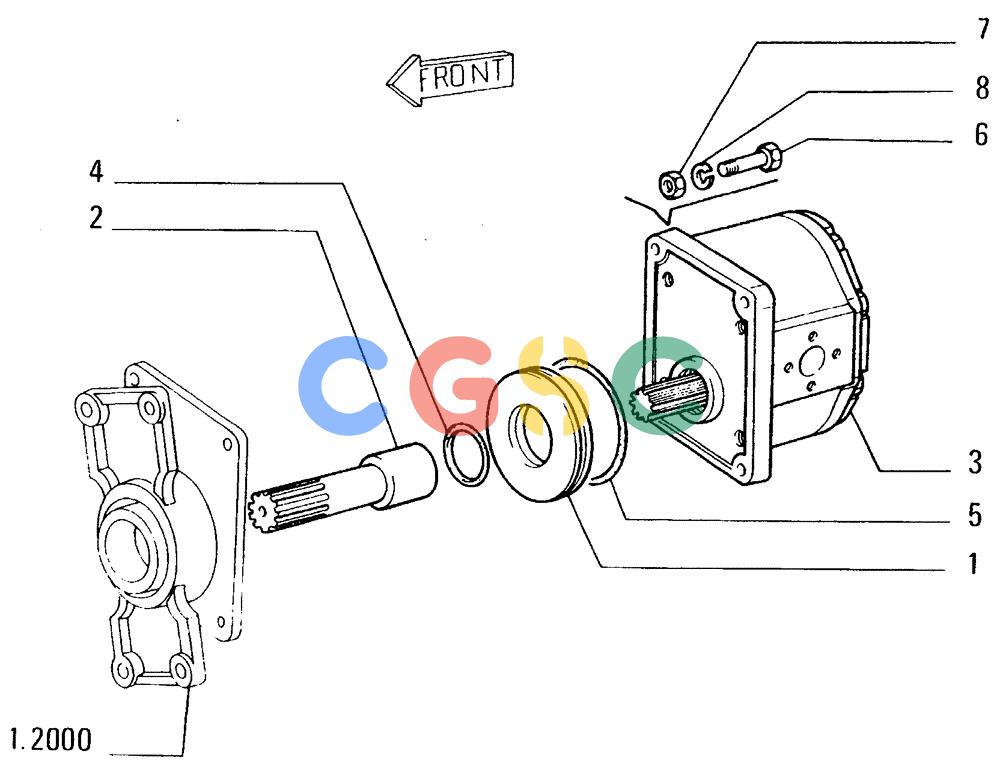

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79013746 | [1] | RING | LEC |
| 2. | 79005842 | [1] | SHAFT | LEC |
| 3. | 79058392 | [1] | HYDRAULIC PUMP | LECPUMP - ASSEMBLY SEE TAV, 2 |
| 4. | 14460280 | [1] | O-RING,63.17mm ID x 2.62" Width | MOD0-RING 2,62x63,17 Superseded by part number: 14460281 |
| 5. | 14461680 | [1] | O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro | BAS-158, 70 Duro, 4.737" ID x .103" Thk (120.32 x 2.62) Superseded by part number: 274336 |
| 6. | 15541034 | [4] | BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9 | LECSCREW 12x1,25x60 Superseded by part number: 14275134 |
| 7. | 16101521 | [4] | NUT,M12 x 1.25, Cl 10 | ZED12x1,25x10 Superseded by part number: |
| 8. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
